(90.108.AB[01]) - DECALS, APPEARANCE

Запчасти Case IH PATRIOT 2250 (90.108.AB[01]) - DECALS, APPEARANCE (90) - PLATFORM, CAB, BODYWORK AND DECALS

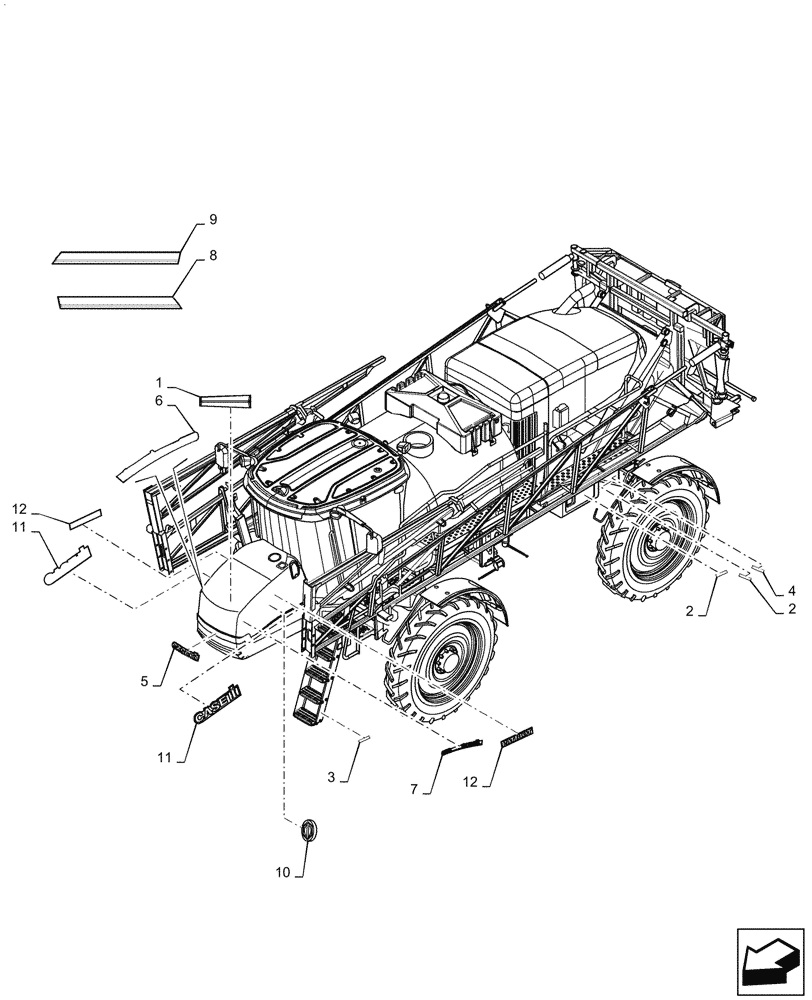

Схема запчастей Case IH PATRIOT 2250 - (90.108.AB[01]) - DECALS, APPEARANCE (90) - PLATFORM, CAB, BODYWORK AND DECALS
2
10
3
6
12
11
2
8
11
12
9
5
4
7
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

1968108C2

TRIM

Sight Hood

1шт.

2

311863A1

REFLECTOR

Retroreflective Red

3шт.

3

311864A1

REFLECTOR

Retroreflective Amber

8шт.

3

47520326

REFLECTOR

Retroreflective Amber Short

2шт.

4

311865A1

REFLECTOR

Fluorescent Orange

1шт.

5

87716230

EMBLEM

Case IH

1шт.

6

47736861

DECAL

RH, 2230, Front

1шт.

7

47736864

DECAL

LH, 2230, Front

1шт.

8

47379073

DECAL

LH, Rear

1шт.

9

47379072

DECAL

RH, Rear

1шт.

10

86625060

PUSH-ON NUT,Self, Threading, 1/4"

Push - On

2шт.

11

87558404

DECAL

Case IH Rear

2шт.

12

47459680

DECAL

Patriot

2шт.
