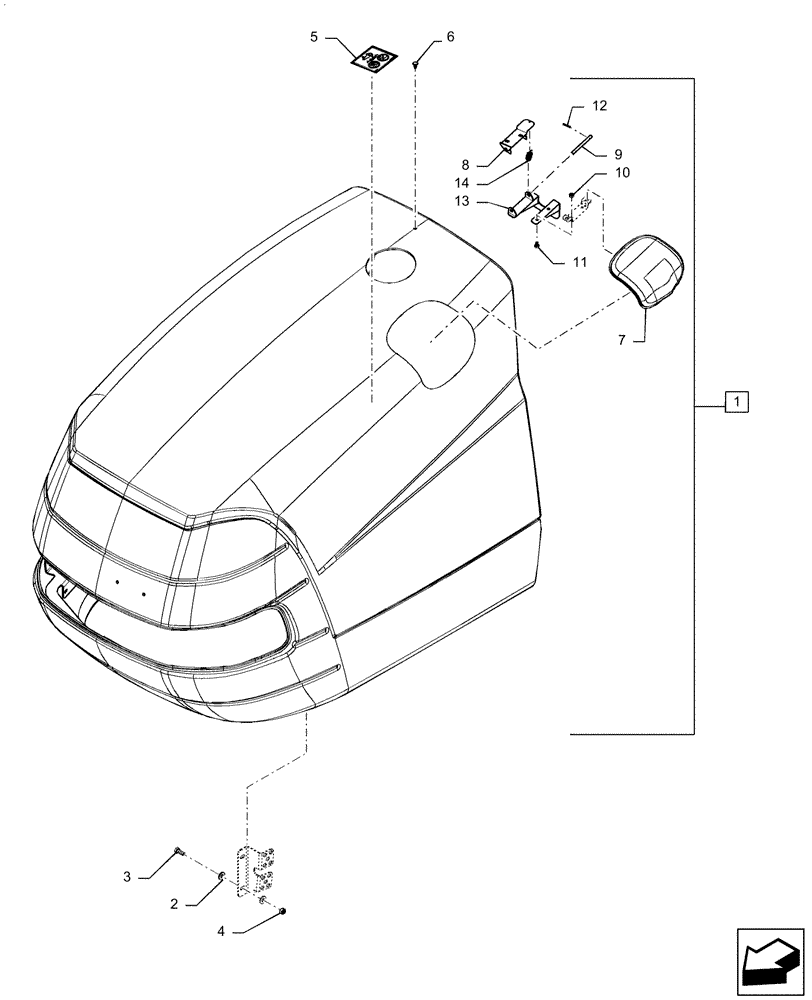

Запчасти Case IH PATRIOT 2250 (90.105.CB[01]) - FRONT HOOD (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84569498

HOOD

Complete, Incl 7 - 14

1шт.

2

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

16шт.

3

86980400

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

8шт.

4

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

8шт.

5

84284896

DECAL,DEF TANK identification label

DEF

1шт.

6

47858521

PLUG

Plastic, Hood Hole

1шт.

7

47958310

MOUNT

DEF Door

1шт.

8

47958310

MOUNT

DEF Door Hinge

1шт.

9

84407301

PIN

DEF Door Hinge

1шт.

10

86980513

NUT,Prev Torque, Hex, M6, 1mm Pitch, Cl 8, DOR

4шт.

11

86980358

BOLT,Hex, M6 - 1 x 12mm, Cl 8.8, DOR

4шт.

12

733-2520

COTTER PIN,M2.5 x 20

2шт.

13

47958309

MOUNT

DEF Door Hinge

1шт.

14

87283313

SPRING

Extension

1шт.
