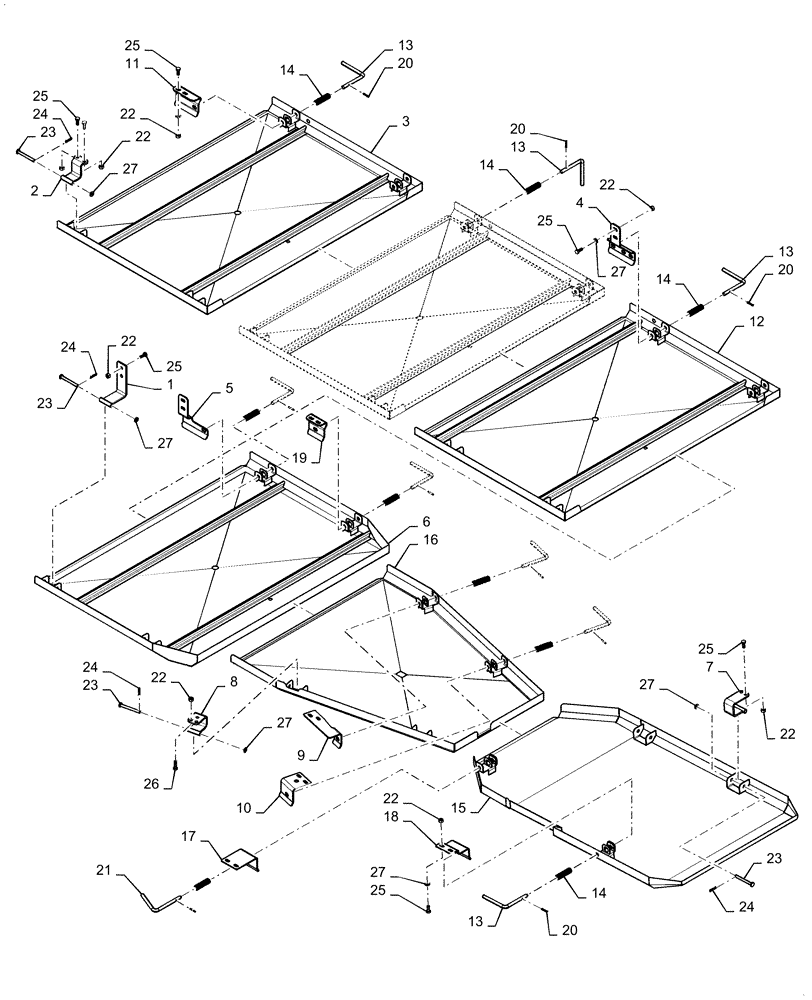

Запчасти Case IH PATRIOT 2250 (90.105.AB[01]) - PAN, BELLY (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47799908

HINGE

Mid

6шт.

2

47809711

HINGE

Corner

2шт.

3

47799891

PAN

Belly, Rear

2шт.

4

47809728

PLATE

Latch, Mid

5шт.

5

47809743

LATCH

Bracket, Mounting

1шт.

6

47810561

PAN

Belly, Front

1шт.

7

47810428

HINGE

Front

3шт.

8

47810488

HINGE

Belly, Pan

1шт.

9

47810038

LATCH

Bracket, Mounting

1шт.

10

47809152

LATCH

Front

1шт.

11

47809858

LATCH

Bracket, Mounting

1шт.

12

47811152

PAN

Belly, Mid

1шт.

13

47799999

HANDLE

Latch, Belly Pan

11шт.

14

47800001

SPRING

Compression, Belly Pan

12шт.

15

47811213

PAN

Belly, Front

1шт.

16

47811116

PAN

Belly, Taper

1шт.

17

47809154

LATCH

Front

1шт.

18

47809155

PLATE

Front

1шт.

19

47809860

LATCH

Bracket, Mounting

1шт.

20

47800003

PIN

Coiled, Belly Pan

12шт.

21

47810534

HANDLE

Latch, Belly Pan

1шт.

22

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

48шт.

23

87661862

PIN,10mm OD x 95mm L

12шт.

24

86624096

COTTER PIN,Int, 3/16 x .080"

12шт.

25

86980400

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

46шт.

26

86980402

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

2шт.

27

87529298

WASHER,11mm ID x 21mm OD x 2mm Thk

36шт.
