(90.100.AU[04]) - ENGINE HOOD MOUNTING PARTS

Запчасти Case IH PATRIOT 2250 (90.100.AU[04]) - ENGINE HOOD MOUNTING PARTS (90) - PLATFORM, CAB, BODYWORK AND DECALS

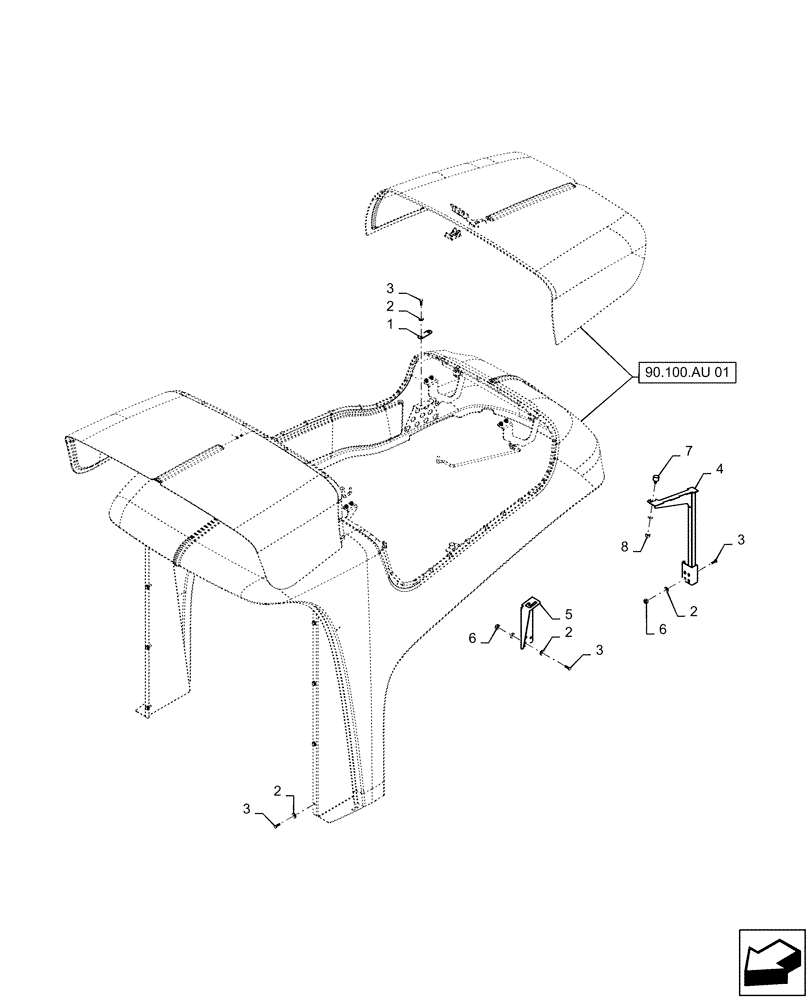

Схема запчастей Case IH PATRIOT 2250 - (90.100.AU[04]) - ENGINE HOOD MOUNTING PARTS (90) - PLATFORM, CAB, BODYWORK AND DECALS
3
3
2
4
1
6
2
5
2
3
7
6
3
2
8
90.100.au 01
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47535956

PLATE

Right Rear, Engine Mount

2шт.

2

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

27шт.

3

86980380

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

13шт.

4

47637096

BRACKET

Support, Engine Hood Support

1шт.

5

47383107

BRACKET

Support, Front Prop Rod

1шт.

6

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

7шт.

7

BN310002

BUMPER

1" OD x 1" High

1шт.

8

BN55361

NUT,5/16"-18, Nylon, Stainless

1шт.
