Запчасти Case IH PATRIOT 2250 (90.100.AU[01]) - ENGINE HOOD ASSY (90) - PLATFORM, CAB, BODYWORK AND DECALS

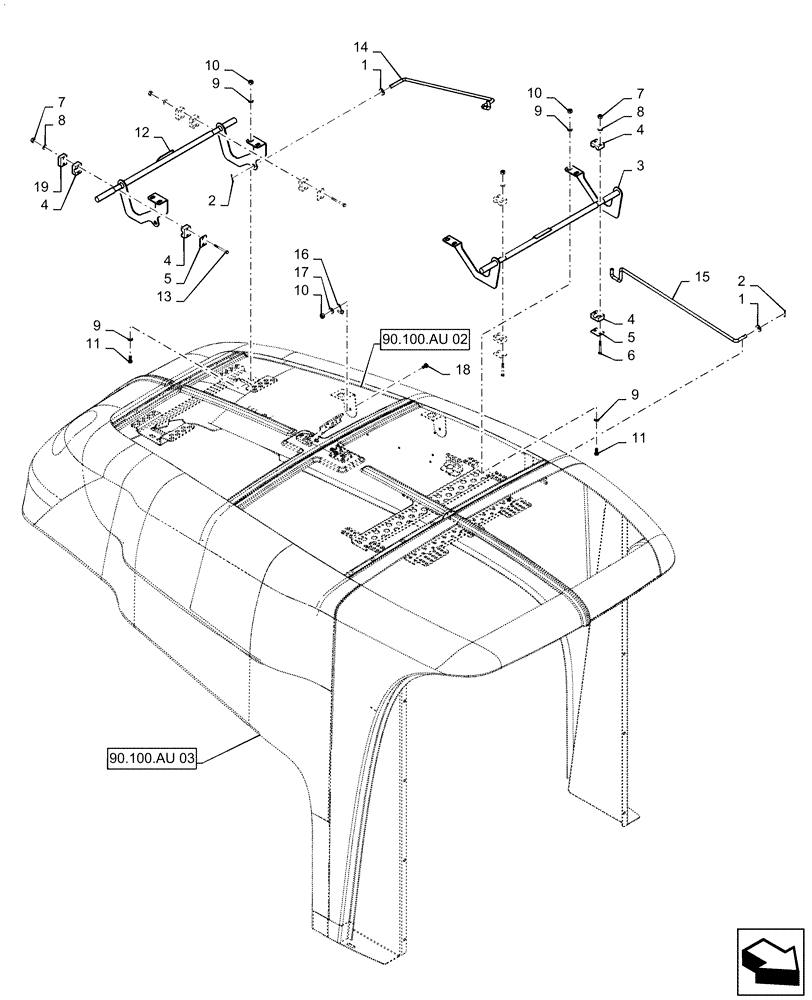

Схема запчастей Case IH PATRIOT 2250 - (90.100.AU[01]) - ENGINE HOOD ASSY (90) - PLATFORM, CAB, BODYWORK AND DECALS
17
7
90.100.au 02
11
4
7
14
8
2
9
10
4
3
9
4
1
8
10
4
90.100.au 03
5
15
11
16
6
2
1
9
10
5
13
18
9
19
12

Артикул

Название

Примечание

Количество

1

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

2шт.

2

733-2520

COTTER PIN,M2.5 x 20

2шт.

3

47373793

LINKAGE

Front

1шт.

4

BN315164

CLAMP

Pair Single, 5/8" Tube

4шт.

5

BN309485

PLATE

Top, Single

4шт.

6

86980366

BOLT,Hex, M6 x 50mm, Cl 8.8

DOR

4шт.

7

86980513

NUT,Prev Torque, Hex, M6, 1mm Pitch, Cl 8, DOR

8шт.

8

87529314

WASHER,6.6mm ID x 12.5mm OD x 2mm Thk

8шт.

9

87529315

WASHER,9mm ID x 17mm OD x 2mm Thk

16шт.

10

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

10шт.

11

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

8шт.

12

47373796

LINKAGE

Rear

1шт.

13

86980367

BOLT,Hex, M6 x 60mm, Cl 8.8

DOR

4шт.

14

47381931

ROD

Prop, Rear Access Cover

1шт.

15

47381933

ROD

Prop, Front Access Cover

1шт.

16

87016870

CLAMP,9.5mm, Coat, 8.7mm Bolt Hole, J Type

2шт.

17

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

2шт.

18

86980378

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

2шт.

19

47426667

SPACER

Clamp, Hinge

2шт.

Выбрано товаров: 19
