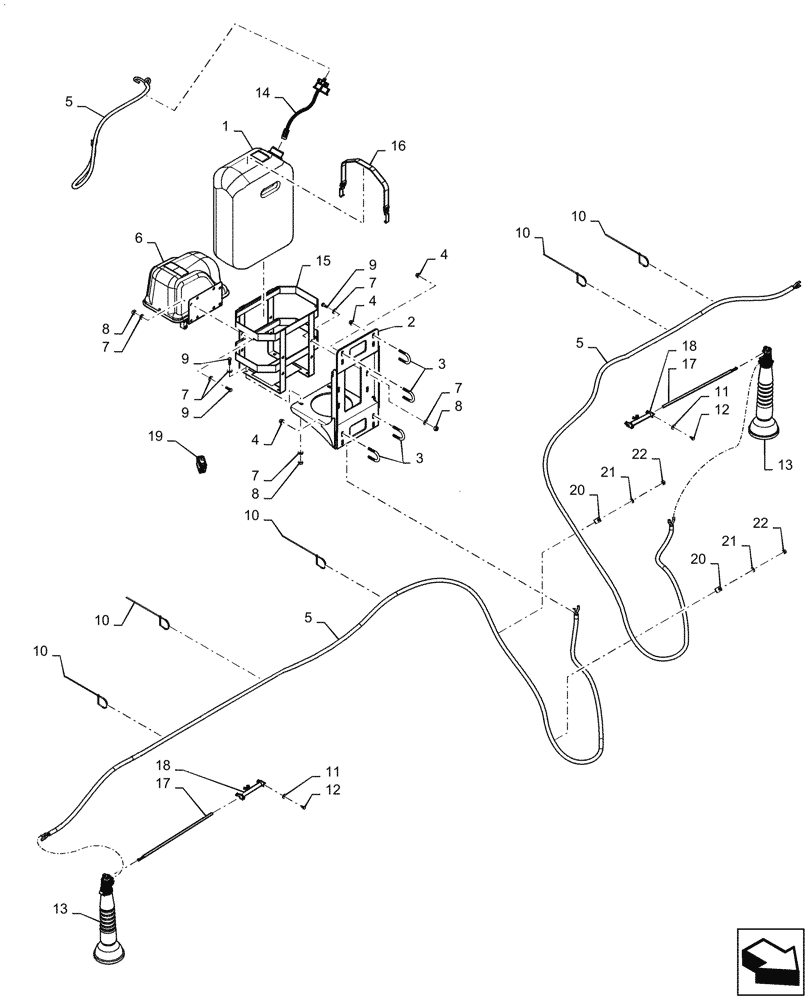

Запчасти Case IH PATRIOT 2250 (78.120.AG[01]) - FOAM MARKER (78) - SPRAYING

1

84420731

TANK

Foaming Liquid

1шт.

2

47481960

MOUNT

Tank

1шт.

3

87302138

U-BOLT

3/8" - 16 x 1-3/8" x 2-1/4"

4шт.

4

86521609

FLANGE NUT,Flg, 3/8"-16

8шт.

5

84420753

HOSE

Air / Liquid

2шт.

6

47865119

AIR COMPRESSOR

Valve Unit with Solenoid

1шт.

7

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

24шт.

8

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

12шт.

9

86980380

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

12шт.

10

BN570007

STRAP

14-1/2"

43шт.

11

87529302

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

4шт.

12

86980358

BOLT,Hex, M6 - 1 x 12mm, Cl 8.8, DOR

4шт.

13

47575902

NOZZLE

Foam

2шт.

14

84420721

CAP

W/ Pressure Relief

1шт.

15

84423427

BASKET

Foam Tank

1шт.

16

47574152

STRAP

Tank, Foam Marker

1шт.

17

47576816

ROD

Adjustment

2шт.

18

47575903

MOUNT

Drop, W/ Hardware

1шт.

19

47783301

ROCKER SWITCH

Fence Row

1шт.

20

9827902

CLAMP,25.4mm, Coat, 10.3mm Bolt Hole, P Type

2шт.

21

87529236

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

2шт.

22

87698779

NUT

M6 Class, 10 DOR

2шт.
