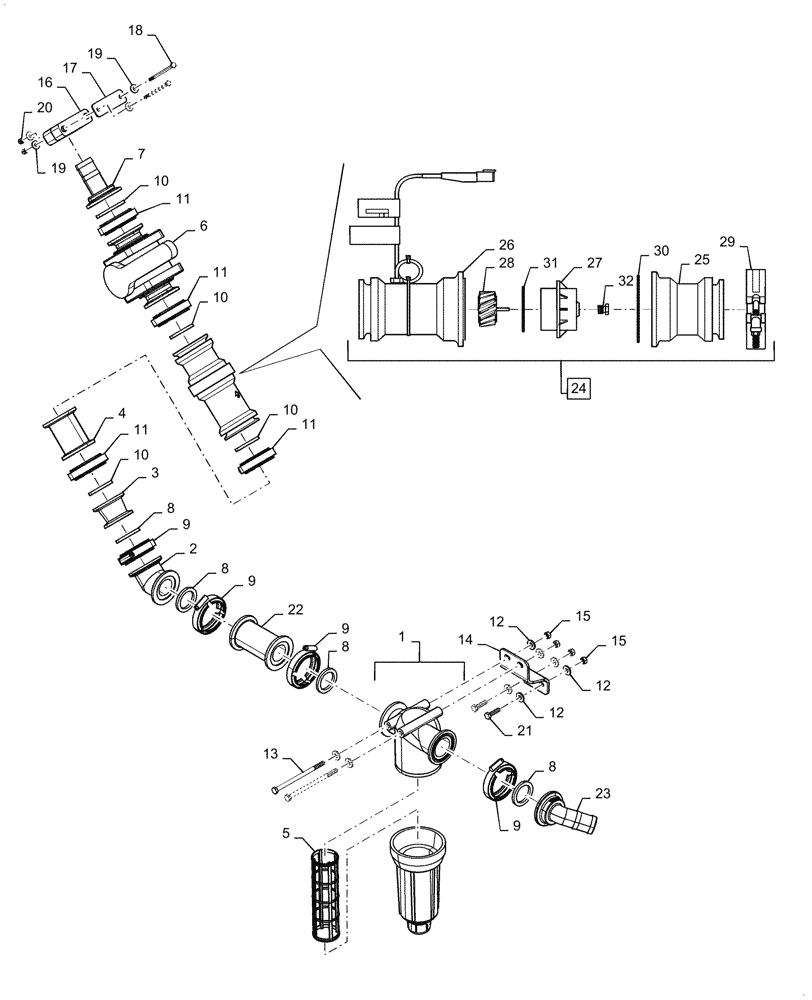

Запчасти Case IH PATRIOT 2250 (78.111.AE[02]) - RFM 100 FLOWMETER WITH 3" PLUMBING (78) - SPRAYING

1

87265489

FILTER STRAINER

2"

1шт.

2

87265590

COUPLING,2" x 2" 45 Degree Flange

45° Flowmeter Flange

1шт.

3

BN322100

REDUCER,2" Full Port x 2" Reducer Flange

1шт.

4

BN325292

COUPLING

Straight

1шт.

5

87268604

SCREEN,16 Mesh, SST, Gray

1шт.

6

87268158

VALVE

2" Throttle

1шт.

7

BN322277

FITTING,2" Full Port Flange x 1-1/2" Hose Barb

Straight

1шт.

8

BN303204

GASKET,1-1/2" EPDM Gasket

4шт.

9

BN303199

CLAMP,2" Flange

4шт.

10

BN313772

GASKET,2" Full Port, EPDM

4шт.

11

BN313773

CLAMP,2" Full Port

4шт.

12

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

8шт.

13

86980394

BOLT,Hex, M8 -1.25 x 140mm, Cl 8.8, DOR

2шт.

14

47860941

MOUNT

Strainer

1шт.

15

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

4шт.

16

87480824

CLAMP

Double

1шт.

17

409811

COVER

Clamp Plate

1шт.

18

87341834

BOLT,Hex, M6 - 1 x 100mm, Cl 8.8, DOR

2шт.

19

87529302

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

4шт.

20

86980513

NUT,Prev Torque, Hex, M6, 1mm Pitch, Cl 8, DOR

2шт.

21

86980381

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8

2шт.

22

BN306907

FITTING,2" Flange x 2" Flange, Poly

Straight

1шт.

23

47690895

FITTING,2" Flange x 1-1/2" 45 Degree Hose Barb Elbow

45° Flowmeter Flange

1шт.

24

87265851

METER

Flow, RFM100, Incl 25 - 32

1шт.

25

87521164

HOUSING

Hub, Inlet

1шт.

26

87521159

SENSOR

Housing Assembly

1шт.

27

87521201

BEARING ASSY

Inlet Hub

1шт.

28

87521193

TURBINE

RFM100

1шт.

29

87521190

CLAMP

V-Band Retainer

1шт.

30

87521192

O-RING

Large, Flowmeter

1шт.

31

87521166

O-RING

Medium, Flowmeter

1шт.

32

87521168

BEARING ASSY

Stud, Polypropylene

1шт.
