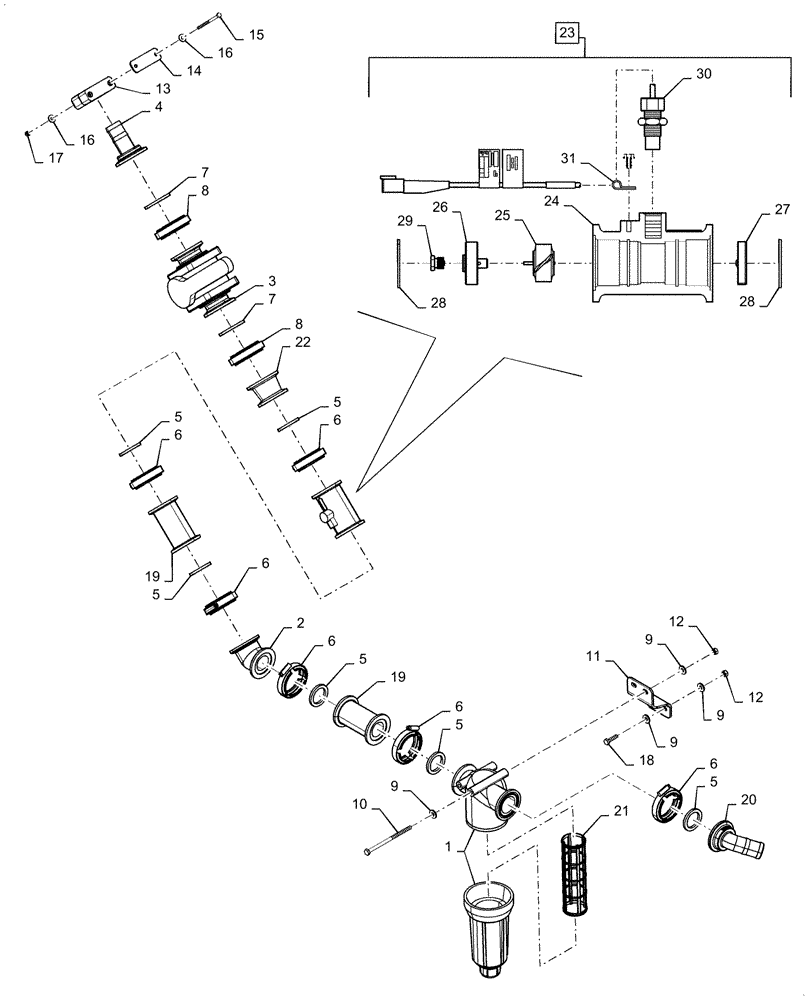

Запчасти Case IH PATRIOT 2250 (78.111.AE[01]) - RFM 60, FLOWMETER WITH 2" PLUMBING (78) - SPRAYING

1

87265489

FILTER STRAINER

2"

1шт.

2

87265590

COUPLING,2" x 2" 45 Degree Flange

45° Flowmeter Flange

1шт.

3

87268158

VALVE

2" Throttle

1шт.

4

BN322277

FITTING,2" Full Port Flange x 1-1/2" Hose Barb

Straight

1шт.

5

BN303204

GASKET,1-1/2" EPDM Gasket

6шт.

6

BN303199

CLAMP,2" Flange

6шт.

7

BN313772

GASKET,2" Full Port, EPDM

2шт.

8

BN313773

CLAMP,2" Full Port

2шт.

9

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

8шт.

10

86980394

BOLT,Hex, M8 -1.25 x 140mm, Cl 8.8, DOR

2шт.

11

47860941

MOUNT

Strainer

1шт.

12

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

4шт.

13

87480824

CLAMP

Double

1шт.

14

409811

COVER

Clamp Plate

1шт.

15

87341834

BOLT,Hex, M6 - 1 x 100mm, Cl 8.8, DOR

2шт.

16

87529302

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

4шт.

17

86980513

NUT,Prev Torque, Hex, M6, 1mm Pitch, Cl 8, DOR

2шт.

18

86980381

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8

2шт.

19

BN306907

FITTING,2" Flange x 2" Flange, Poly

2шт.

20

47690895

FITTING,2" Flange x 1-1/2" 45 Degree Hose Barb Elbow

45°

1шт.

21

87268604

SCREEN,16 Mesh, SST, Gray

1шт.

22

BN322100

REDUCER,2" Full Port x 2" Reducer Flange

1шт.

23

87271267

MEASURING INSTRUMENT

Assy, Flowmeter, RFM 60, Incl 24 - 31

1шт.

24

87515995

BODY

Flowmeter

1шт.

25

87515996

MAGNET

Assy, Rotor

1шт.

26

87515998

BEARING ASSY

Hub, Upstream

1шт.

27

87516000

HUB

Assy, Downstream

1шт.

28

87516001

RING

Retaining, Internal

2шт.

29

87516002

BEARING

Stud, W/Flat Bearing

1шт.

30

87516007

SENSOR

Flowmeter

1шт.

31

87516003

WIRE CLAMP

Cable

1шт.
