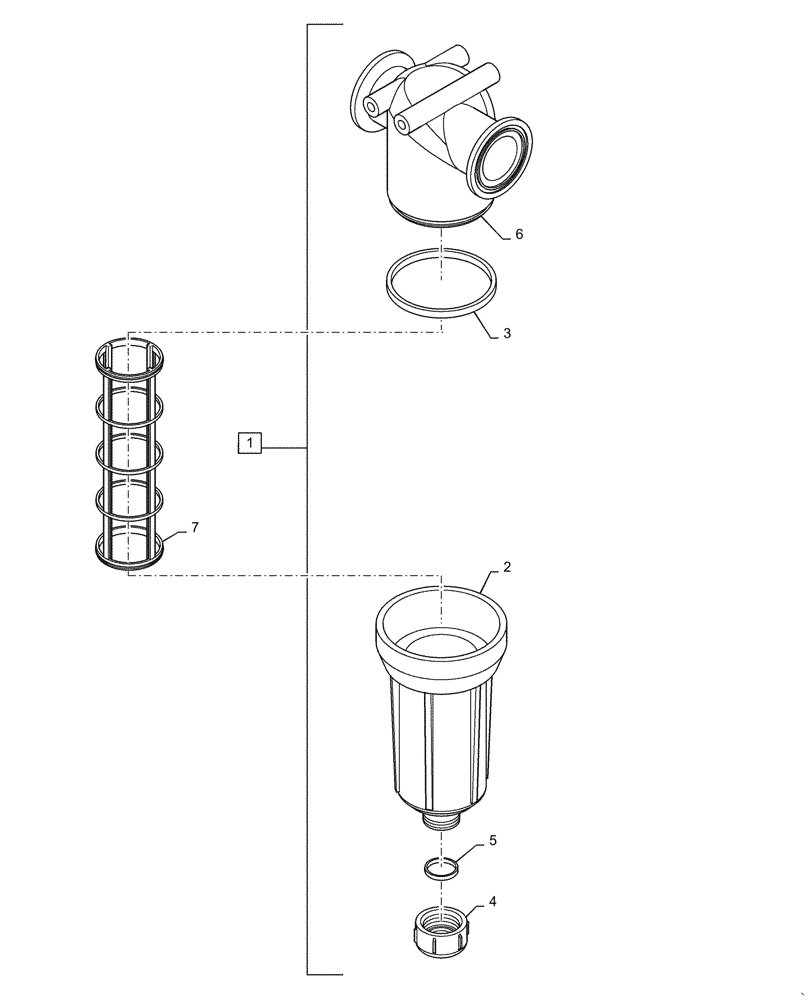

Запчасти Case IH PATRIOT 2250 (78.110.AP[01]) - BOOM STRAINER FILTER (78) - SPRAYING

1

87265489

FILTER STRAINER

2" Flange, Incl 2 - 6

1шт.

2

87268606

PAN

Bowl, Gray

1шт.

3

87268605

GASKET

EPDM, Bowl

1шт.

4

87265585

COVER

Cap, 1" NPT, without Ring Groove

1шт.

5

87270666

GASKET

Gasket, EPDM Cap

1шт.

6

87268603

HEAD

Strainer

1шт.

7

87268604

SCREEN,16 Mesh, SST, Gray

1шт.

7

84294060

FILTER SCREEN,30 Mesh

1шт.

7

87265491

SCREEN,50 Mesh, SST, Red

1шт.

7

87265492

SCREEN,80 Mesh, SST, Blue

Used On Booms with Aim Command

1шт.
