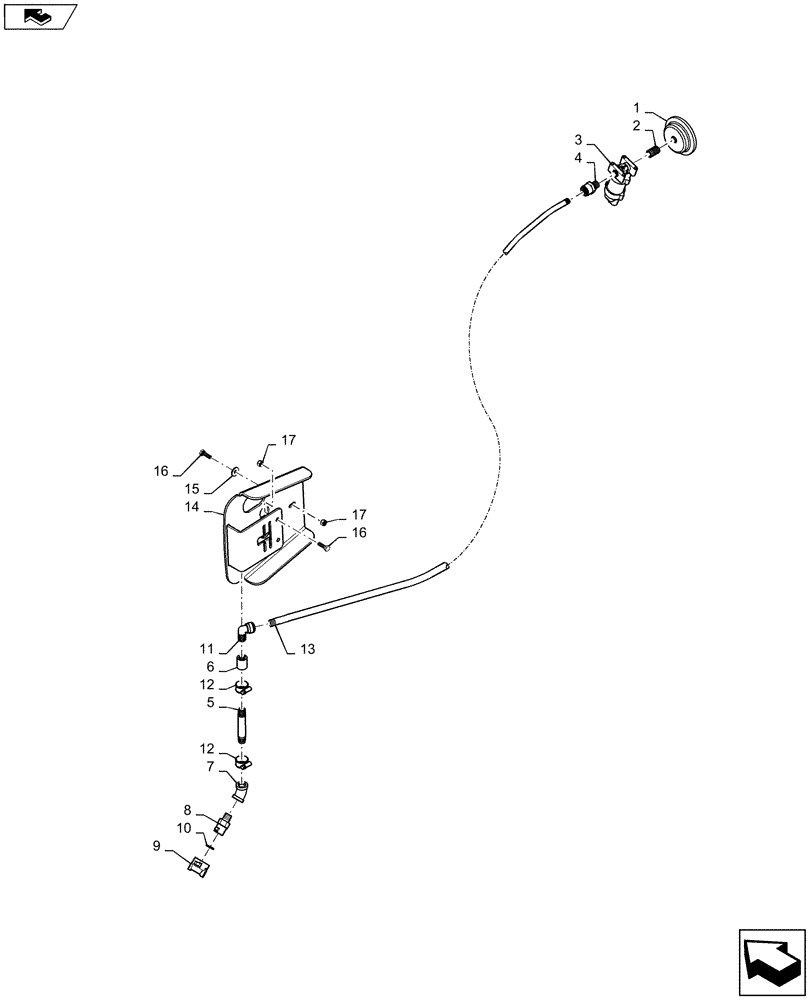

Запчасти Case IH PATRIOT 2250 (78.110.AN[01]) - FENCE ROW PLUMBING AND NOZZLE (78) - SPRAYING

1

87265461

PLUG

2" Flange x 1/4" FPT, Poly

1шт.

2

86986808

NIPPLE

1/4" Short, Poly

1шт.

3

343778A1

SOLENOID

1/4"

1шт.

4

BN2399403

ADAPTER

Tube

1шт.

5

87266873

NIPPLE

Pipe, 1/4" NPT x 3", SST

1шт.

6

BN73015

COUPLING

1/4" NPT, Full, SST

1шт.

7

84235806

PIPE FITTING

45° 1/4" - 18 FNPT, SST

1шт.

8

84223253

ADAPTER

Nozzle, 1/4" MPT, Poly

1шт.

9

BN74619

CAP

W/ Gasket

1шт.

10

BN69558

PLUG

SST

1шт.

11

BN2399411

ADAPTER

90° Tube

1шт.

12

BN324022

HOSE CLAMP

#8, SST

2шт.

13

86986175

TUBE,0.375" DIA x 200" L

1шт.

14

84406418

GUARD

Tip

1шт.

15

87529302

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

DOR

1шт.

16

86980360

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

3шт.

17

86980513

NUT,Prev Torque, Hex, M6, 1mm Pitch, Cl 8, DOR

3шт.
