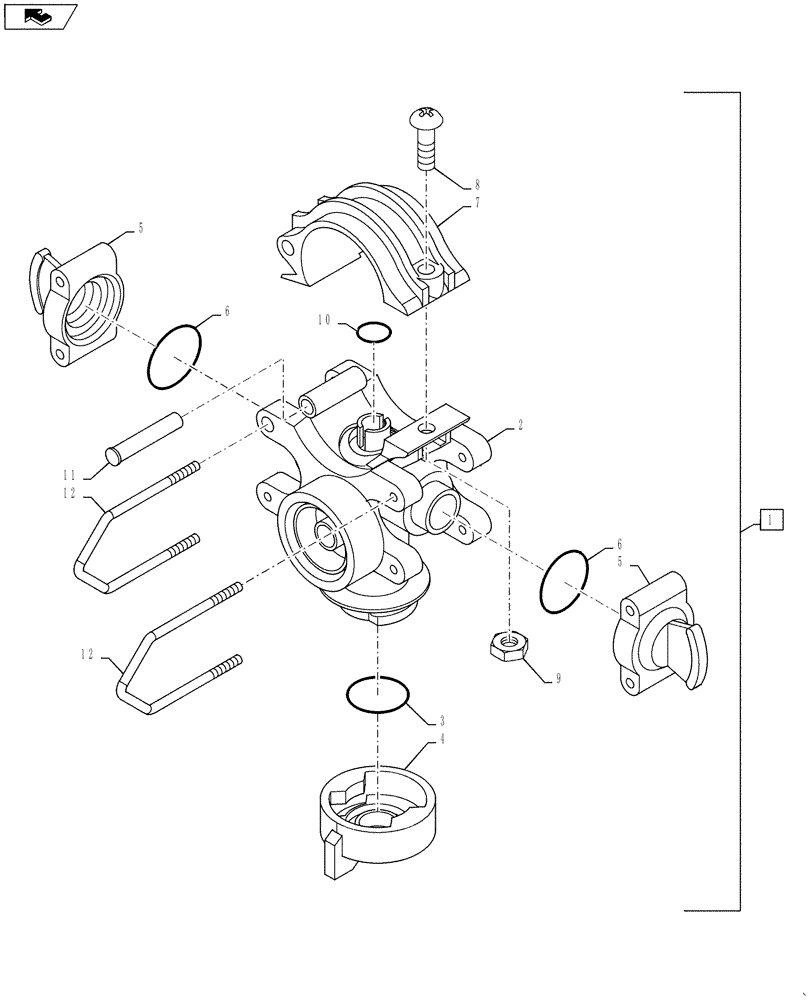

Запчасти Case IH PATRIOT 2250 (78.110.AM[01]) - WILGER INTEGRATED SADDLE NOZZLE (78) - SPRAYING

1

84484760

NOZZLE

Wilger Integrated Saddle Nozzle, Complete, Incl 2 - 12

1шт.

2

84497843

SADDLE,1" Pipe, 3/8" Inlet

CRII Hinged Saddle Body

1шт.

3

8408

O-RING,13 mm x 3 mm

Nozzle Seal Combo-Jet

1шт.

4

84244013

PLUG,Plug,Cap-Black,w/ O-ring

Cap Plug, Combo-Jet

1шт.

5

87718926

PLUG,Adapter

Adapter, Combo-Clip and Plug

2шт.

6

84153115

O-RING,0.484" ID x 0.139" Width

Buna N, #206

2шт.

7

84525946

CLAMP,1"

Hinged Saddle Nozzle

1шт.

8

84497871

SCREW,#10-24x1/2 SS

#10 - 24 x 5/8" SST

1шт.

9

84542360

NUT

#10 - 24, SST

1шт.

10

236535

O-RING,0.103" Thk x 0.362" ID, -110, Cl 6, 90 Duro

Buna N, #110

1шт.

11

84497832

PIN,#10 X 5/8" Philips

Saddle Hinge Pin

1шт.

12

84153117

LOCK,U-Clip 302SS

Pin

2шт.
