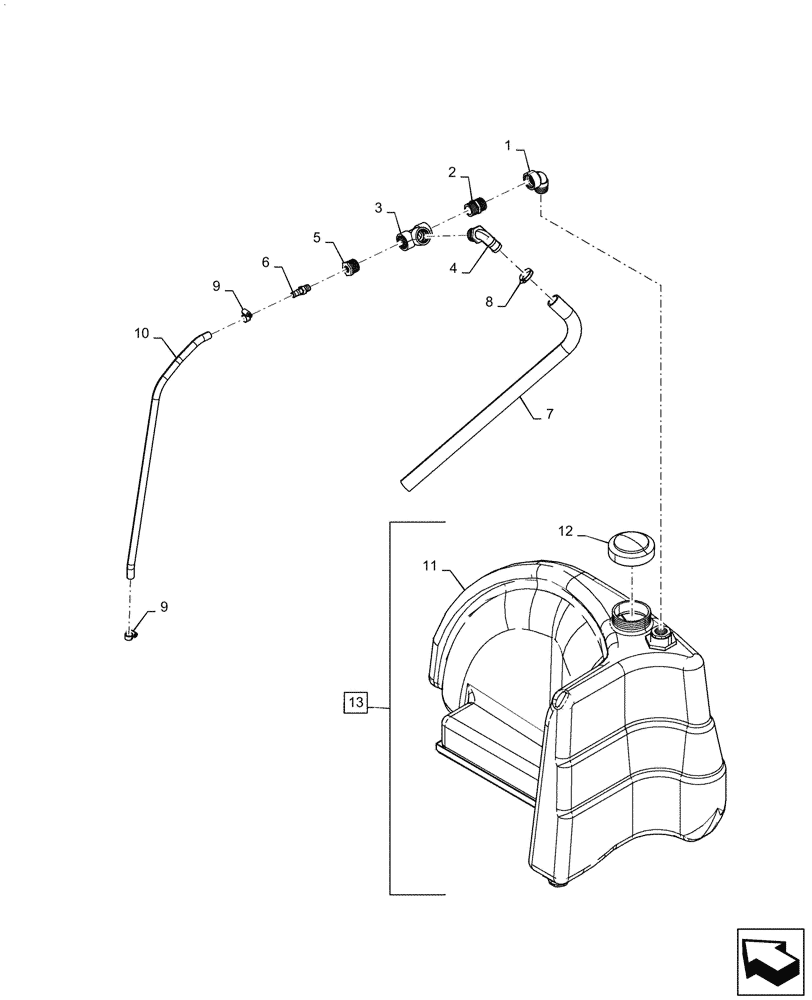

Запчасти Case IH PATRIOT 2250 (78.110.AH[06]) - RINSE TANK, ASSY (78) - SPRAYING

1

BN73730

ELBOW,1-1/2", Poly

1шт.

2

BN73715

NIPPLE,1-1/2" Short Poly Nipple

1шт.

3

BN73714

TEE,1-1/2" Female NPT x 1-1/2" Female NPT x 1-1/2" Female NPT, Poly

1шт.

4

BN73723

ELBOW,90 Degree Elbow, 1-1/2" Male NPT x 1-1/2" Hose Barb, Poly

1шт.

5

BN73716

BUSHING,1-1/2" Male NPT x 3/4" Female NPT, Poly

1шт.

6

BN73561

FITTING

3/4" NPT x 3/4" HB

1шт.

7

84310322

HOSE,38.1mm ID x 1023.1mm L

Tank Rinse

1шт.

8

BN310448

HOSE CLAMP

#28, SST

1шт.

9

87487834

CLAMP,0.81" - 1.5"

2шт.

10

BN319035

HOSE,0.75" ID x 46.00"

1шт.

11

84395118

TANK

Rinse, RH, 74 Gal, 280 L

1шт.

12

BN314276

COVER

Cap, Tank

1шт.

13

84288347

TANK

Assy, Incl 11, 12

1шт.
