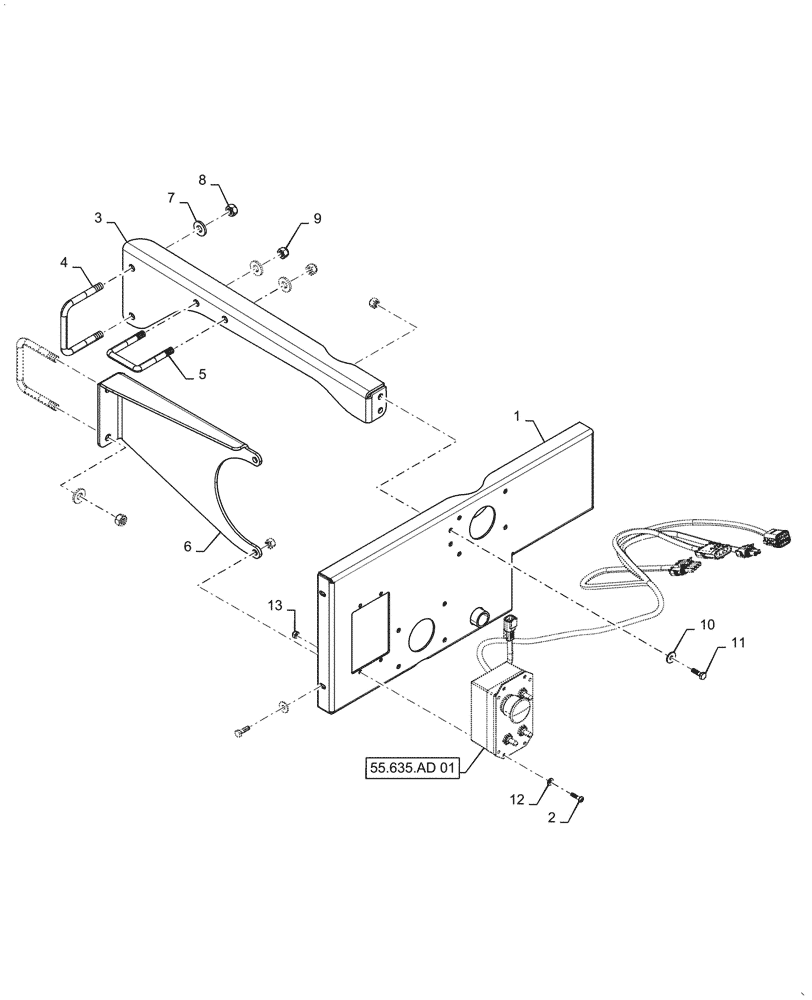

Запчасти Case IH PATRIOT 2250 (78.110.AH[04]) - FILL STATION MOUNTING PARTS (78) - SPRAYING

1

47721839

PANEL

OP Station

1шт.

2

BN311631

BOLT,#10 - 24 x 3/4", SST

4шт.

3

47658444

MOUNT

OP Station, Rear

1шт.

4

84291458

U-BOLT

3"

2шт.

5

BN319919

U-BOLT

2" x 3/8"

1шт.

6

47658447

MOUNT

OP Station, Front

1шт.

7

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

6шт.

8

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

4шт.

9

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

2шт.

10

87529302

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

4шт.

11

86980360

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

4шт.

12

BN310265

WASHER

M10, SST

4шт.

13

BN310266

BHD LOCK NUT,#10-24, Nylon, Stainless Steel

4шт.
