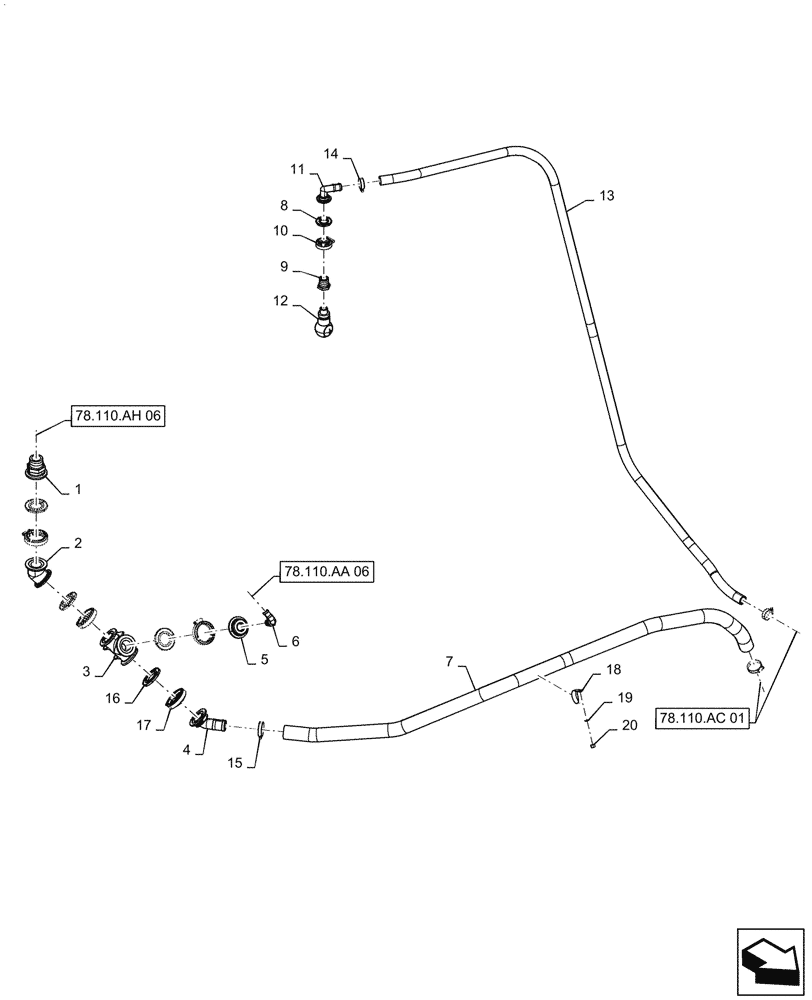

Запчасти Case IH PATRIOT 2250 (78.110.AH[03]) - RINSE SYSTEM PLUMBING, ASN YGT042518 (78) - SPRAYING

1

BN303190

FITTING,2" Flange x 1-1/2" NPT, Poly

1шт.

2

87265590

COUPLING,2" x 2" 45 Degree Flange

2" Flange, 45°

1шт.

3

BN303196

TEE,2" Flange x 2" Flange x 2" Flange, Poly

1шт.

4

47690895

FITTING,2" Flange x 1-1/2" 45 Degree Hose Barb Elbow

2" Flange, x 1 1/2" HB, 45°

1шт.

5

344407A1

PLUG,2" Flange Plug with 3/4" FPT

2" Flange x 3/4" NPT, Tee

1шт.

6

BN73562

FITTING,3/4" Male Thread x 3/4" 90 Degree Hose Barb

1шт.

7

87270850

HOSE

1 1/2" EPDM, Bottom of Rinse Tank, to Operators Station

1шт.

8

47888704

GASKET,28mm ID x 52mm OD x 5.6mm Thk

1" Flange, EPDM

1шт.

9

BN53665

BUSHING

1" x 3/4", Reducer

1шт.

10

BN303203

CLAMP,1" Flange

1" Flange

1шт.

11

BN303194

ELBOW,90 Degree Elbow, 1" Flange x 1" Hose Barb, Poly

1шт.

12

343509A1

JET

Nozzle, Rinse, W/ Adapter

1шт.

13

BN53479

HOSE,1.00" ID BULK

200' Roll, Operators Station, to Rinse Ball in Product Tank

1шт.

14

BN310447

HOSE CLAMP

#20, SST

2шт.

15

BN310448

HOSE CLAMP

#28, SST

2шт.

16

47888705

GASKET

2" Flange, EPDM

4шт.

17

BN303199

CLAMP,2" Flange

4шт.

18

84265306

CLAMP,47.6mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

19

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

20

412250

NUT,M8 x 1.25, Cl 8

1шт.
