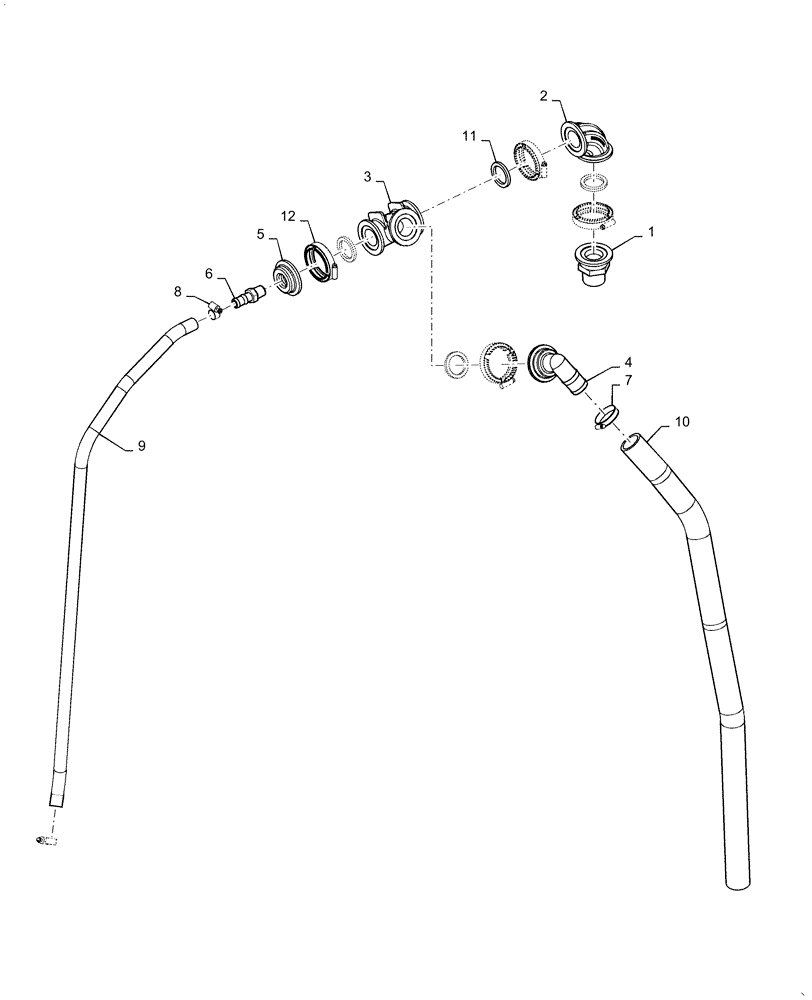

Запчасти Case IH PATRIOT 2250 (78.110.AH[02]) - RINSE TANK, SIGHT GAUGE (78) - SPRAYING

1

BN303190

FITTING,2" Flange x 1-1/2" NPT, Poly

Tank

1шт.

2

47776943

FITTING,2" Full Port Flange x Flange Sweep

90° Flange Elbow

1шт.

3

BN303196

TEE,2" Flange x 2" Flange x 2" Flange, Poly

1шт.

4

BN304321

FITTING,2" Flange x 1-1/2" 90 Degree Hose Barb Elbow

2" Flange x 1 1/2" Hose Barb

1шт.

5

344407A1

PLUG,2" Flange Plug with 3/4" FPT

Reducer, 2" Flange x 3/4" NPT

1шт.

6

BN73561

FITTING

Barb 3/4" NPT x 3/4" HB

1шт.

7

BN310448

HOSE CLAMP

#28, SST

1шт.

8

87487834

CLAMP,0.81" - 1.5"

Hose, #16, SST

2шт.

9

BN319035

HOSE,0.75" ID x 46.00"

Sight Gauge

1шт.

10

84310322

HOSE,38.1mm ID x 1023.1mm L

EPDM, Vent

1шт.

11

BN303204

GASKET,1-1/2" EPDM Gasket

2", EPDM

4шт.

12

BN303199

CLAMP,2" Flange

4шт.
