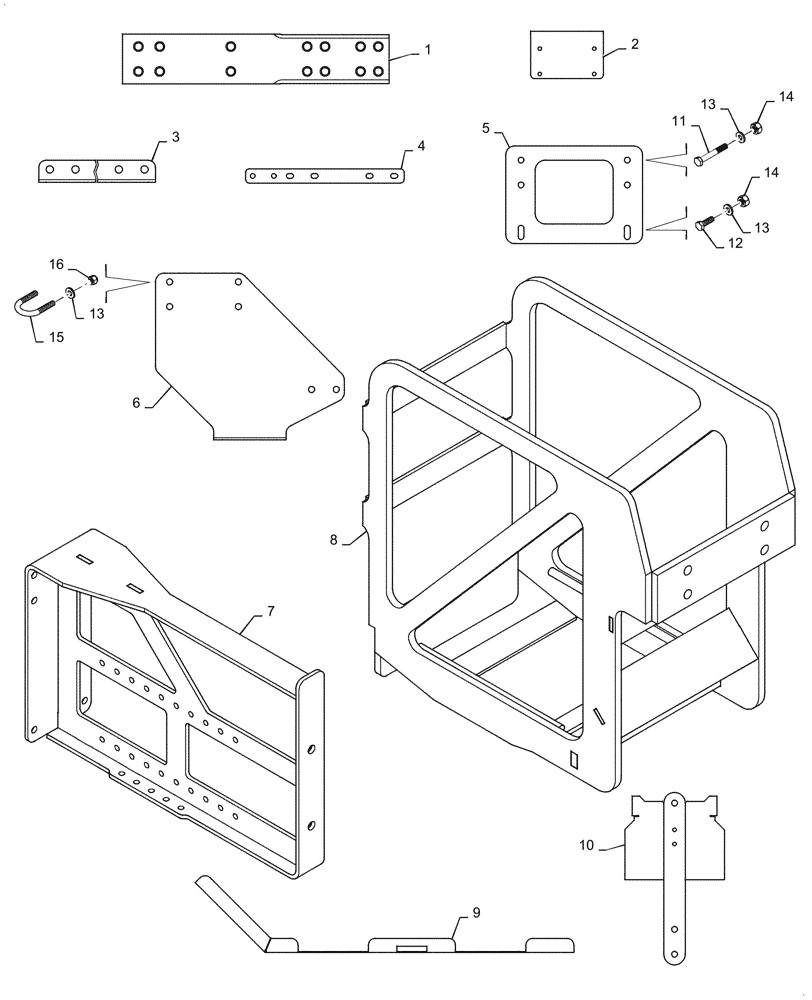

Запчасти Case IH PATRIOT 2250 (78.110.AG[11]) - DIRECT INJECTION, BRACKETS (78) - SPRAYING

1

47839142

BRACKET

Upper Support Arm

2шт.

2

47839141

PLATE

Hole Placement Template

1шт.

3

47839144

ANGLE

Fastener Plate

3шт.

4

47839147

BRACKET

Check Valve Mounting

1шт.

5

47837511

SUPPORT

Foamer Tank

1шт.

6

47836704

MOUNT

Foamer Pump

1шт.

7

47839156

MOUNT

Pump Station Support

1шт.

8

47839157

SUPPORT

Tank Support

2шт.

9

47839150

SHIELD

Pump Shield

1шт.

10

47839158

SUPPORT

Fill Station

1шт.

11

86980407

BOLT,Hex, M10 x 70mm, Cl 8.8

4шт.

12

86980401

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

2шт.

13

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

18шт.

14

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

6шт.

15

87302138

U-BOLT

3/8" -16

3шт.

16

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

6шт.
