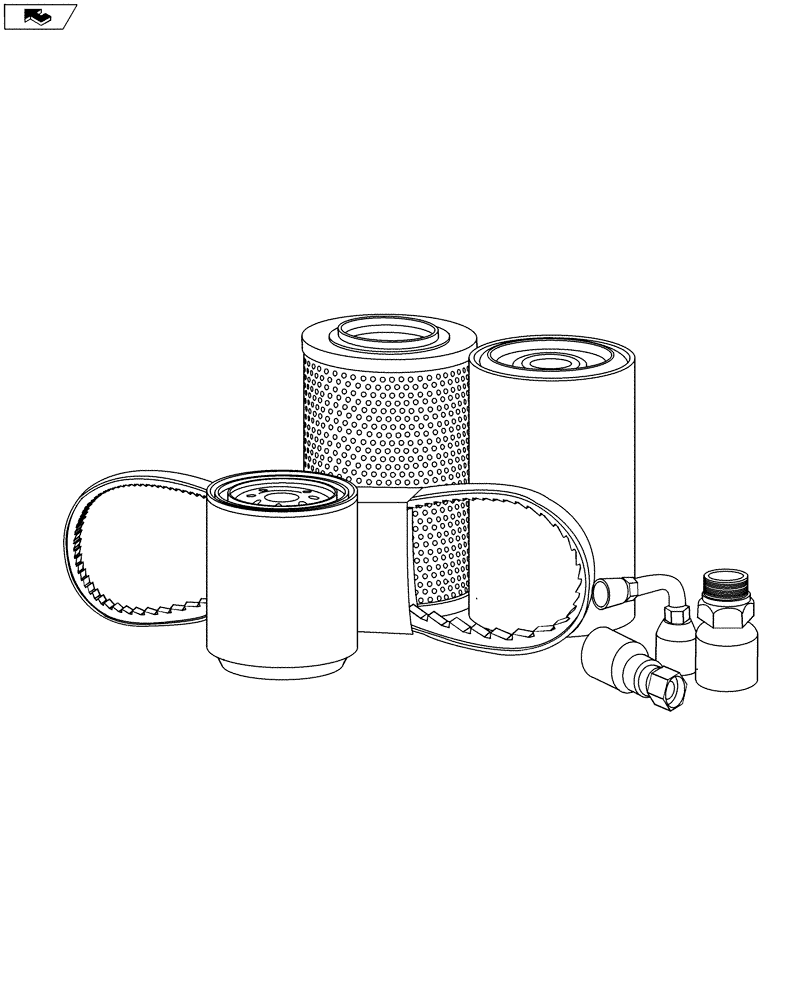

Запчасти Case IH PATRIOT 2250 (05.100.02[01]) - INITIAL STOCKING LIST (LIST B) (05) - SERVICE & MAINTENANCE

1

87645567

ALTERNATOR

14 Volt,175 Amp

1шт.

2

BMF31GSW

WET BATTERY

Ship Direct

2шт.

3

CCMF31GSW

WET BATTERY

Ship Direct

2шт.

4

86616248

BULB,H1, 12V, 55W

Beacon Strobe

1шт.

5

84607408

BULB,HID, 12V, 35W

Center, Front HID Lamps

3шт.

6

87316352

BULB,HB3, 12V, 60W

Center, Front Halogen Lamps

3шт.

7

86507190

CAP

Coolant Recovery

1шт.

8

504262827

CAP

Oil Fill

1шт.

9

BN68502

CAP

Fuel

1шт.

10

A170241

RADIATOR CAP

15 PSI

1шт.

11

2854581

DIPSTICK

Oil

1шт.

12

87455674

LH HEADLAMP

Dip

1шт.

13

87455675

RH HEADLAMP

Dip

1шт.

14

84416717

IGNITION KEY

Case IH

1шт.

15

87694404

LIGHT ASSY.

Lamp, Tail, Brake

1шт.

16

87694405

LIGHT ASSY.

Lamp, Turn/SMV

1шт.

17

86619908

RELAY,12V, 150A

Starter

1шт.

18

BN324211

SEAL KIT

Steering Cylinder

1шт.

19

84401250

SEAL KIT

Check Valve, Product Pump

1шт.

20

84401248

SEAL

Relief Valve, Product Pump

1шт.

21

84401247

SEAL KIT

Flow Control Valve, Product Pump

1шт.

22

47609409

SENSOR

Aim Command, Pressure

1шт.

23

87593274

SENSOR

Boom Lock and Position

2шт.

24

84201517

TRANSDUCER

Boom Pressure 250 PSI

1шт.

25

87710738

SENSOR

Boom, Ultrasonic

2шт.

26

4890189

SENSOR

Engine Speed

1шт.

27

4890190

SENSOR

ECM

1шт.

28

4897224

SENSOR

Engine Temp

1шт.

29

504372225

SENSOR,Temperature / Pressure

Intake

1шт.

30

87482355

SENSOR

Humidity Temp

1шт.

31

84596253

SENSOR

Hydraulic Level, Temp

1шт.

32

228760A1

RADAR

True Ground

1шт.

33

87519307

SENSOR

Water in Fuel

1шт.

34

84297496

SHOCK ABSORBER

Suspension

1шт.

35

87442359

STARTER MOTOR

Engine

1шт.

36

87000227

SWITCH, A/C HIGH PRE

Atmospheric

1шт.

37

87000228

SWITCH, A/C LOW PRES

Atmospheric

1шт.

38

279492A1

RESTRICTION SWITCH

Air Filter

1шт.

39

47493762

BATTERY CUT-OUT

Battery, Cut-off

1шт.

40

84275431

BEACON SWITCH

1шт.

41

BN321913

SWITCH

Boom Fold, LH

1шт.

42

BN321915

SWITCH

Boom Fold, RH

1шт.

43

87397313

SWITCH

Boom, One Touch Fold

1шт.

44

BN321910

SWITCH

Boom, Section

1шт.

45

47517206

SENDER UNIT

Fuel Level

1шт.
