Запчасти Case IH PATRIOT 2250 (78.110.AG[03]) - CHEMICAL EDUCTOR TANK (78) - SPRAYING

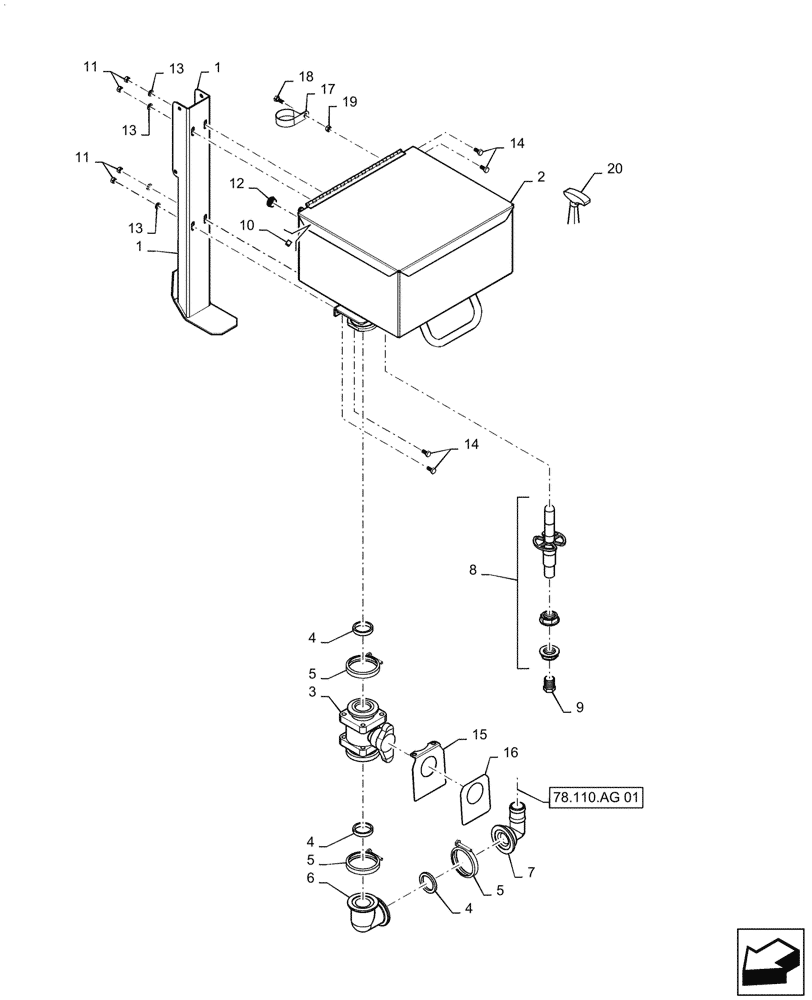

Схема запчастей Case IH PATRIOT 2250 - (78.110.AG[03]) - CHEMICAL EDUCTOR TANK (78) - SPRAYING
78.110.ag 01
6
10
12
5
7
3
5
11
11
18
20
14
13
5
4
16
1
9
2
13
4
8
4
15
1
19
17
13
14

Артикул

Название

Примечание

Количество

1

BN322941

BRACKET

Tank Mount

1шт.

2

BN320983

TANK

Inductor

1шт.

3

BN304328

VALVE,2" FP Valve w/C-Flng & T Handle

Flange, 2"

1шт.

4

BN303204

GASKET,1-1/2" EPDM Gasket

2", EPDM, Serial Range: -YGT042518

3шт.

4

47888705

GASKET

2" Full Port, Start Serial: YGT042519

3шт.

5

BN303199

CLAMP,2" Flange

3шт.

6

BN320903

COUPLING,2" x 2" 90 Degree Short Flange

Flange, 2" x Flange 2"

1шт.

7

BN304321

FITTING,2" Flange x 1-1/2" 90 Degree Hose Barb Elbow

Flange, 2" x 1-1/2" Hose Barb

1шт.

8

BN310895

VALVE

Jug Rinse

1шт.

9

BN73511

FITTING

90°, 1/2" MPT x 1/2" Hose Barb

1шт.

10

BN311050

PLUG

1-1/4", MPT

1шт.

11

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

4шт.

12

BN85855

GROMMET

1/2" Hose

1шт.

13

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

8шт.

14

86980380

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

15

BN320997

BRACKET

Decal Mounting, SST

1шт.

16

343187A1

DECAL

Chemical Inductor

1шт.

17

515-23508

CLAMP,2", Insul, 3/8" Bolt

1шт.

18

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

19

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

1шт.

20

BN53630

LATCH

Hood, Rubber Strap

1шт.

Выбрано товаров: 21
