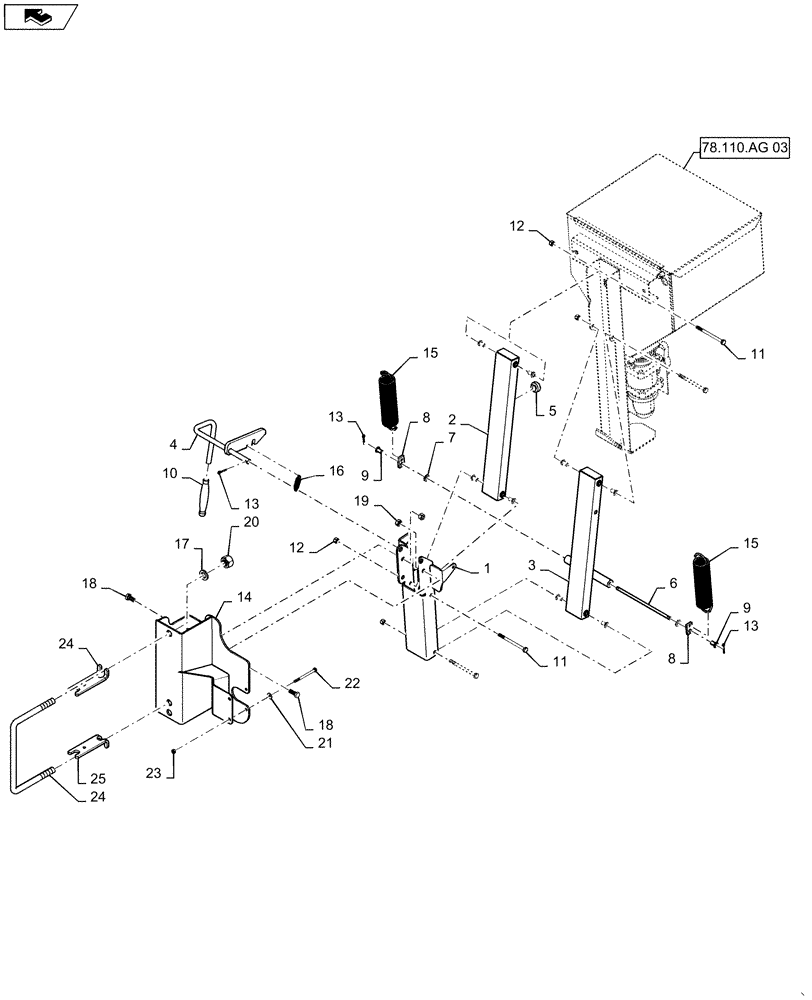

Запчасти Case IH PATRIOT 2250 (78.110.AG[02]) - CHEMICAL EDUCTOR MOUNTING (78) - SPRAYING

1

BN324764

MOUNT

Linkage Arms

1шт.

2

BN318197

ARM

Upper Linkage

1шт.

3

BN318198

ARM

Lower Linkage

1шт.

4

BN318200

LATCH

Inductor

1шт.

5

BN319152

RUBBER BUMPER

1" OD

1шт.

6

BN319247

PIN,7.94mm OD x 210mm L

Spring Retension

1шт.

7

BN319150

WASHER

3/8" Nylon

2шт.

8

BN319106

ADJUSTING PLATE

Spring Tension Adjustment

2шт.

9

BN319151

BUSHING

5/16", Nylon

10шт.

10

BN29274

GRIP

Vinyl

1шт.

11

87342752

BOLT

5/16" x 18, DOR

4шт.

12

87343959

NUT,5/16" - 18, GR B, DOR

4шт.

13

BN1630425

PIN, SPLIT (COTTER)

1/8" x 1"

3шт.

14

47480649

MOUNT

Chemical Inductor

1шт.

15

84588820

TENSION SPRING

Extension

2шт.

16

BN311889

SPRING

1/2" SST

1шт.

17

87529306

WASHER,17.5mm ID x 30mm OD x 4mm Thk

2шт.

18

86980399

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

4шт.

19

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

4шт.

20

86980518

NUT,Hex, M20 - 2.5, Cl 8.8, DOR

2шт.

21

87529314

WASHER,6.6mm ID x 12.5mm OD x 2mm Thk

2шт.

22

86980369

BOLT,Hex, M6 x 80, Cl 8.8

2шт.

23

86980513

NUT,Prev Torque, Hex, M6, 1mm Pitch, Cl 8, DOR

2шт.

24

84290200

U-BOLT

M16, Zinc

1шт.

25

84296062

SPACER

Frame

2шт.
