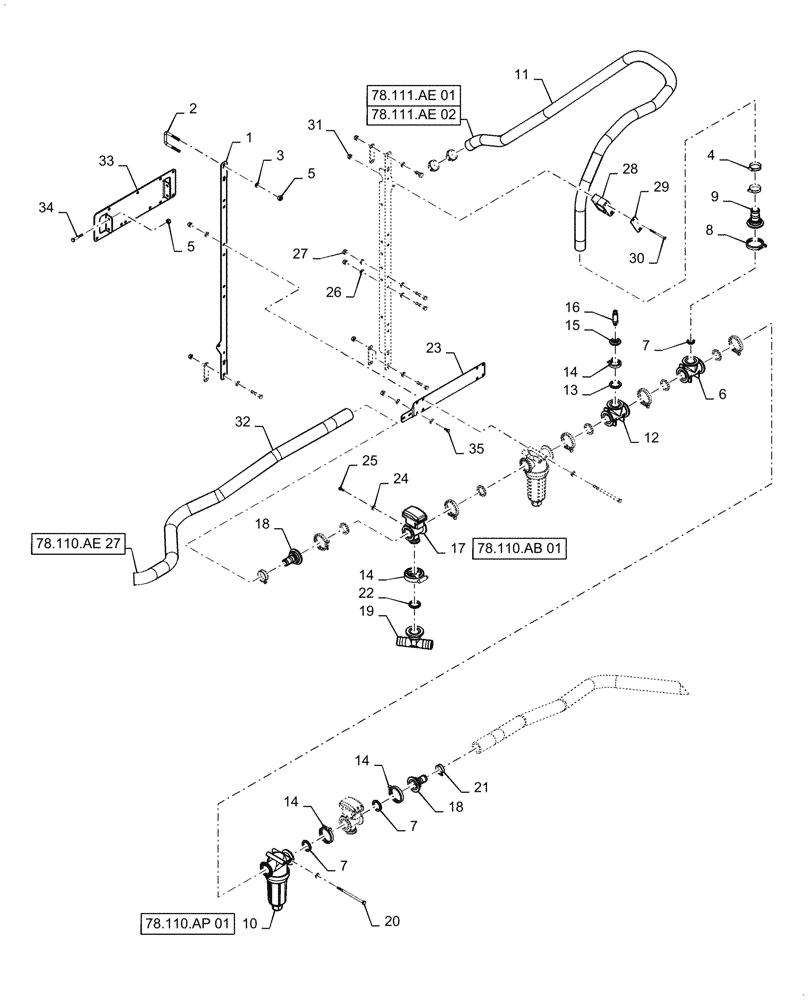

Запчасти Case IH PATRIOT 2250 (78.110.AE[28]) - BOOM PLUMBING, CENTER, 20" NOZZLE SPACING, 6 SECTION, 90 ASN YGT042518 (78) - SPRAYING

1

84328987

SUPPORT

Plumbing

2шт.

2

87586548

U-BOLT

M10, 2 1/2" x 2 1/2", DOR

4шт.

3

87529298

WASHER,11mm ID x 21mm OD x 2mm Thk

DOR

8шт.

4

BN310448

HOSE CLAMP

#24, SST

2шт.

5

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

12шт.

6

BN303196

TEE,2" Flange x 2" Flange x 2" Flange, Poly

1шт.

7

47888705

GASKET

2" Flange

8шт.

8

BN303199

CLAMP,2" Flange

8шт.

9

BN306901

FITTING,2" Flange x 1-1/2" Hose Barb, Poly

1шт.

10

87265489

FILTER STRAINER

2" Flange, Complete

2шт.

See 78.110.AP 01 For Servce

1шт.

11

BN53621

HOSE,1.50" ID BULK

EPDM

1шт.

12

BN303191

TEE,2" Flange x 2" Flange x 1" Flange, Poly

1шт.

13

47888704

GASKET,28mm ID x 52mm OD x 5.6mm Thk

1.0 FLB,EPDM

6шт.

14

BN303203

CLAMP,1" Flange

1" Flange

1шт.

15

BN324133

PLUG,1" Flange x 1/4" Female NPT, Poly

1шт.

16

84201517

TRANSDUCER

Pressure

1шт.

17

87632830

SHUT-OFF VALVE

2" Flange, Complete

1шт.

See 78.110.AB 01 For Service

1шт.

18

BN306900

FITTING,2" Flange x 1-1/4" Hose Barb, Poly

2шт.

19

47841653

TEE

Fitting, Hose Barb 1"

2шт.

20

86980394

BOLT,Hex, M8 -1.25 x 140mm, Cl 8.8, DOR

4шт.

21

BN320156

HOSE CLAMP

#16, SST

2шт.

22

47888704

GASKET,28mm ID x 52mm OD x 5.6mm Thk

1" Flange

2шт.

23

84342786

MOUNT

Manifold

1шт.

24

BN50138

WASHER,1/4", SS

4шт.

25

BN50697

BOLT,Hex, 1/4" - 20 x 1/2", SST

2шт.

26

87529315

WASHER,9mm ID x 17mm OD x 2mm Thk

DOR

12шт.

27

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

6шт.

28

87480824

CLAMP

Includes Top and Bottom Halves

1шт.

29

409811

COVER

Plate

1шт.

30

86980369

BOLT,Hex, M6 x 80, Cl 8.8

DOR

2шт.

31

86980513

NUT,Prev Torque, Hex, M6, 1mm Pitch, Cl 8, DOR

10шт.

32

BN29563

HOSE

1 1/4" Bulk, EPDM

1шт.

33

84385241

MOUNT

Valve / Nodes

1шт.

34

86980401

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

4шт.

35

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.
