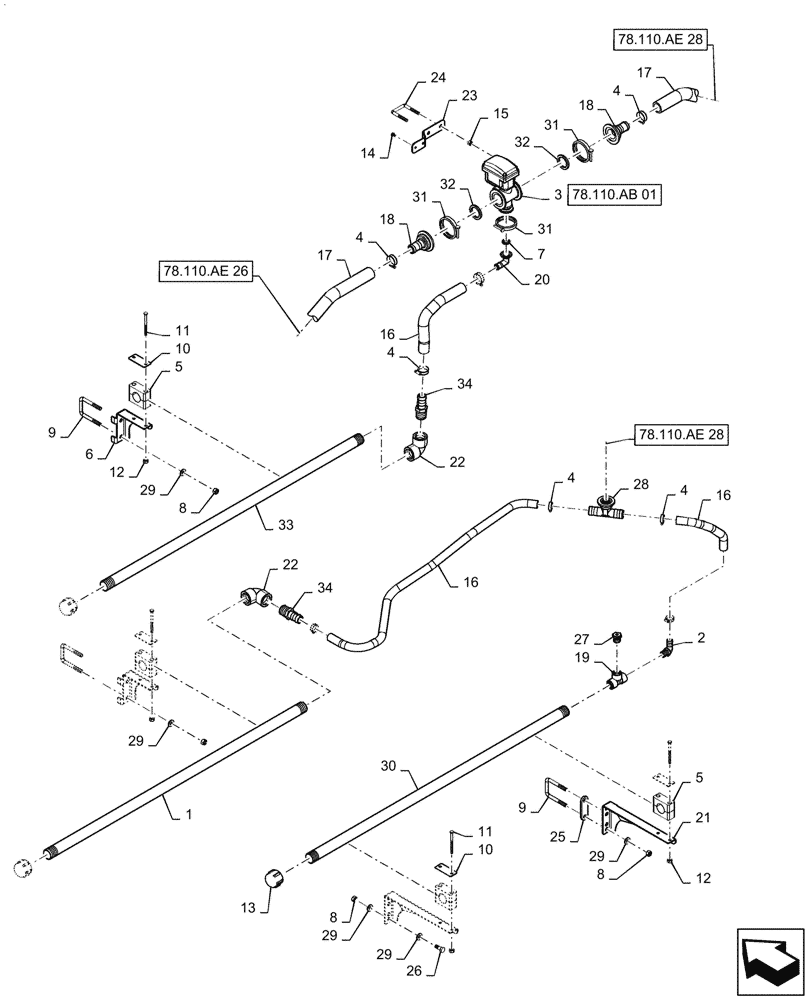

Запчасти Case IH PATRIOT 2250 (78.110.AE[27]) - BOOM PLUMBING, LH, INNER, 20" NOZZLE SPACING, 6 SECTION, 90, BSN YGT042519 (78) - SPRAYING

1

87452551

PIPE

Spraybar, 6 Hole, 20" Spacing, 9' - 2 1/2" Long, SCH 80,Poly

1шт.

2

BN53475

ELBOW,90 Degree Elbow, 1" Male NPT x 1" Hose Barb, Poly

2шт.

3

87632830

SHUT-OFF VALVE

2" Flange, Complete

1шт.

See 78.110.AB 01 For Service Parts

1шт.

4

BN75990

HOSE CLAMP

SST, # 16

6шт.

5

BN67054

CLAMP

Includes Top and Bottom Halves

17шт.

6

47614874

MOUNT

SprayBar W/ Slot

7шт.

7

BN303205

GASKET

1" Flange

1шт.

8

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

34шт.

9

47650282

U-BOLT

M10, 2 3/8" x 3 1/4"

16шт.

10

BN309483

PLATE

Cover

17шт.

11

86980369

BOLT,Hex, M6 x 80, Cl 8.8

DOR

34шт.

12

86980513

NUT,Prev Torque, Hex, M6, 1mm Pitch, Cl 8, DOR

34шт.

13

BN73606

CAP

1", Poly

3шт.

14

BN50697

BOLT,Hex, 1/4" - 20 x 1/2", SST

2шт.

15

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

2шт.

16

BN53479

HOSE,1.00" ID BULK

EPDM

1шт.

17

BN29563

HOSE

1 1/4" Bulk, EPDM

1шт.

18

BN306900

FITTING,2" Flange x 1-1/4" Hose Barb, Poly

2шт.

19

BN73629

TEE

1" FP

1шт.

20

BN303194

ELBOW,90 Degree Elbow, 1" Flange x 1" Hose Barb, Poly

3шт.

21

84343255

MOUNT

Spraybar

3шт.

22

BN73742

ELBOW

1" FPT

2шт.

23

87265462

MOUNTING PARTS

Valve

1шт.

24

BN319919

U-BOLT

3/8"

1шт.

25

47654165

SPACER

U-Bolt

4шт.

26

86980400

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

2шт.

27

BN2390261

REDUCER

1" MPT x 1/4" FPT

2шт.

28

47841653

TEE

1" Poly

2шт.

29

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

34шт.

30

87452548

PIPE

Spraybar, 3 Hole, 20" Spacing, 46" Long, SCH 80, Poly

1шт.

31

BN303199

CLAMP,2" Flange

2шт.

32

BN303204

GASKET,1-1/2" EPDM Gasket

2" Flange, EPDM

2шт.

33

87452553

PIPE

Spraybar, 9 Hole, 20" Spacing, 14' - 2 1/2" Long, SCH 80,Poly

1шт.

34

BN53476

FITTING,1" Male NPT x 1" Hose Barb, Poly

2шт.
