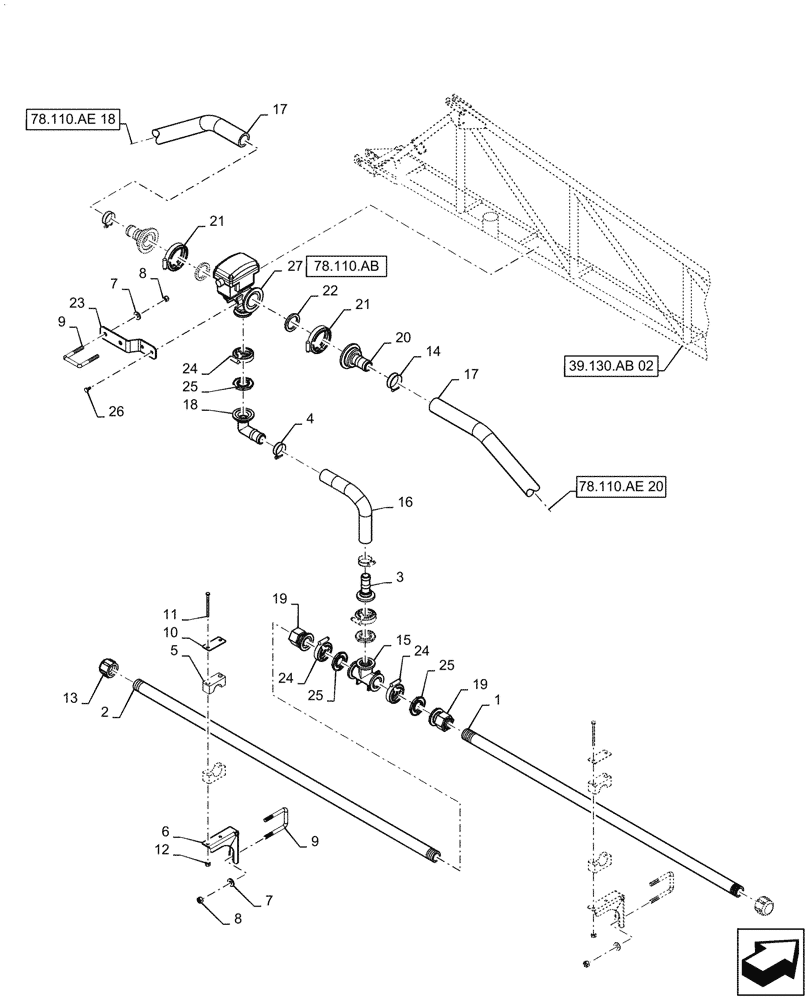

Запчасти Case IH PATRIOT 2250 (78.110.AE[19]) - BOOM PLUMBING, RH, INNER, 20" NOZZLE SPACING, 5 SECTION, 90, ASN YGT042518 (78) - SPRAYING

1

87452553

PIPE

Spraybar, 9 Hole, 20" Spacing, 14' - 2 1/2" Long, SCH 80,Poly

1шт.

2

47937601

PIPE

Spraybar, 6 Hole, 20" Spacing, 9' - 1 1/2" Long, SCH 80,Poly

1шт.

3

BN304319

FITTING,1" Flange x 1" Hose Barb, Poly

1шт.

4

BN310447

HOSE CLAMP

#20, SST

4шт.

5

BN67054

CLAMP

Includes Top and Bottom Halves

7шт.

6

47614874

MOUNT

Spraybar, W/ Slot

14шт.

7

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

28шт.

8

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

28шт.

9

47650282

U-BOLT

M10, 2 3/8" x 3 1/4"

14шт.

10

BN309483

PLATE

Cover

14шт.

11

86980369

BOLT,Hex, M6 x 80, Cl 8.8

DOR

28шт.

12

86980513

NUT,Prev Torque, Hex, M6, 1mm Pitch, Cl 8, DOR

28шт.

13

BN73606

CAP

1", Poly

2шт.

14

BN320156

HOSE CLAMP

#24, SST

1шт.

15

BN304316

FITTING,1" Flange x 1" Flange x 1" Flange, Poly

1шт.

16

BN53479

HOSE,1.00" ID BULK

EPDM

1шт.

17

BN29563

HOSE

1 1/4" EPDM, 20' Bulk, Cut to Length Required

1шт.

18

BN303194

ELBOW,90 Degree Elbow, 1" Flange x 1" Hose Barb, Poly

1шт.

19

47804854

FITTING,1" Flange x 1" Pipe Thread

1" Flange to Spraybar

2шт.

20

BN306900

FITTING,2" Flange x 1-1/4" Hose Barb, Poly

1шт.

21

BN303199

CLAMP,2" Flange

2шт.

22

BN303204

GASKET,1-1/2" EPDM Gasket

2" Flange

2шт.

23

87265462

MOUNTING PARTS

Valve

1шт.

24

BN303203

CLAMP,1" Flange

1" Flange

3шт.

25

BN303205

GASKET

1" Flange

3шт.

26

BN50697

BOLT,Hex, 1/4" - 20 x 1/2", SST

2шт.

27

87632830

SHUT-OFF VALVE

2" Flange, Complete

1шт.

See 78.110.AB 01 For Service Parts

1шт.
