(78.110.AE[14]) - BOOM PLUMBING, RH, INNER, 20" NOZZLE SPACING, 6 SECTION, 80, ASN YGT042518

Запчасти Case IH PATRIOT 2250 (78.110.AE[14]) - BOOM PLUMBING, RH, INNER, 20" NOZZLE SPACING, 6 SECTION, 80, ASN YGT042518 (78) - SPRAYING

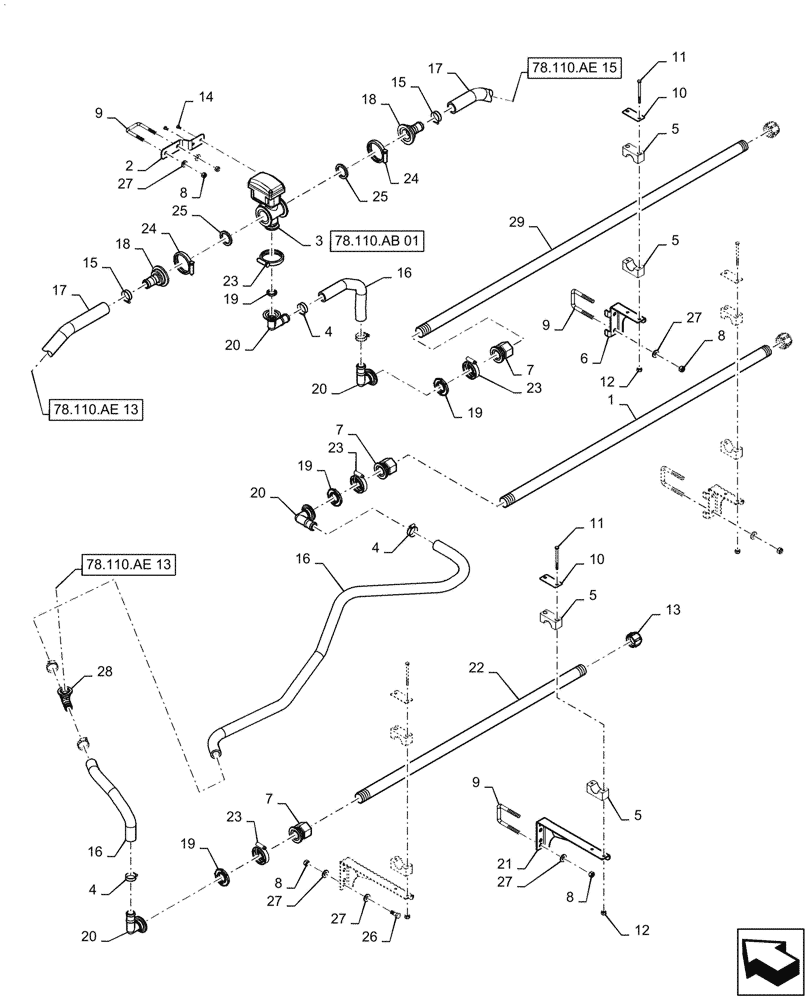

Схема запчастей Case IH PATRIOT 2250 - (78.110.AE[14]) - BOOM PLUMBING, RH, INNER, 20" NOZZLE SPACING, 6 SECTION, 80, ASN YGT042518 (78) - SPRAYING
78.110.ab 01
18
16
19
3
17
14
17
28
19
7
7
27
20
23
4
20
27
29
23
22
12
26
5
10
13
8
4
19
19
5
21
27
18
1
25
8
4
16
12
11
27
7
10
15
6
25
27
5
16
24
11
20
9
2
24
5
8
9
15
23
8
9
20
23
78.110.ae 13
78.110.ae 13
78.110.ae 15
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47937601

PIPE

Spraybar, Inner, 6 Hole, 20" Spacing, 9' - 1 1/2" Long, SCH 80,Poly

1шт.

2

87265462

MOUNTING PARTS

Valve

1шт.

3

87632830

SHUT-OFF VALVE

2" Flange, Complete

1шт.

See 78.110.AB 01 For Service Parts

1шт.

4

BN310447

HOSE CLAMP

#20 SST

6шт.

5

BN67054

CLAMP

Includes Top and Bottom Halves

17шт.

6

47614874

MOUNT

Spraybar

14шт.

7

47804854

FITTING,1" Flange x 1" Pipe Thread

1" Flange to Spraybar

3шт.

8

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

34шт.

9

47650282

U-BOLT

M10, 2 3/8" x 3 1/4"

17шт.

10

BN309483

PLATE

Cover

17шт.

11

86980369

BOLT,Hex, M6 x 80, Cl 8.8

DOR

28шт.

12

86980513

NUT,Prev Torque, Hex, M6, 1mm Pitch, Cl 8, DOR

28шт.

13

BN73606

CAP

1", Poly

3шт.

14

BN50697

BOLT,Hex, 1/4" - 20 x 1/2", SST

2шт.

15

BN320156

HOSE CLAMP

#24, SST

2шт.

16

BN53479

HOSE,1.00" ID BULK

EPDM

1шт.

17

BN29563

HOSE

1 1/4" Bulk, EPDM

1шт.

18

BN306900

FITTING,2" Flange x 1-1/4" Hose Barb, Poly

2шт.

19

47888704

GASKET,28mm ID x 52mm OD x 5.6mm Thk

1" Flange, EPDM

4шт.

20

BN303194

ELBOW,90 Degree Elbow, 1" Flange x 1" Hose Barb, Poly

4шт.

21

47958719

MOUNT

Spraybar

3шт.

22

47937598

PIPE

Spraybar, Center, 3 Hole, 20" Spacing, 46" Long SCH 80, Poly

1шт.

23

BN303203

CLAMP,1" Flange

1", Flange

4шт.

24

BN303199

CLAMP,2" Flange

2шт.

25

47888705

GASKET

2" Flange, EPDM

2шт.

26

86980400

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

2шт.

27

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

38шт.

28

47841653

TEE

1" Flange x 1" HB

1шт.

29

87452553

PIPE

Spraybar, 9 Hole, 20" Spacing, 14' - 2 1/2" Long, SCH 80,Poly

1шт.
