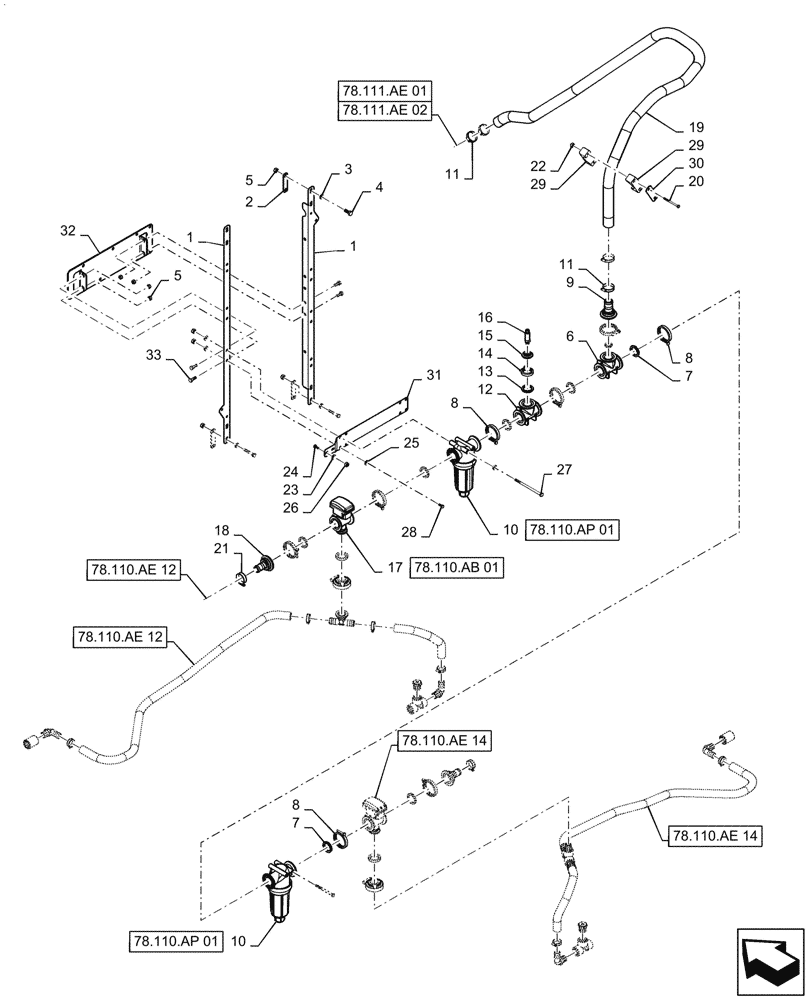

Запчасти Case IH PATRIOT 2250 (78.110.AE[13]) - BOOM PLUMBING, CENTER, 20" NOZZLE SPACING, 6 SECTION, 80, BSN YGT042519 (78) - SPRAYING

1

84328987

SUPPORT

Plumbing

2шт.

2

84326080

PLATE

Tube

4шт.

3

87529298

WASHER,11mm ID x 21mm OD x 2mm Thk

DOR

8шт.

4

86980406

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

8шт.

5

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

12шт.

6

BN303196

TEE,2" Flange x 2" Flange x 2" Flange, Poly

1шт.

7

BN303204

GASKET,1-1/2" EPDM Gasket

8шт.

8

BN303199

CLAMP,2" Flange

8шт.

9

BN306901

FITTING,2" Flange x 1-1/2" Hose Barb, Poly

1шт.

10

87265489

FILTER STRAINER

2" Flange, Complete

2шт.

See 78.110.AP 03 For Servce Parts

1шт.

11

BN310448

HOSE CLAMP

SST, #28

4шт.

12

BN303191

TEE,2" Flange x 2" Flange x 1" Flange, Poly

1шт.

13

BN303205

GASKET

1.0 FLB,EPDM

6шт.

14

BN303203

CLAMP,1" Flange

1" Flange

1шт.

15

BN324133

PLUG,1" Flange x 1/4" Female NPT, Poly

1шт.

16

84201517

TRANSDUCER

Pressure

1шт.

17

87632830

SHUT-OFF VALVE

2" Flange, Complete

1шт.

See 78.110.AB 01 For Service Parts

1шт.

18

BN306900

FITTING,2" Flange x 1-1/4" Hose Barb, Poly

2шт.

19

BN53621

HOSE,1.50" ID BULK

EPDM, Cut to Length Required

1шт.

20

86980369

BOLT,Hex, M6 x 80, Cl 8.8

DOR

2шт.

21

BN75990

HOSE CLAMP

SST, # 16

2шт.

21

BN75990

HOSE CLAMP

SST, # 16

8шт.

22

86980513

NUT,Prev Torque, Hex, M6, 1mm Pitch, Cl 8, DOR

2шт.

23

BN50138

WASHER,1/4", SS

4шт.

24

BN50697

BOLT,Hex, 1/4" - 20 x 1/2", SST

12шт.

25

87529315

WASHER,9mm ID x 17mm OD x 2mm Thk

DOR

12шт.

26

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

6шт.

27

86980394

BOLT,Hex, M8 -1.25 x 140mm, Cl 8.8, DOR

DOR

4шт.

28

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

29

87480824

CLAMP

Includes Top and Bottom Halves

1шт.

30

409811

COVER

Plate

1шт.

31

84342786

MOUNT

Manifold, 6 Section

1шт.

32

84385241

MOUNT

Valve-Nodes

1шт.

33

86980401

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

4шт.
