Запчасти Case IH PATRIOT 2250 (78.110.AE[11]) - BOOM PLUMBING, LH, OUTER, 20" NOZZLE SPACING, 6 SECTION, 80, ASN YGT042518 (78) - SPRAYING

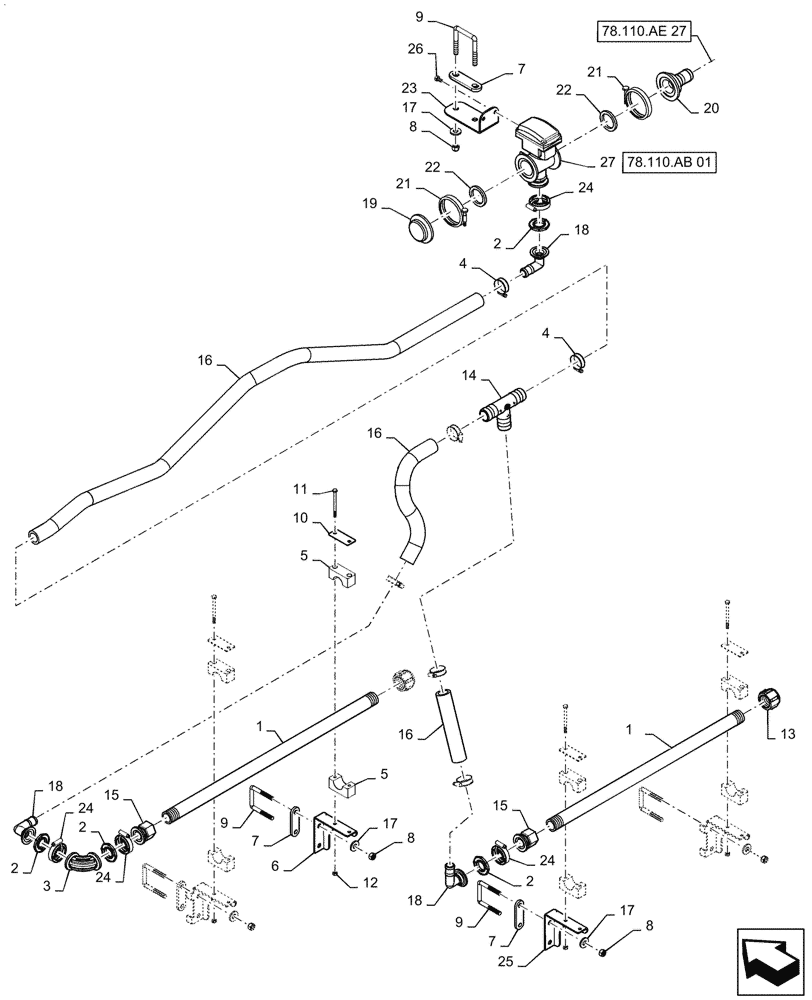

Схема запчастей Case IH PATRIOT 2250 - (78.110.AE[11]) - BOOM PLUMBING, LH, OUTER, 20" NOZZLE SPACING, 6 SECTION, 80, ASN YGT042518 (78) - SPRAYING
78.110.ab 01
2
18
11
23
8
26
16
3
15
5
21
9
9
19
14
17
7
4
16
17
2
12
24
21
24
2
17
2
13
1
10
18
15
8
7
27
9
6
22
1
8
16
7
24
5
22
24
18
20
4
25
78.110.ae 27

Артикул

Название

Примечание

Количество

1

87452548

PIPE

Spraybar, 3 Hole, 20" Spacing, 46" Long, SCH 80, Poly

1шт.

2

47888704

GASKET,28mm ID x 52mm OD x 5.6mm Thk

1" Flange

4шт.

3

47917419

FITTING,90 Degree 1" Flange

1" Flange, 90° Sweep

1шт.

4

BN310447

HOSE CLAMP

#20, SST

6шт.

5

BN67054

CLAMP

Includes Top and Bottom Halves

6шт.

6

84343258

MOUNT

Spraybar, Breakaway, Without Tabs

2шт.

7

47654165

SPACER

Spraybar

6шт.

8

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

8шт.

9

47650282

U-BOLT

M10, 2 3/8" x 3 1/4"

6шт.

10

BN309483

PLATE

Cover

6шт.

11

86980369

BOLT,Hex, M6 x 80, Cl 8.8

DOR

12шт.

12

86980513

NUT,Prev Torque, Hex, M6, 1mm Pitch, Cl 8, DOR

12шт.

13

BN73606

CAP

End Cap, 1" Poly

2шт.

14

47767363

FITTING,1" x 1" x 3/4" Hose Barb Tee

1" FPT, Poly

1шт.

15

47804854

FITTING,1" Flange x 1" Pipe Thread

Flange to Spraybar

2шт.

16

BN53479

HOSE,1.00" ID BULK

Cut to Required Length

1шт.

17

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

8шт.

18

BN303194

ELBOW,90 Degree Elbow, 1" Flange x 1" Hose Barb, Poly

3шт.

19

BN304317

PLUG,2" Flange, Poly

1шт.

20

BN306900

FITTING,2" Flange x 1-1/4" Hose Barb, Poly

1шт.

21

BN303199

CLAMP,2" Flange

1шт.

22

47888705

GASKET

2" Flange, EPDM

1шт.

23

87270047

MOUNT

Boom Valve

1шт.

24

BN303203

CLAMP,1" Flange

1" Flange

4шт.

25

84343258

MOUNT

Spraybar, Inner, With Tabs

2шт.

26

BN50697

BOLT,Hex, 1/4" - 20 x 1/2", SST

2шт.

27

87632830

SHUT-OFF VALVE

2" Flange, Complete

1шт.

See 78.110.AB 01 For Service Parts

1шт.
