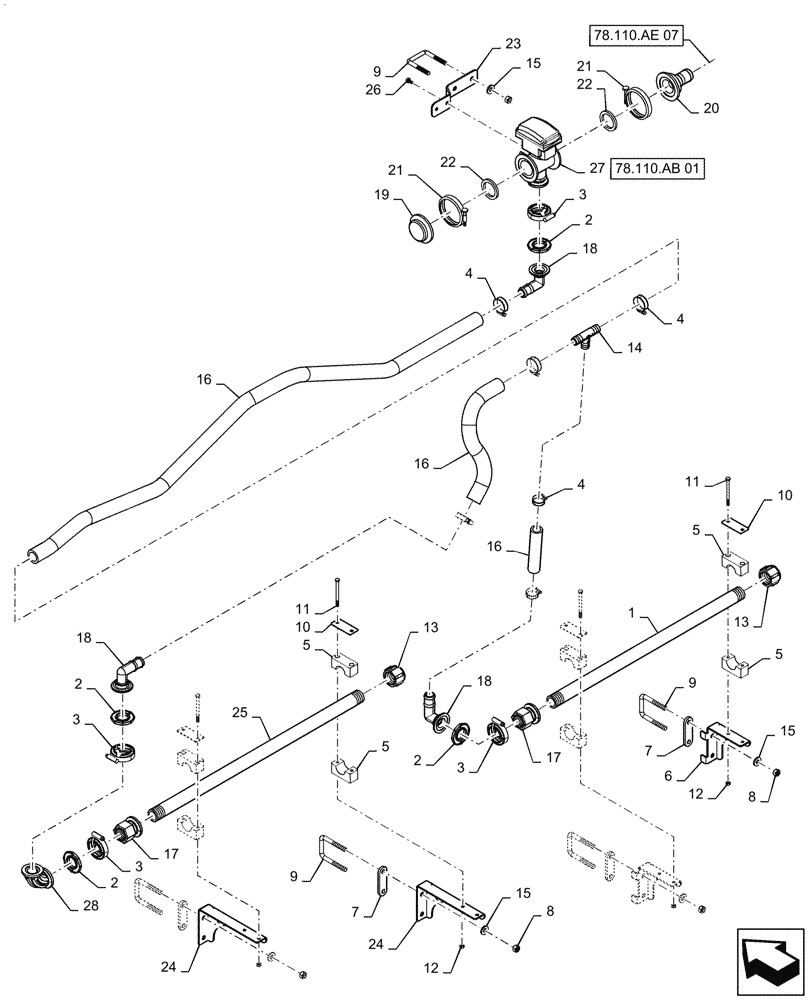

Запчасти Case IH PATRIOT 2250 (78.110.AE[06]) - BOOM PLUMBING, LH OUTER, 20"/ 30" SPACING, 5 SECTION, 80 BOOM, ASN YGT042518 (78) - SPRAYING

1

87452548

PIPE

Spraybar, 1", 3 Hole, 20"/30" Spacing, 46" Long, SCH 80, Poly

1шт.

2

47888704

GASKET,28mm ID x 52mm OD x 5.6mm Thk

1" Flange

3шт.

3

BN303203

CLAMP,1" Flange

1" Flange

4шт.

4

BN310447

HOSE CLAMP

#20, SST

6шт.

5

BN67054

CLAMP

Includes Top and Bottom Halves

4шт.

6

47614661

MOUNT

Spraybar, Outer

2шт.

7

47654165

SPACER

Spacer

4шт.

8

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

18шт.

9

47650282

U-BOLT

M10, 3 3/16" x 2 3/8"

5шт.

10

BN309483

PLATE

Cover

4шт.

11

86980369

BOLT,Hex, M6 x 80, Cl 8.8

DOR

8шт.

12

86980513

NUT,Prev Torque, Hex, M6, 1mm Pitch, Cl 8, DOR

8шт.

13

BN73606

CAP

1", Poly

2шт.

14

47767363

FITTING,1" x 1" x 3/4" Hose Barb Tee

1" Tee

1шт.

15

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

16шт.

16

BN53479

HOSE,1.00" ID BULK

Cut to Required Length

1шт.

17

47804854

FITTING,1" Flange x 1" Pipe Thread

1" Flange to Spraybar

2шт.

18

BN303194

ELBOW,90 Degree Elbow, 1" Flange x 1" Hose Barb, Poly

90°, 1" Flange x 1" HB

3шт.

19

BN304317

PLUG,2" Flange, Poly

1шт.

20

BN306900

FITTING,2" Flange x 1-1/4" Hose Barb, Poly

1шт.

21

BN303199

CLAMP,2" Flange

2шт.

22

47888705

GASKET

2", EPDM

2шт.

23

87265462

MOUNTING PARTS

Valve Mount

1шт.

24

84343258

MOUNT

Spraybar, Breakaway

2шт.

25

47937785

PIPE

Spraybar, 1", 4 Hole, 20"/30" Spacing, 54" Long, SCH 80, Poly

1шт.

26

BN50697

BOLT,Hex, 1/4" - 20 x 1/2", SST

2шт.

27

87632830

SHUT-OFF VALVE

2" Flange, Complete

1шт.

See 78.110.AB 01 For Service

1шт.

28

47917419

FITTING,90 Degree 1" Flange

90° Flange

1шт.
