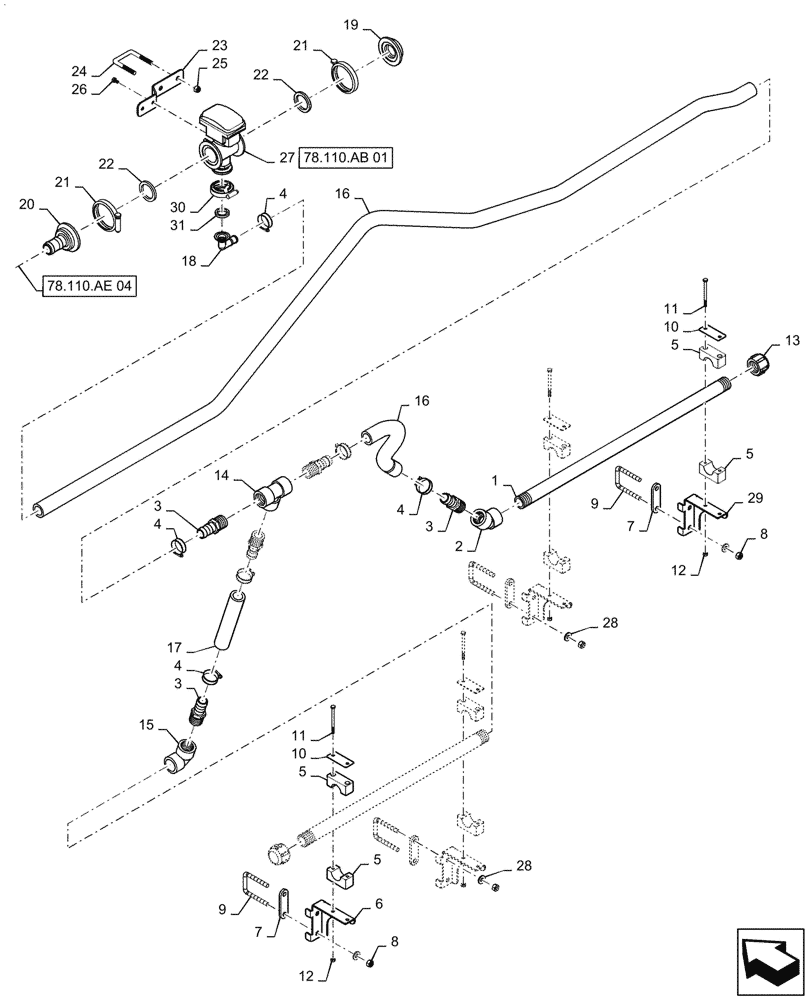

Запчасти Case IH PATRIOT 2250 (78.110.AE[05]) - BOOM PLUMBING, RH, OUTER, 20" NOZZLE SPACING, 5 SECTION, 80, BSN YGT042519 (78) - SPRAYING

1

87452548

PIPE

Spraybar, SCH 80, 3 Hole, 20" Spacing, 46" Long, Poly

2шт.

2

BN307203

ELBOW,1" 45 Degree Poly Street Elbow

45° 1" FPT, Poly

1шт.

3

BN53476

FITTING,1" Male NPT x 1" Hose Barb, Poly

5шт.

4

BN75990

HOSE CLAMP

SST, #16

6шт.

5

BN67054

CLAMP

Includes Top and Bottom Halves

4шт.

6

47614874

MOUNT

Spraybar

4шт.

7

BN308039

PLATE

Spacer

4шт.

8

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

16шт.

9

47650282

U-BOLT

M10, 3 3/16" x 2 3/8"

4шт.

10

BN309483

PLATE

Cover

4шт.

11

86980369

BOLT,Hex, M6 x 80, Cl 8.8

DOR

16шт.

12

86980513

NUT,Prev Torque, Hex, M6, 1mm Pitch, Cl 8, DOR

16шт.

13

BN73606

CAP

1", Poly

2шт.

14

BN73629

TEE

1" FPT, Poly

1шт.

15

BN73742

ELBOW

90° 1" FPT x 1" HB

1шт.

16

BN53479

HOSE,1.00" ID BULK

Cut to Required Length

1шт.

17

BN29563

HOSE

Bulk, 1-1/4", Cut to Required Length

1шт.

18

BN303194

ELBOW,90 Degree Elbow, 1" Flange x 1" Hose Barb, Poly

1шт.

19

BN304317

PLUG,2" Flange, Poly

1шт.

20

BN306900

FITTING,2" Flange x 1-1/4" Hose Barb, Poly

1шт.

21

BN303199

CLAMP,2" Flange

2шт.

22

BN303204

GASKET,1-1/2" EPDM Gasket

2" Flange, EPDM

2шт.

23

87265462

MOUNTING PARTS

Valve Mount

1шт.

24

BN319919

U-BOLT

3/8"

1шт.

25

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

2шт.

26

BN50697

BOLT,Hex, 1/4" - 20 x 1/2", SST

2шт.

27

87632830

SHUT-OFF VALVE

2" Flange, Complete

1шт.

See 78.110.AB 01

1шт.

28

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

16шт.

29

47614661

MOUNT

Spraybar

1шт.

30

BN303203

CLAMP,1" Flange

1" Flange

1шт.

31

BN303205

GASKET

1" Flange

1шт.
