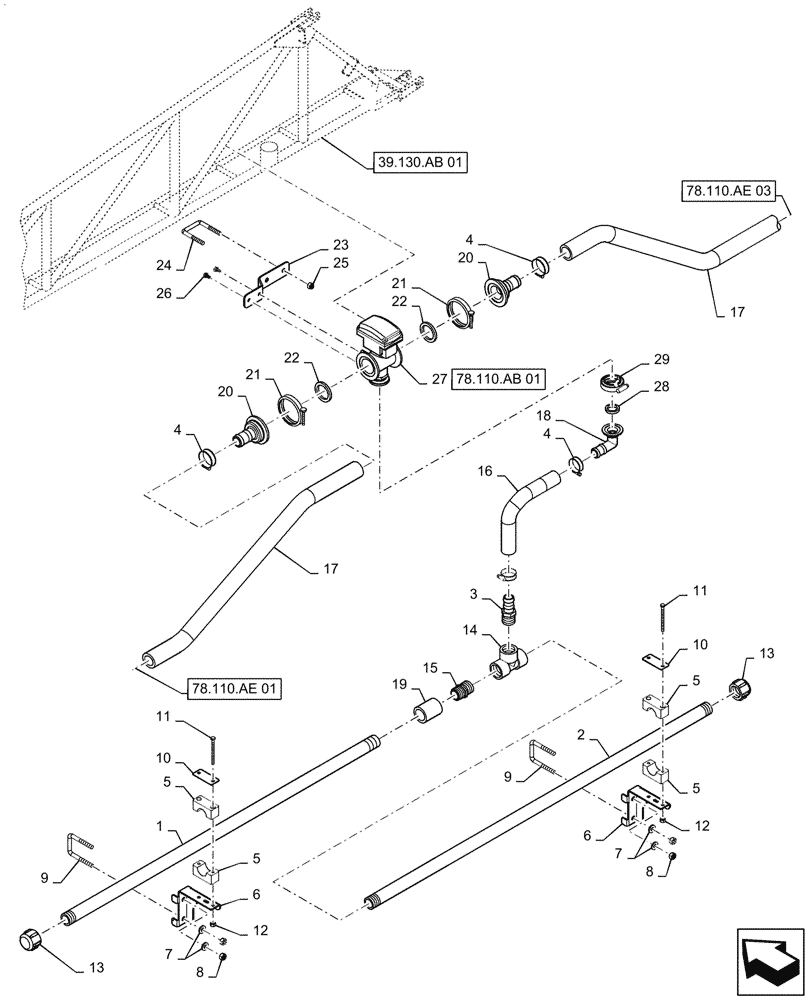

Запчасти Case IH PATRIOT 2250 (78.110.AE[02]) - BOOM PLUMBING, LH, INNER, 20" NOZZLE SPACING, 5 SECTION, 80 BSN YGT042519 (78) - SPRAYING

1

87452553

PIPE

Spraybar, 9 Hole, 20" Spacing, 14' - 2 1/2" Long, SCH 80,Poly

1шт.

2

87452551

PIPE

Spraybar, 6 Hole, 20" Spacing, 9' - 2 1/2" Long, SCH 80,Poly

1шт.

3

BN53476

FITTING,1" Male NPT x 1" Hose Barb, Poly

1шт.

4

BN75990

HOSE CLAMP

# 16, SST

4шт.

5

BN67054

CLAMP

Includes Top and Bottom Halves

2шт.

6

47542139

MOUNT

Spraybar

14шт.

7

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

28шт.

8

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

28шт.

9

47650282

U-BOLT

14шт.

10

BN309483

PLATE

Cover

2шт.

11

86980369

BOLT,Hex, M6 x 80, Cl 8.8

DOR

28шт.

12

86980513

NUT,Prev Torque, Hex, M6, 1mm Pitch, Cl 8, DOR

14шт.

13

BN73606

CAP

1", Poly

2шт.

14

BN73629

TEE

1" FPT, Poly

1шт.

15

BN73648

NIPPLE

1", Short, Poly

1шт.

16

BN53479

HOSE,1.00" ID BULK

EPDM, Cut to Length Required

1шт.

17

BN29563

HOSE

1 1/4" EPDM, 20' Bulk, Cut to Length Required

1шт.

18

BN303194

ELBOW,90 Degree Elbow, 1" Flange x 1" Hose Barb, Poly

1шт.

19

BN66968

COUPLING

1", Poly

1шт.

20

BN306900

FITTING,2" Flange x 1-1/4" Hose Barb, Poly

1шт.

21

BN303199

CLAMP,2" Flange

2шт.

22

BN303204

GASKET,1-1/2" EPDM Gasket

2" Flange

2шт.

23

84385241

MOUNT

Valve

1шт.

24

BN319919

U-BOLT

3/8"

1шт.

25

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

2шт.

26

BN50697

BOLT,Hex, 1/4" - 20 x 1/2", SST

2шт.

27

87632830

SHUT-OFF VALVE

2" Flange, Complete

1шт.

See 78.110.AB 01 For Service Parts

1шт.

28

BN303205

GASKET

1" Flange

1шт.

29

BN303203

CLAMP,1" Flange

1" Flange

1шт.
