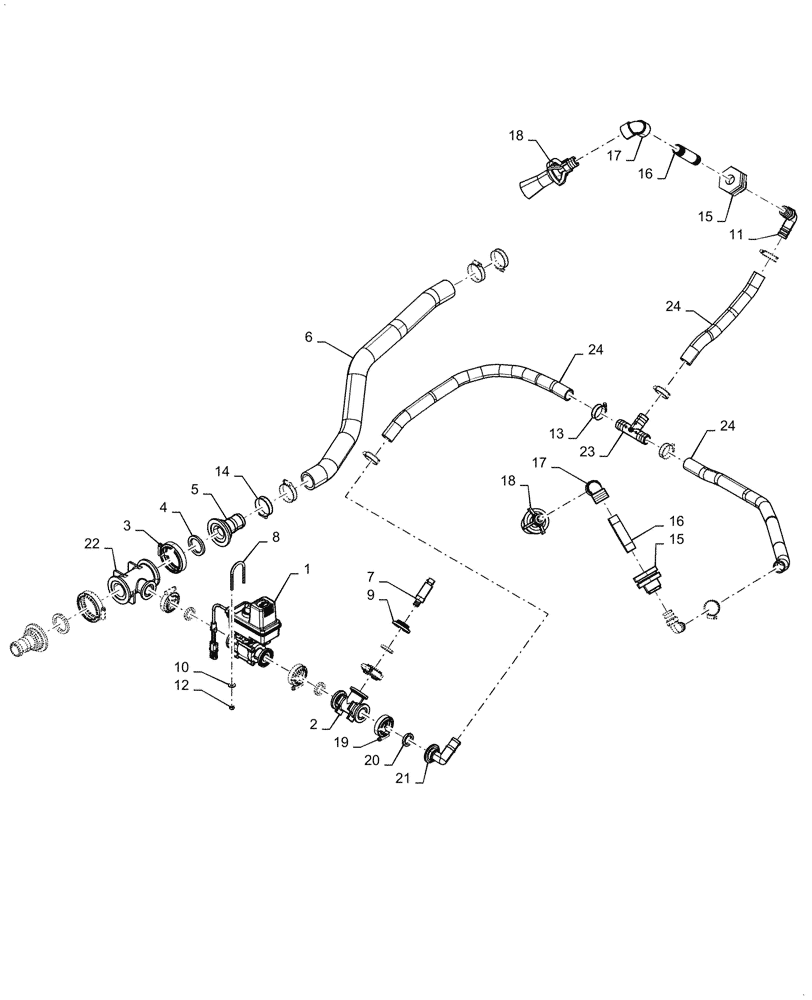

Запчасти Case IH PATRIOT 2250 (78.110.AC[10]) - PRODUCT TANK, SPARGE AGITATION PLUMBING (78) - SPRAYING

1

47781036

VALVE

Sparge

1шт.

2

BN304316

FITTING,1" Flange x 1" Flange x 1" Flange, Poly

Tee

1шт.

3

BN303199

CLAMP,2" Flange

2шт.

4

BN303204

GASKET,1-1/2" EPDM Gasket

EPDM, Serial Range: -YGT042518

2шт.

4

47888705

GASKET

2" Flange, EPDM, Start Serial: YGT042519

2шт.

5

BN306901

FITTING,2" Flange x 1-1/2" Hose Barb, Poly

Straight

2шт.

6

BN53842

HOSE,38.10 mm ID Bulk

2" EPDM

1шт.

7

84201517

TRANSDUCER

Pressure, Sparge PSI

1шт.

8

BN68011

U-BOLT

1/4" - 20

1шт.

9

BN324133

PLUG,1" Flange x 1/4" Female NPT, Poly

Reducer

1шт.

10

BN2392389

WASHER

1/4" SST

2шт.

11

134271C2

ELBOW,ELBOW, 90

3/4" NPT x 1" HB

2шт.

12

BN55359

LOCK NUT,1/4"-20, SS

2шт.

13

BN75990

HOSE CLAMP

#16, SST

6шт.

14

BN310448

HOSE CLAMP

#28, SST

4шт.

15

BN311041

FITTING

3/4" NPT, Poly

2шт.

16

BN73576

NIPPLE

3/4" x 4", Poly

2шт.

17

87580531

90 ELBOW,3/4" 90 Degree Poly Elbow

1" NPT x 1" NPT, Poly

2шт.

18

BN304248

AGITATOR

Tank Mixing Nozzle

2шт.

19

BN303203

CLAMP,1" Flange

1" Flange Manifold

4шт.

20

BN303205

GASKET

1" Flange Manifold, Serial Range: -YGT042518

4шт.

20

47888704

GASKET,28mm ID x 52mm OD x 5.6mm Thk

1" Flange, EDPM, Start Serial: YGT042519

4шт.

21

BN303194

ELBOW,90 Degree Elbow, 1" Flange x 1" Hose Barb, Poly

1шт.

22

BN303191

TEE,2" Flange x 2" Flange x 1" Flange, Poly

1шт.

23

47767363

FITTING,1" x 1" x 3/4" Hose Barb Tee

1" HB x 1" HB x 1" HB, Tee

1шт.

24

BN53479

HOSE,1.00" ID BULK

1" EPDM

1шт.
