(78.110.AC[09]) - PRODUCT PUMP PLUMBING, OUTLET SIDE

Запчасти Case IH PATRIOT 2250 (78.110.AC[09]) - PRODUCT PUMP PLUMBING, OUTLET SIDE (78) - SPRAYING

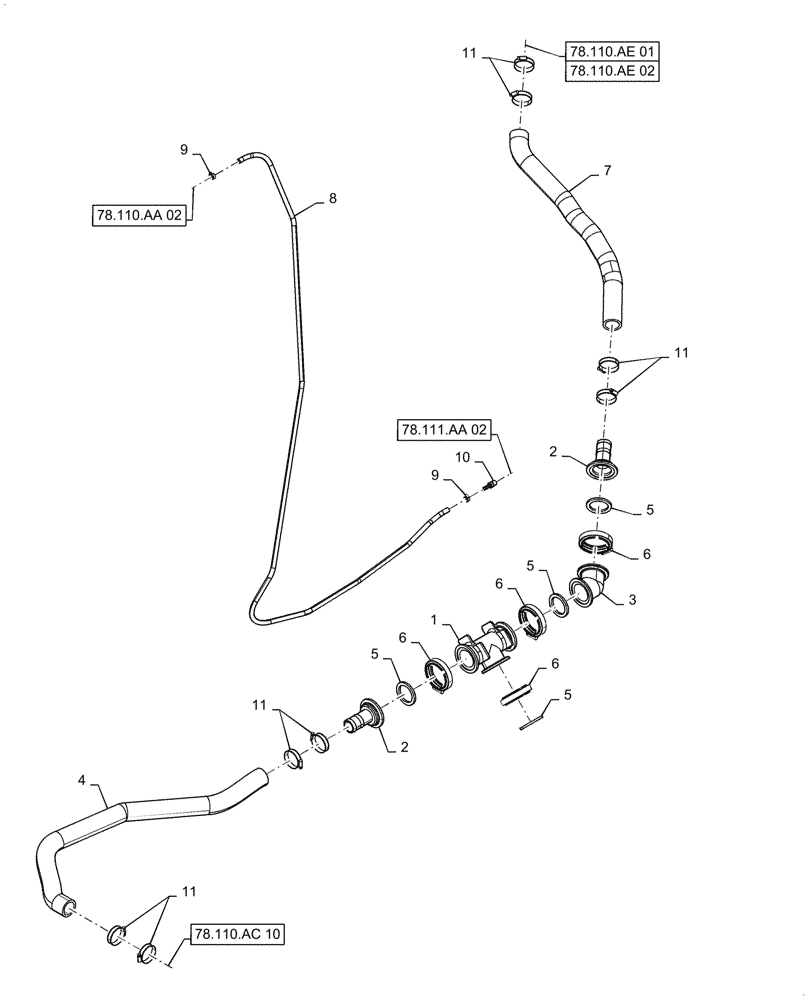

Схема запчастей Case IH PATRIOT 2250 - (78.110.AC[09]) - PRODUCT PUMP PLUMBING, OUTLET SIDE (78) - SPRAYING
78.110.ac 10
11
3
5
6
5
5
2
6
10
5
4
11
7
6
2
11
6
11
8
9
9
1
78.110.aa 02
78.110.ae 01
78.111.aa 02
78.110.ae 02
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BN322550

TEE,2" Full Port Flange x 2" Full Port Flange x 2" Full Port Flange

1шт.

2

BN322277

FITTING,2" Full Port Flange x 1-1/2" Hose Barb

Straight

2шт.

3

87267540

ELBOW,45 Degree Elbow, 2" Full Port Flange x 2" Full Port Flange, Poly

1шт.

4

84310322

HOSE,38.1mm ID x 1023.1mm L

From Product Pump Outlet Tee, to Strainer

1шт.

5

BN313772

GASKET,2" Full Port, EPDM

, Serial Range: -YGT042518

4шт.

5

47888706

GASKET,56mm ID x 83mm OD 5mm Thk

2.2" Flange, EPDM, Start Serial: YGT042519

4шт.

6

BN313773

CLAMP,2" Full Port

4шт.

7

BN53621

HOSE,1.50" ID BULK

From Product Pump Outlet Tee, to Sprage Valve Tee

1шт.

8

84246017

HOSE,6.4mm ID x 3280mm L

Bleeder from Product Pump to Product Tank

1шт.

9

BN76094

HOSE CLAMP

#04 Type M, SST, Serial Range: -YGT042518

2шт.

9

BN310450

HOSE CLAMP

#03, SST, Start Serial: YGT042519

2шт.

10

BN72040

FITTING,1/8" MPT x 1/4" HB

1/8" NPT x 1/4" HB

1шт.

11

BN310448

HOSE CLAMP

#28, SST

8шт.
