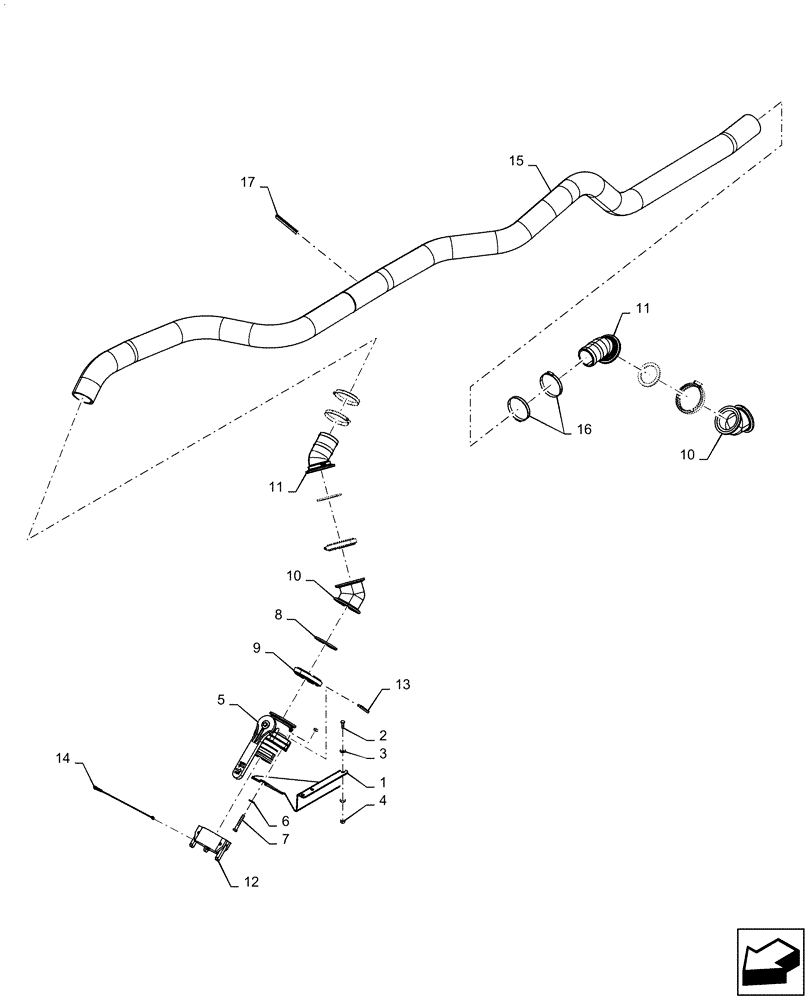

Запчасти Case IH PATRIOT 2250 (78.110.AC[08]) - FRONT FILL, 3" PLUMBING (78) - SPRAYING

1

47593300

MOUNT

Front Fill

1шт.

2

86980380

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

DOR

2шт.

3

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

4шт.

4

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

2шт.

5

47421018

VALVE,3" Flange x 3" Male Adapter

3" Flange, Stubby

1шт.

6

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

3шт.

7

BN50948

BOLT,Hex, 3/8" - 16 x 2 1/2", Stainless

3шт.

8

BN321073

GASKET,3" Flange, EPDM

Valve, Serial Range: -YGT042518

3шт.

8

47888707

GASKET,81mm ID x 113mm OD x 6mm Thk

3" Flange, EPDM, Start Serial: YGT042519

3шт.

9

BN321074

CLAMP,101.6mm

3" Flange

3шт.

10

87266599

COUPLING,3" x 3" 45 Degree Full Port Flange

45° 3" Flange

2шт.

11

84283082

FITTING,3" Flange x 3" 45 Degree Hose Barb Elbow

45° 3" Flange x 3" Hose Barb

2шт.

12

BN2393384

CAP

3" Cam, Poly

1шт.

13

306132C1

CABLE TIE,14.5" L

1шт.

14

416624A1

ROPE

Lanyard, Nylon, 1/4" X 12"

1шт.

15

BN326025

HOSE,3.00" ID BULK

Cut to Length Required

1шт.

16

BN324269

HOSE CLAMP

#52, SST

4шт.

17

84419983

TRIM

Edge

1шт.
