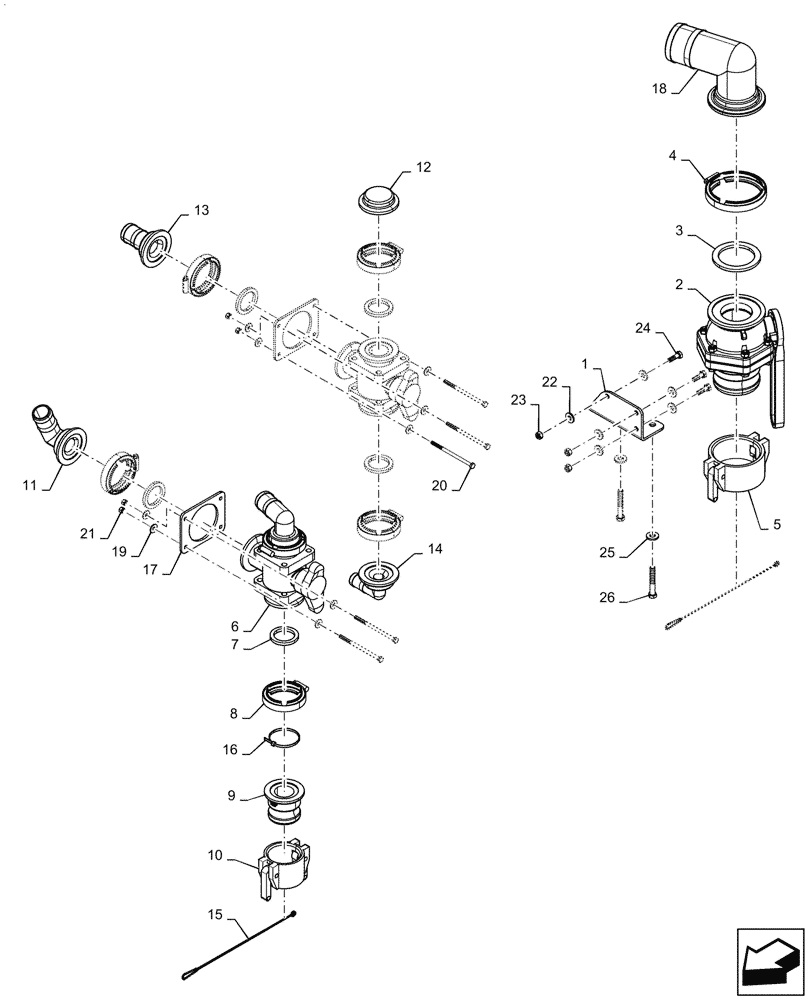

Запчасти Case IH PATRIOT 2250 (78.110.AC[05]) - PRODUCT FILL STATION, 3" PLUMBING (78) - SPRAYING

1

47848353

MOUNT

Fill Valve

1шт.

2

47421018

VALVE,3" Flange x 3" Male Adapter

Stubby

1шт.

3

BN321073

GASKET,3" Flange, EPDM

, Serial Range: -YGT042518

1шт.

3

47888707

GASKET,81mm ID x 113mm OD x 6mm Thk

3", EPDM, Start Serial: YGT042519

1шт.

4

BN321074

CLAMP,101.6mm

1шт.

5

BN2393384

CAP

3" Cam Lock

1шт.

6

BN324998

VALVE

2" Flanged

2шт.

7

BN303204

GASKET,1-1/2" EPDM Gasket

, Serial Range: -YGT042518

6шт.

7

47888705

GASKET

2", EPDM, Start Serial: YGT042519

6шт.

8

BN303199

CLAMP,2" Flange

6шт.

9

47828304

ADAPTER,2" Flange x 2" Male Adapter

2" Cam Lock x 2" Flange

1шт.

10

BN22901

DUST CAP,2" Cam Lever Dust Cap

2" Cam Lock

1шт.

11

BN304321

FITTING,2" Flange x 1-1/2" 90 Degree Hose Barb Elbow

2" Flange x 1 1/2" HB

2шт.

12

BN304317

PLUG,2" Flange, Poly

1шт.

13

BN306901

FITTING,2" Flange x 1-1/2" Hose Barb, Poly

1шт.

14

BN322003

FITTING,2" Flange x 1" 90 Degree Hose Barb Elbow

2" Flange x 1" HB

1шт.

15

416624A1

ROPE

Lanyard Nylon 1/4" x 12"

2шт.

16

22-824

CABLE TIE,3/16" x 7 1/4"

1шт.

17

87272712

FIXING PLATE

Selector Valve

2шт.

18

BN321082

FITTING,3" Flange x 3" 90 Degree Hose Barb Elbow

1шт.

19

87529302

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

16шт.

20

86980371

BOLT,Hex, M6 x 110mm, Cl 8.8

8шт.

21

86980513

NUT,Prev Torque, Hex, M6, 1mm Pitch, Cl 8, DOR

8шт.

22

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

6шт.

23

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

3шт.

24

86980380

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

3шт.

25

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

3шт.

26

BN50948

BOLT,Hex, 3/8" - 16 x 2 1/2", Stainless

3шт.
