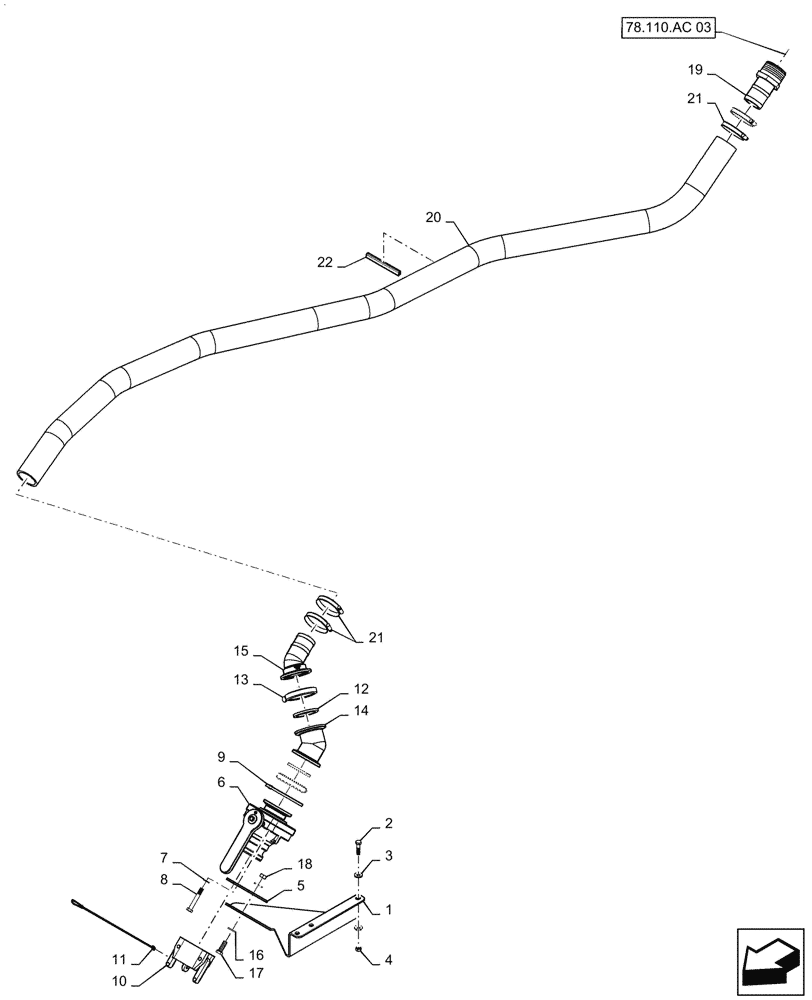

Запчасти Case IH PATRIOT 2250 (78.110.AC[04]) - FRONT FILL, 2" PLUMBING (78) - SPRAYING

1

47593300

MOUNT

Front Fill

1шт.

2

86980380

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

DOR

2шт.

3

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

4шт.

4

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

2шт.

5

47512719

MOUNT

Front Fill

1шт.

6

47421495

VALVE,2" FP Flange x 2" Male Adapter

2" Flange, Stubby

1шт.

7

86981495

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

DOR

3шт.

8

BN50948

BOLT,Hex, 3/8" - 16 x 2 1/2", Stainless

3шт.

9

306132C1

CABLE TIE,14.5" L

1шт.

10

BN22901

DUST CAP,2" Cam Lever Dust Cap

2" Cam Lever, Poly

1шт.

11

416624A1

ROPE

Lanyard, Nylon, 1/4" x 12"

1шт.

12

BN313772

GASKET,2" Full Port, EPDM

, Serial Range: -YGT042518

2шт.

12

47888706

GASKET,56mm ID x 83mm OD 5mm Thk

2" Full Port, Start Serial: YGT042519

2шт.

13

BN303199

CLAMP,2" Flange

, Serial Range: -YGT042518

2шт.

13

BN313773

CLAMP,2" Full Port

, Start Serial: YGT042519

2шт.

14

87267540

ELBOW,45 Degree Elbow, 2" Full Port Flange x 2" Full Port Flange, Poly

1шт.

15

47421490

FITTING,2" Full Port Flange x 2" 45 Degree Hose Barb Elbow

45° 2" Flange x 2" Hose Barb

1шт.

16

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

6шт.

17

86980401

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

3шт.

18

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

3шт.

19

BN73781

FITTING,2" Male NPT x 2" Hose Barb, Poly

, Serial Range: -YGT042518

1шт.

19

BN318600

FITTING,2" Full Flange x 2" Hose Barb, Poly

, Start Serial: YGT042519

1шт.

20

BN29564

HOSE

2" EPDM, Suction, Bulk, Cut to Length Needed

1шт.

21

BN310449

CLAMP,50mm - 65mm

#32, SST

4шт.

22

84419983

TRIM

Edge, Cut to 4.3"

1шт.
