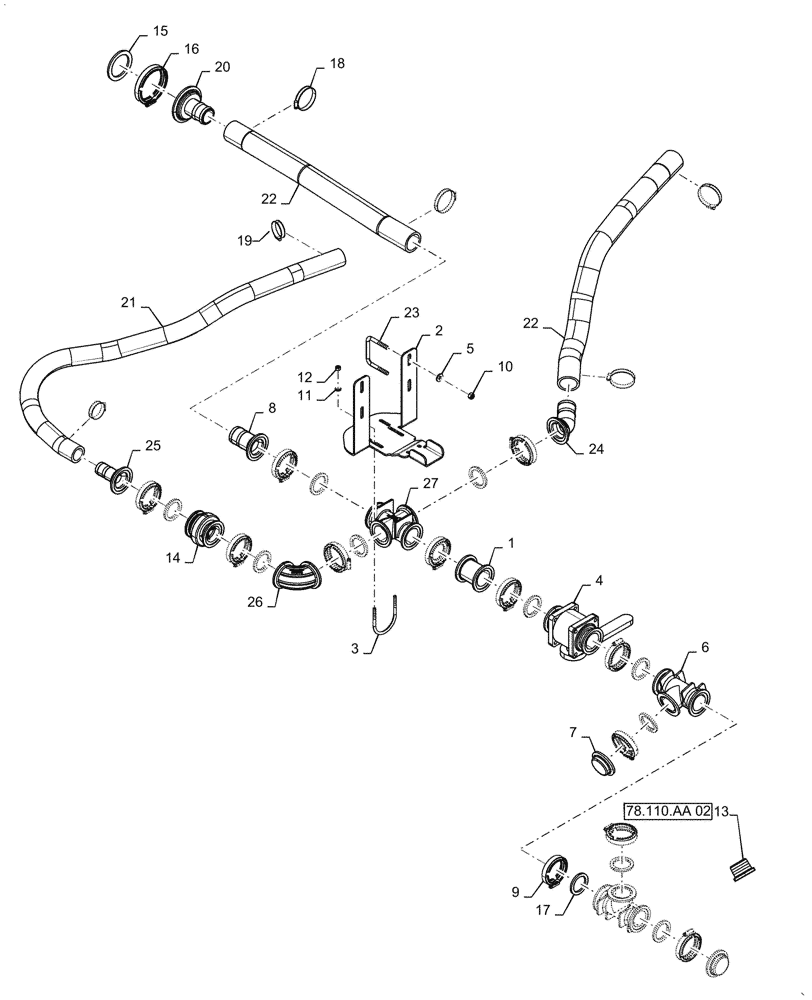

Запчасти Case IH PATRIOT 2250 (78.110.AC[03]) - PRODUCT TANK SUMP, 2" PLUMBING, BSN YGT042519 (78) - SPRAYING

1

BN325292

COUPLING

Straight, 2" Flange, x 2" Flange

1шт.

2

47826971

MOUNT

Sump Pumbing

1шт.

3

84346692

U-BOLT

M8, 3 5/8" x 4 3/8"

1шт.

4

BN324057

VALVE,2" Full Port Flange x 2" Full Port Flange

1шт.

5

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

4шт.

6

BN322550

TEE,2" Full Port Flange x 2" Full Port Flange x 2" Full Port Flange

2шт.

7

BN322574

PLUG,2" Flange

2" Flange, Poly

2шт.

8

BN318600

FITTING,2" Full Flange x 2" Hose Barb, Poly

1шт.

9

BN313773

CLAMP,2" Full Port

12шт.

10

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

4шт.

11

87529315

WASHER,9mm ID x 17mm OD x 2mm Thk

DOR

2шт.

12

86980513

NUT,Prev Torque, Hex, M6, 1mm Pitch, Cl 8, DOR

2шт.

13

BN73794

PLUG,2" Male NPT, Poly

2шт.

14

47767404

VALVE

Check, 2" Flange

1шт.

15

BN321073

GASKET,3" Flange, EPDM

1шт.

16

BN321074

CLAMP,101.6mm

Flange

1шт.

17

BN313772

GASKET,2" Full Port, EPDM

Flange

12шт.

18

BN310449

CLAMP,50mm - 65mm

Hose, #32, SST

8шт.

19

BN310448

HOSE CLAMP

#28, SST

2шт.

20

BN321080

FITTING,3" Flange x 2" Hose Barb, Poly

1шт.

21

47404981

HOSE

1 1/2" Kaniflex, 49" Long

1шт.

22

BN29564

HOSE

Bulk, Suction 2"

1шт.

23

84307994

U-BOLT

M10, 3 1/4" x 3"

2шт.

24

47421490

FITTING,2" Full Port Flange x 2" 45 Degree Hose Barb Elbow

45°, 2" Flange x 2" HB

1шт.

25

BN322277

FITTING,2" Full Port Flange x 1-1/2" Hose Barb

Straight

1шт.

26

47767922

FITTING,2" Full Port Flange x Flange Sweep

90°, 2" Flange x 2" Flange

1шт.

27

47727151

FITTING

Cross, 2" Flange

1шт.
