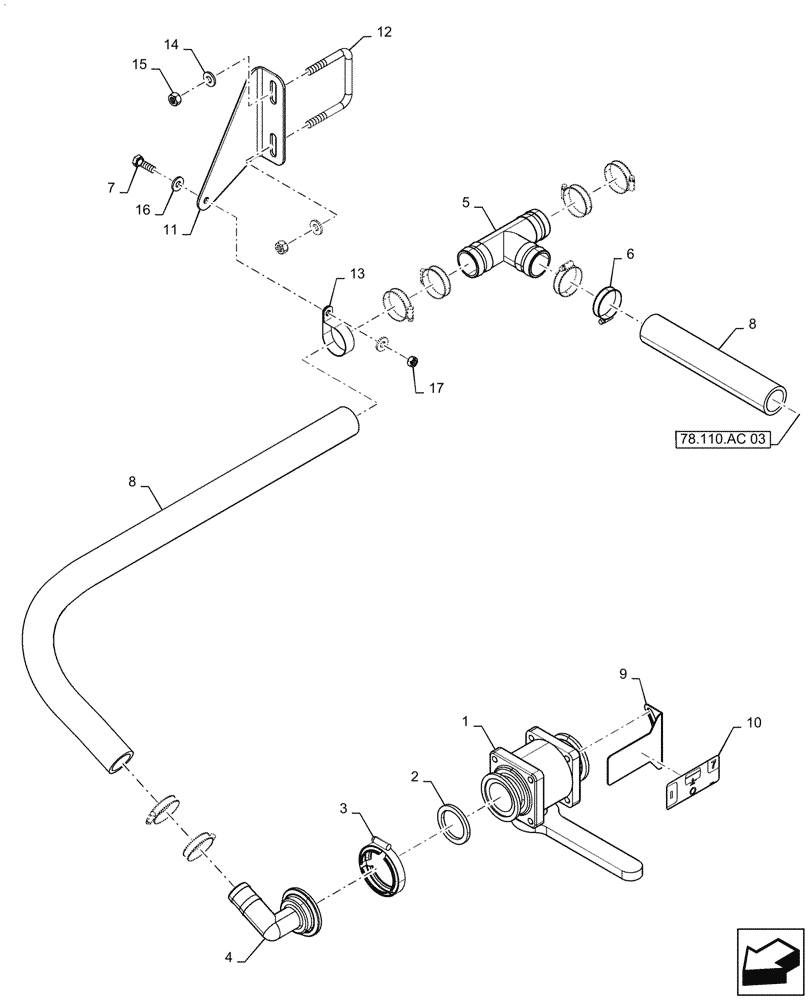

Запчасти Case IH PATRIOT 2250 (78.110.AC[02]) - SUCTION FILL 2" PLUMBING (78) - SPRAYING

1

BN324057

VALVE,2" Full Port Flange x 2" Full Port Flange

Ball with Lever

1шт.

2

BN313772

GASKET,2" Full Port, EPDM

1шт.

3

BN313773

CLAMP,2" Full Port

1шт.

4

BN322505

FITTING,M220 FP Flanged Hosebarb

2" NPT x 1-1/2" HB

1шт.

5

BN2402038

TEE

1-1/2" HB

1шт.

6

BN310448

HOSE CLAMP

#28, SST

8шт.

7

86980380

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

DOR

1шт.

8

BN53621

HOSE,1.50" ID BULK

EPDM, Suction

1шт.

9

47527172

MOUNT

Decal

1шт.

10

47827909

DECAL

Suction Fill

1шт.

11

47878026

MOUNT

Fill

1шт.

12

84307994

U-BOLT

M10, 3 1/4" x 3"

1шт.

13

515-23508

CLAMP,2", Insul, 3/8" Bolt

1шт.

14

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

DOR

2шт.

15

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

2шт.

16

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

DOR

2шт.

17

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

1шт.
