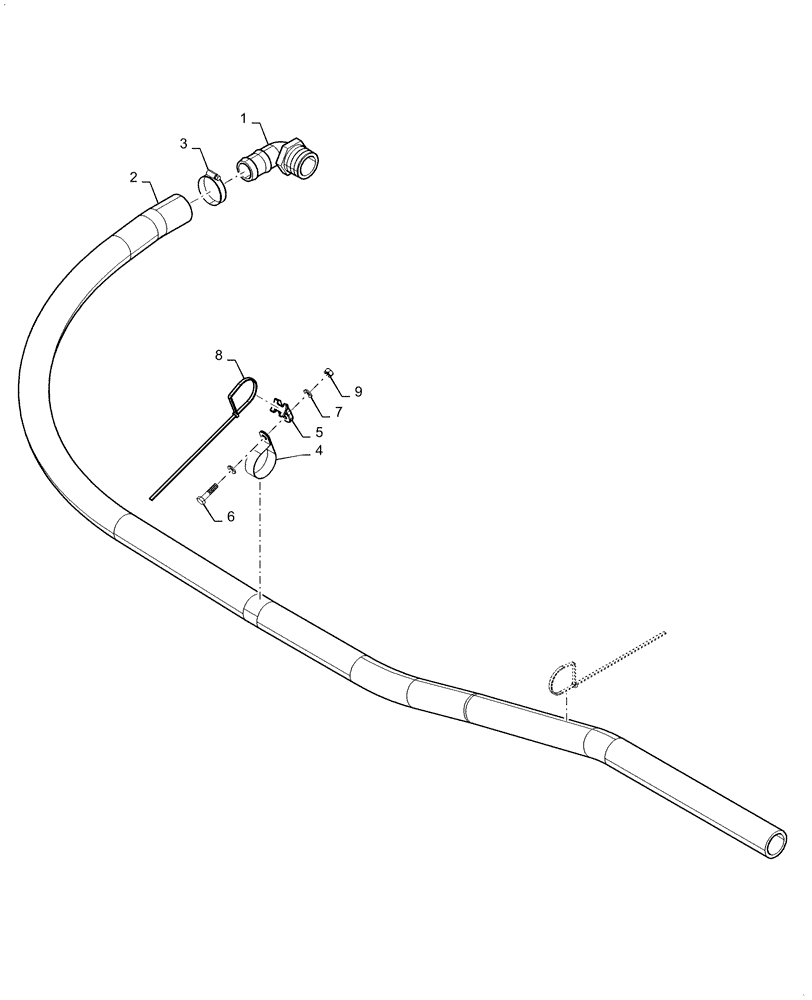

Запчасти Case IH PATRIOT 2250 (78.110.AA[07]) - PRODUCT TANK VENT, BSN YGT042519 (78) - SPRAYING

1

BN73723

ELBOW,90 Degree Elbow, 1-1/2" Male NPT x 1-1/2" Hose Barb, Poly

1шт.

2

BN309785

HOSE

Bulk, Vent, 1 1/2", Bulk

1шт.

3

BN310448

HOSE CLAMP

#28, SST

1шт.

4

87552805

CLAMP,50.8mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

5

84474186

BASE

Tie

1шт.

6

86980382

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8, Full Thd

DOR

1шт.

7

84365547

WASHER,8.4mm ID x 16mm OD x 2mm Thk

DOR

2шт.

8

BN570007

STRAP

Zip Tie, 14"

2шт.

9

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

1шт.
