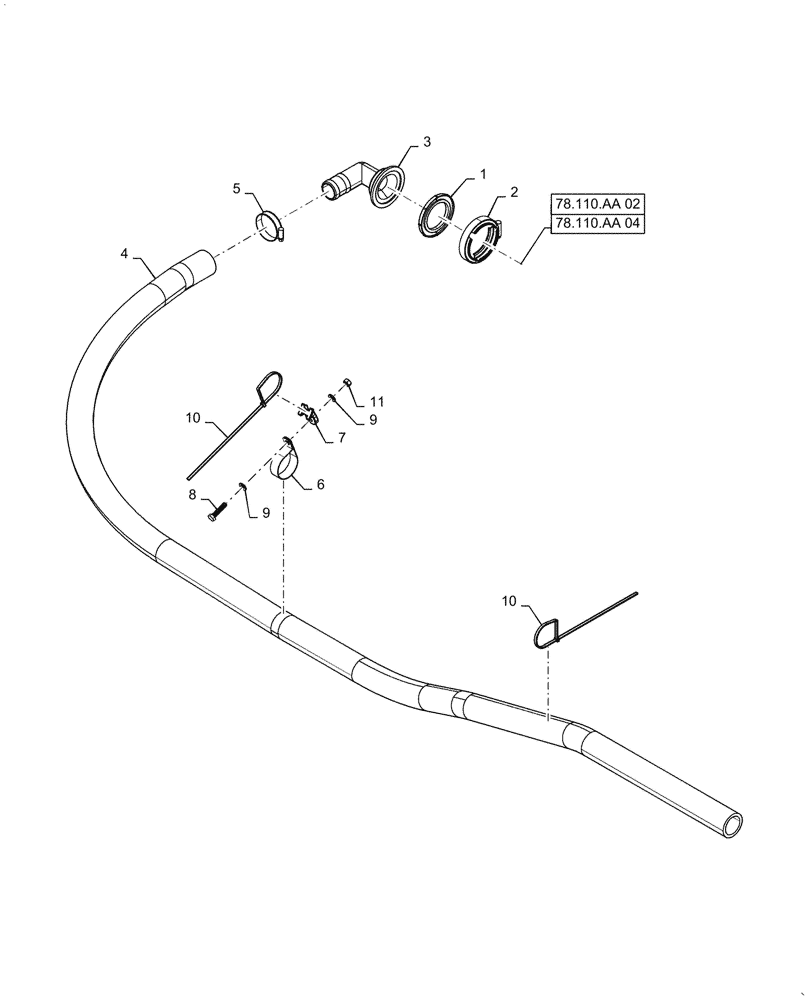

Запчасти Case IH PATRIOT 2250 (78.110.AA[07]) - PRODUCT TANK VENT ASN YGT042518 (78) - SPRAYING

1

47888706

GASKET,56mm ID x 83mm OD 5mm Thk

2" Flange

1шт.

2

BN313773

CLAMP,2" Full Port

Flange

1шт.

3

BN322505

FITTING,M220 FP Flanged Hosebarb

90°, 2" Flange x 1 1/2" HB

1шт.

4

BN309785

HOSE

Bulk, 1 1/2" EPDM

1шт.

5

BN310448

HOSE CLAMP

#28, SST

1шт.

6

87552805

CLAMP,50.8mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

7

84474186

BASE

Tie

1шт.

8

86980382

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8, Full Thd

DOR

1шт.

9

84365547

WASHER,8.4mm ID x 16mm OD x 2mm Thk

DOR

2шт.

10

BN570007

STRAP

14" Zip Tie

2шт.

11

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

DOR

1шт.
