(78.110.AA[05]) - PRODUCT TANK MOUNT ASSY

Запчасти Case IH PATRIOT 2250 (78.110.AA[05]) - PRODUCT TANK MOUNT ASSY (78) - SPRAYING

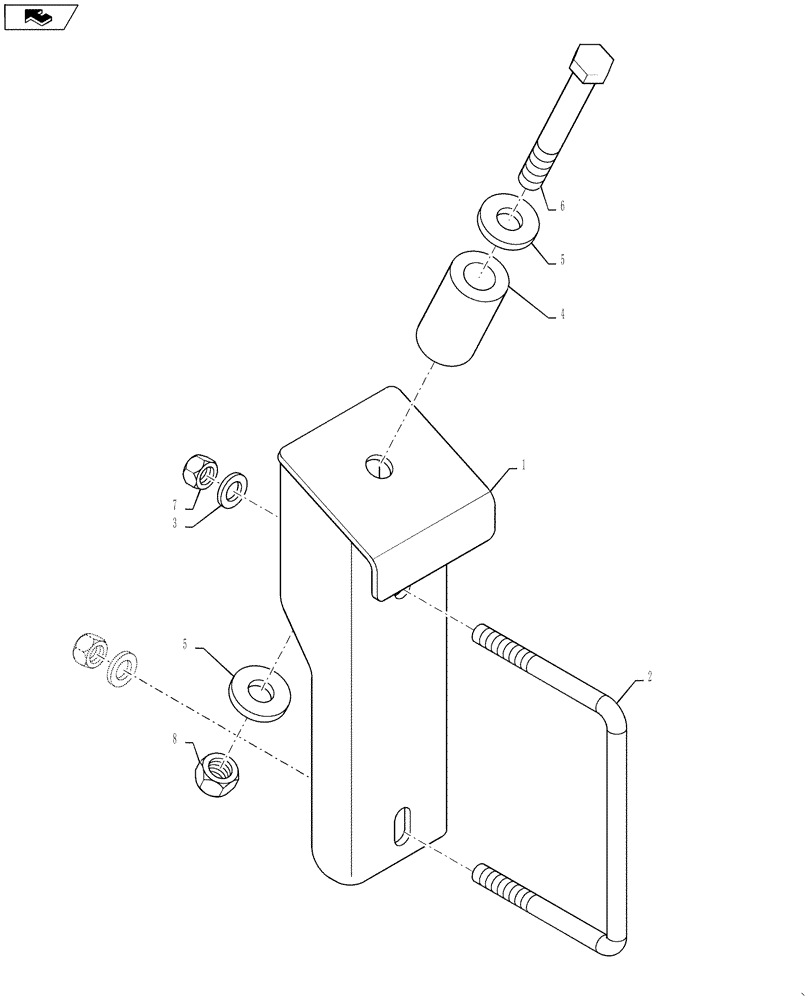

Схема запчастей Case IH PATRIOT 2250 - (78.110.AA[05]) - PRODUCT TANK MOUNT ASSY (78) - SPRAYING
5
6
3
home
4
8
1
2
7
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84288349

SUPPORT

Product Tank

1шт.

2

84264415

U-BOLT

M16 - 2, 166mm Deep, 254mm Wide

1шт.

3

87529306

WASHER,17.5mm ID x 30mm OD x 4mm Thk

HDN, DOR

2шт.

4

BN312850

SPRING

1" ID x 4" Long

1шт.

5

86981498

WASHER,21.8mm ID x 50.5mm OD x 8mm Thk

CST, DOR

2шт.

6

87342000

BOLT,Hex, M20 x 160mm, Cl 10.9

DOR

1шт.

7

86980517

NUT,Hex, M16 - 2, Cl 8.8, DOR

2шт.

8

86980518

NUT,Hex, M20 - 2.5, Cl 8.8, DOR

1шт.
