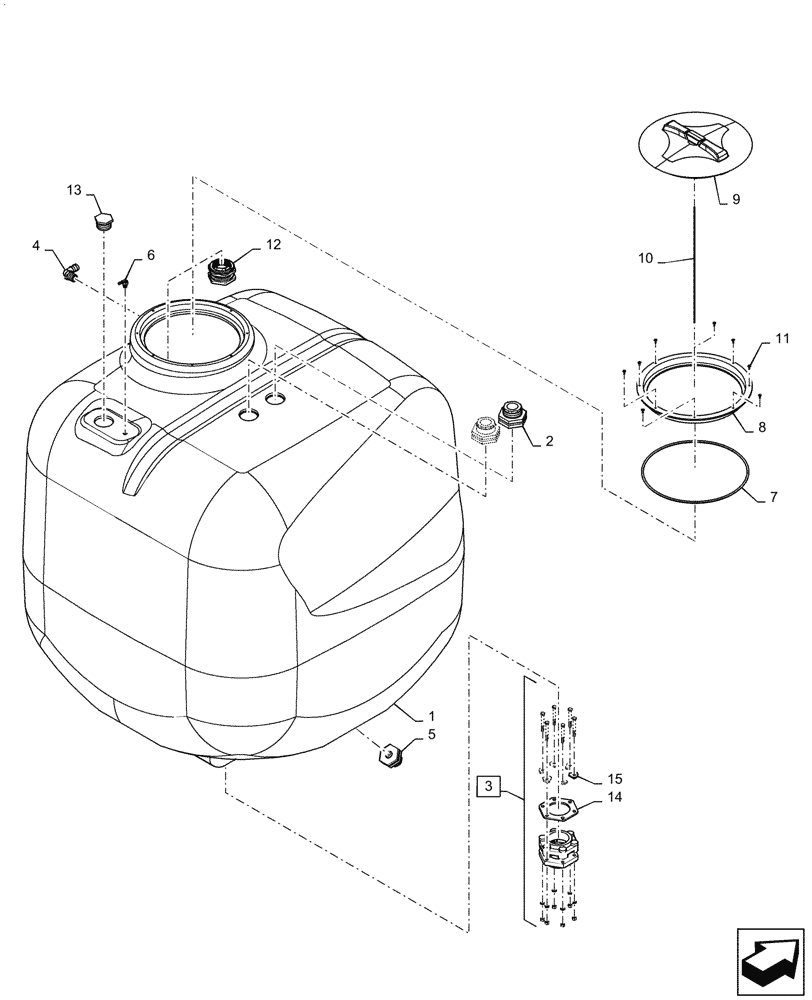

Запчасти Case IH PATRIOT 2250 (78.110.AA[04]) - PRODUCT TANK, 3" PLUMBING, BSN YGT042519 (78) - SPRAYING

1

47511850

TANK

Product, 660 Gallon, 3" Fill

1шт.

2

BN73733

FITTING

Top, Bulkhead, 1-1/2" FPT, Poly

2шт.

3

84142695

FLANGE,3" x 3" Threaded EPDM Flange

Sump, 3" NPT Tank Fitting, Incl 15, 16

1шт.

4

BN53475

ELBOW,90 Degree Elbow, 1" Male NPT x 1" Hose Barb, Poly

1шт.

5

BN2403685

BULKHEAD

Bottom, 1" NPT

1шт.

6

BN73412

ELBOW,90 Degree,1/4" MPT x 1/4" HB

1/4" NPT x 1/4" Hose Barb, Poly

1шт.

7

87558657

SEAL,7.5mm Thk x 415mm ID

Seal Lid

1шт.

8

87558658

RING

Lid

1шт.

9

87558663

CAP

Product Tank Lid

1шт.

10

47794421

ROPE

1/8" Nylon Braided

1шт.

11

87635532

BOLT

M5 x 20

8шт.

12

87559557

FLANGE,2" Poly Bulkhead EPDM Tank Fitting

Top, Bulkhead, 2" NPT

2шт.

13

BN73794

PLUG,2" Male NPT, Poly

1шт.

14

84142763

GASKET

Bulkhead, Outer

1шт.

15

84142766

GASKET

Bulkhead, Inner

6шт.
