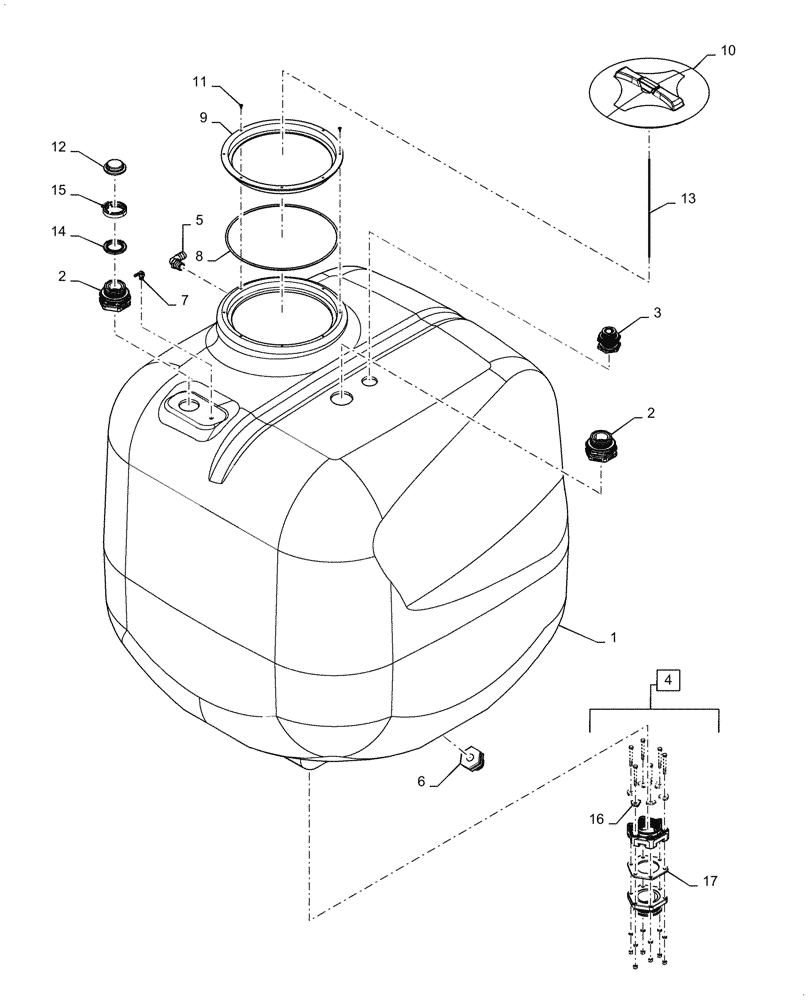

Запчасти Case IH PATRIOT 2250 (78.110.AA[04]) - PRODUCT TANK, 3" PLUMBING, ASN YGT042518 (78) - SPRAYING

1

47937657

TANK

Product, 660 Gallon, 3" Fill

1шт.

2

47917381

BULKHEAD,2" Flange

Fitting, 2" NPT

2шт.

3

47917382

BULKHEAD

Fitting, 1" Flange

1шт.

4

47826970

BULKHEAD

Fitting, 3" Flange, Incl 16, 17

1шт.

5

BN53475

ELBOW,90 Degree Elbow, 1" Male NPT x 1" Hose Barb, Poly

1шт.

6

BN2403685

BULKHEAD

Bottom, 1" NPT

1шт.

7

BN73412

ELBOW,90 Degree,1/4" MPT x 1/4" HB

1/4" NPT x 1/4" HB

1шт.

8

87558657

SEAL,7.5mm Thk x 415mm ID

Lid

1шт.

9

87558658

RING

Lid

1шт.

10

87558663

CAP

Product Tank Lid

1шт.

11

87635532

BOLT

M5 x 20

8шт.

12

BN322574

PLUG,2" Flange

Flange Cap

1шт.

13

47794421

ROPE

1/8" Nylon Braided

1шт.

14

47888706

GASKET,56mm ID x 83mm OD 5mm Thk

2.2" Flange

1шт.

15

BN313773

CLAMP,2" Full Port

Flange

1шт.

16

84142766

GASKET

Inner

6шт.

17

84142763

GASKET

Outer

1шт.
