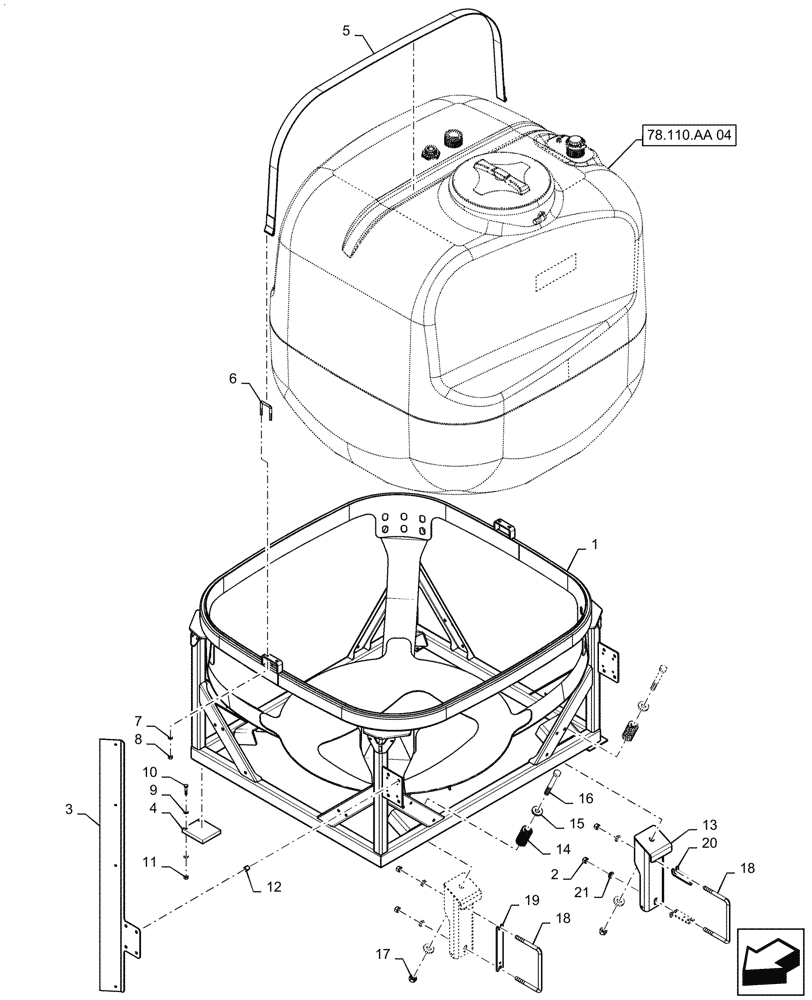

Запчасти Case IH PATRIOT 2250 (78.110.AA[03]) - PRODUCT TANK MOUNTING, 3" PLUMBING (78) - SPRAYING

1

47480573

SUPPORT

Product Tank

1шт.

2

86980517

NUT,Hex, M16 - 2, Cl 8.8, DOR

8шт.

3

47870382

MOUNT

Sight Gauge

1шт.

4

84288352

PAD

Product Tank Support

4шт.

5

84288354

SECURING STRAP

Product Tank

1шт.

6

BN319919

U-BOLT

2.06" ID x 2-3/4" x 3/8"

2шт.

7

87529232

WASHER,0.34" ID x 0.69" OD x 0.09" Thk

4шт.

8

87343665

NUT,Hex, 3/8" - 16, Gr 5, DOR

Hex

4шт.

9

87529298

WASHER,11mm ID x 21mm OD x 2mm Thk

CST, DOR

16шт.

10

86980404

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

8шт.

11

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

8шт.

12

47392472

SPACER

Sight Gauge

4шт.

13

84288349

SUPPORT

4шт.

14

BN312850

SPRING

Compression, 1" x 4"

4шт.

15

86981498

WASHER,21.8mm ID x 50.5mm OD x 8mm Thk

8шт.

16

87342000

BOLT,Hex, M20 x 160mm, Cl 10.9

4шт.

17

86980518

NUT,Hex, M20 - 2.5, Cl 8.8, DOR

4шт.

18

84264415

U-BOLT

M16, 10" x 6 1/2"

4шт.

19

47924000

SPACER

Front U Bolt

2шт.

20

84296062

SPACER

Frame Mount

4шт.

21

87529306

WASHER,17.5mm ID x 30mm OD x 4mm Thk

8шт.
