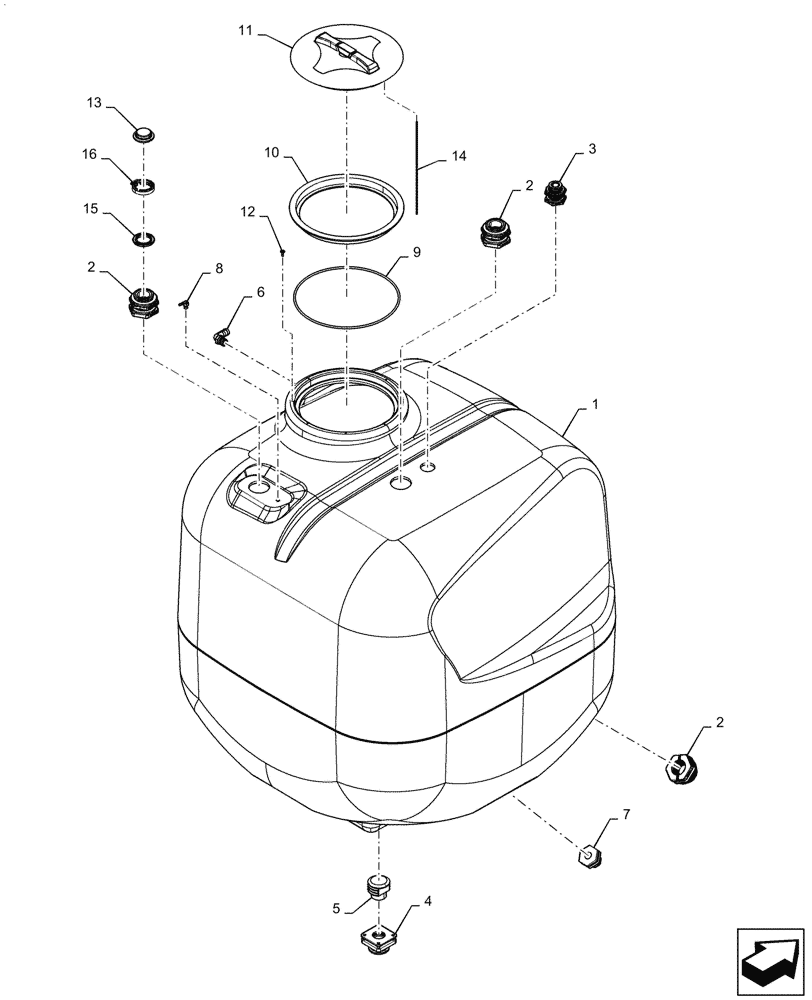

Запчасти Case IH PATRIOT 2250 (78.110.AA[02]) - PRODUCT TANK 2" PLUMBING ASN YGT042518 (78) - SPRAYING

1

47937654

TANK

Product, 660 Gallon, 2" Fill

1шт.

2

47917381

BULKHEAD,2" Flange

Fitting, 2" NPT

3шт.

3

47917382

BULKHEAD

Fitting, 1" Flanged

1шт.

4

47767468

BULKHEAD

2" Fitting, Tank

1шт.

5

BN309799

COVER

Vent, Anti - Vortex, 2"

1шт.

6

BN53475

ELBOW,90 Degree Elbow, 1" Male NPT x 1" Hose Barb, Poly

1шт.

7

BN2403685

BULKHEAD

1" NPT, Poly

1шт.

8

BN73412

ELBOW,90 Degree,1/4" MPT x 1/4" HB

1/4" NPT x 1/4" Hose Barb, Poly

1шт.

9

87558657

SEAL,7.5mm Thk x 415mm ID

Seal Lid

1шт.

10

87558658

RING

Lid

1шт.

11

87558663

CAP

Product Tank Lid

1шт.

12

87635532

BOLT

M5 x 20

8шт.

13

BN322574

PLUG,2" Flange

Flange

1шт.

14

47794421

ROPE

1/8, Nylon Braided

1шт.

15

47888706

GASKET,56mm ID x 83mm OD 5mm Thk

2" Flange

1шт.

16

BN313773

CLAMP,2" Full Port

Flange

1шт.
