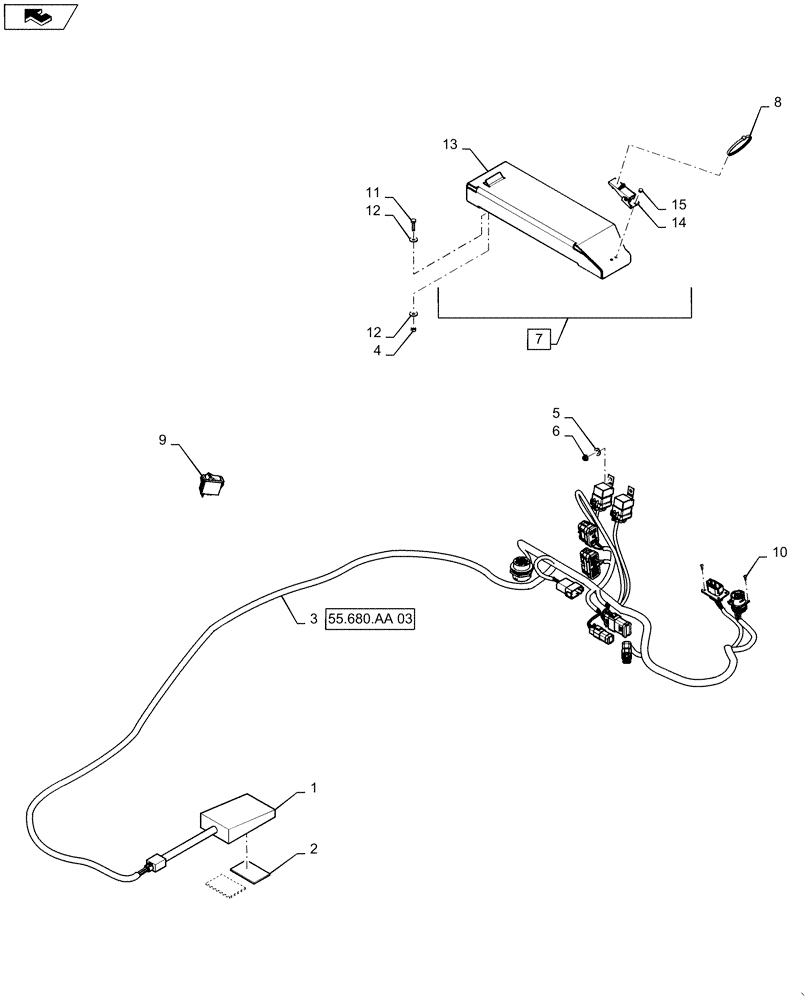

Запчасти Case IH PATRIOT 2250 (55.911.AC[01]) - ACCUGUIDE, CAB, ELECTRICAL COMPONENTS (55) - ELECTRICAL SYSTEMS

1

87646096

SWITCH ASSY

Foot, Remote Engage

1шт.

2

87646099

FASTENER

Velcro

2шт.

3

47563372

WIRE HARNESS

Autoguidance, Cab

1шт.

See 55.680.AA 03 For Service Parts

1шт.

4

86980513

NUT,Prev Torque, Hex, M6, 1mm Pitch, Cl 8, DOR

4шт.

5

87529315

WASHER,9mm ID x 17mm OD x 2mm Thk

2шт.

6

86981460

FLANGE NUT

M6, DOR

3шт.

7

84427582

BRACKET

Autoguidance Antenna, Incl 13 - 15

1шт.

8

289862C1

CABLE TIE,3/16" x 7"

1шт.

9

84485053

SWITCH

Autoguidance Disengage

1шт.

10

760-17113

SELF-TAP SCREW,Pan Hd, M3.5 x 13

4шт.

11

86980361

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

4шт.

12

87529302

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

8шт.

13

84427587

SUPPORT

Autoguidance Antenna

1шт.

14

87308870

LATCH

Under Center

1шт.

15

87308841

RIVET,Pop, 3.97mm OD x 10.79mm L

2шт.
