(55.911.AB[03]) - AIM COMMAND PRO TO GPS HARNESS

Запчасти Case IH PATRIOT 2250 (55.911.AB[03]) - AIM COMMAND PRO TO GPS HARNESS (55) - ELECTRICAL SYSTEMS

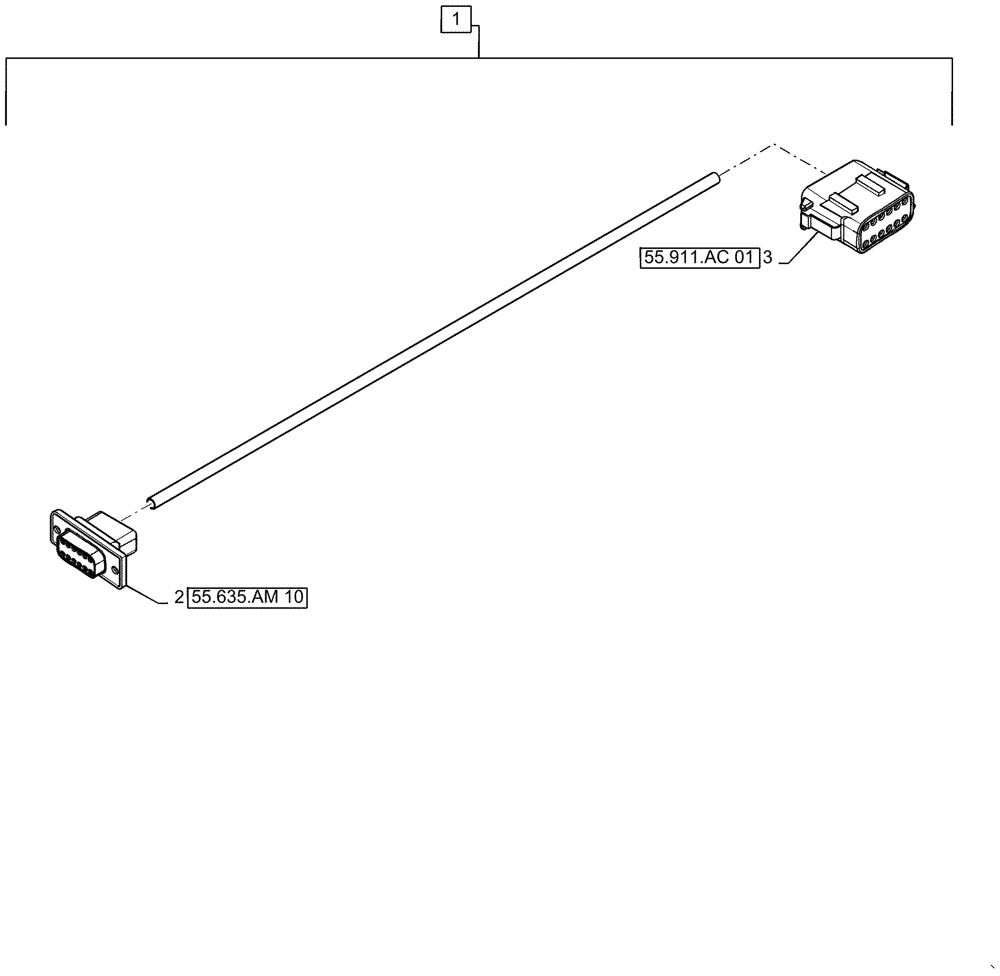

Схема запчастей Case IH PATRIOT 2250 - (55.911.AB[03]) - AIM COMMAND PRO TO GPS HARNESS (55) - ELECTRICAL SYSTEMS
55.635.am 10
2
1
3
55.911.ac 01
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47600698

WIRE HARNESS

Assy, GPS to Display, Incl 2, 3

1шт.

2

47635968

ELEC CONNECTOR

X-001, Display Connector

1шт.

2

47633439

WIRE CONNECTOR

X-001, 180 Degree Cable Clamp Kit

1шт.

2

47635970

TERMINAL

X-001, Female, Gold

3шт.

3

87700156

CONTACT HOUSING,Female, 12 Pole

X-002, GPS Connector

1шт.

3

87696954

TERMINAL,Female, Nickel, 0.35 - 1.50mm

X-002, Female, Nickel

3шт.

3

84807680

PLUG

X-002, Cavity Seal

9шт.

3

87705198

WEDGE

X-002, Wedge Lock

1шт.
