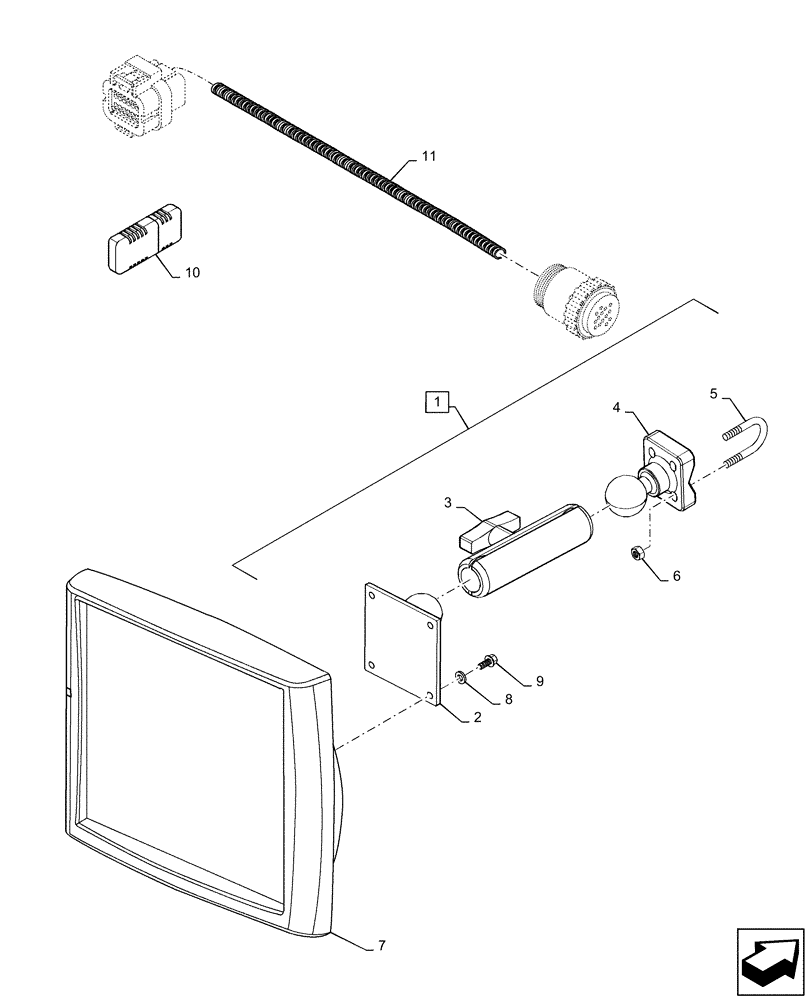

Запчасти Case IH PATRIOT 2250 (55.785.AF[03]) - PRO 700 CONTROL DISPLAY (55) - ELECTRICAL SYSTEMS

1

87386396

MOUNT

Mount Color Display, Incl 2 - 6

1шт.

2

87386398

SUPPORTING ARM

Ram Square Mount, 75 x 75

1шт.

3

87284257

ARM

Double Socket, 1.5" Ball

1шт.

4

87284259

PLATE

Base, Double U-Bolt

1шт.

5

86632541

U-BOLT,1/4” - 20, 1.75” L x 1” W

2шт.

6

7770

NUT,Hex, 1/4 - 20, Cl 5

4шт.

7

84546676

DISPLAY

Pro 700, Serial Range: -YGT044000

1шт.

7

47924442

DISPLAY

Pro 700, Start Serial: YGT044001

1шт.

8

892-11006

LOCK WASHER,M6

4шт.

9

86980360

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

4шт.

10

84398840

MEMORY CARD,4GB

USB Flash Drive, Serial Range: -YGT044000

1шт.

10

47962967

MEMORY CARD

USB Flash Drive, 4GB, Start Serial: YGT044001

1шт.

11

84189330

WIRE HARNESS

Pro 700 Display, Runs from Back of Display to Connector Below Insturment Cluster

1шт.
