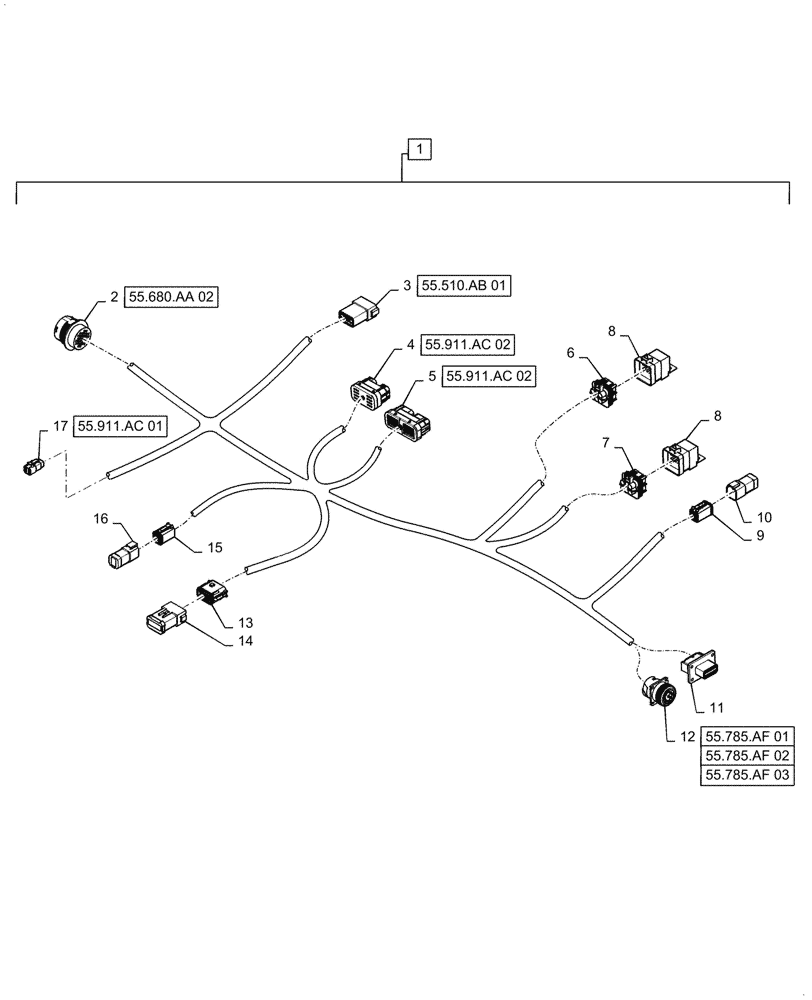

Запчасти Case IH PATRIOT 2250 (55.680.AA[03]) - AUTOGUIDANCE, CAB HARNESS (55) - ELECTRICAL SYSTEMS

1

47563372

WIRE HARNESS

Assy, Autoguidance, Cab, Incl 2 - 17

1шт.

2

87696944

ELEC CONNECTOR,Female, 31 Pole

XB-007F

1шт.

2

87271930

NUT

XB-007F, Panel

1шт.

2

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

XB-007F

12шт.

2

87680701

SEAL

XB-007F, Green

2шт.

3

225401C1

CONNECTOR, ELEC

X-052M, Male, Cab Interface

1шт.

3

87698541

LOCKING TAB,Wedge Lock, 12-Pin

X-052M, Wedge Lock

1шт.

3

87695623

ELEC. TERMINAL PIN

X-052M, Male

8шт.

3

225365C1

SOCKET

X-052M, Contact, Female, Gold

2шт.

4

198459A1

CONNECTOR, ELEC

X-700F, Female, Nav 1

1шт.

4

381419A1

SOCKET

X-700F, Contact, Female

8шт.

4

223953A1

SOCKET/RECEPTACLE

X-700F, Contact, Female, Gold

2шт.

4

381419A1

SOCKET

X-700F, Contact, Female

12шт.

5

244615A1

CONNECTOR, ELEC

X-701F, Female, Nav 2

1шт.

5

87696954

TERMINAL,Female, Nickel, 0.35 - 1.50mm

X-701F, Contact

1шт.

5

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

X-701F

1шт.

5

87696954

TERMINAL,Female, Nickel, 0.35 - 1.50mm

X-701F, Contact

3шт.

6

87697770

MULTIPOLE CONNECTOR,Female, 5 Pole

X-704F, LH, Steer Relay

1шт.

6

321836A1

ELEC CONNECTOR

X-704F, Lock, 5 Way, Green

1шт.

6

87680656

CONTACT

X-704F, Female

4шт.

6

87680701

SEAL

X-704F, Green

3шт.

7

87697770

MULTIPOLE CONNECTOR,Female, 5 Pole

X-705F, RH, Steer Relay

1шт.

7

321836A1

ELEC CONNECTOR

X-705F, Lock, 5 Way, Green

1шт.

7

87680656

CONTACT

X-705F, Female

4шт.

7

87680701

SEAL

X-705F, Green

3шт.

8

84179509

RELAY

Steer Relay

2шт.

9

87694112

ELEC CONNECTOR,Female, 6 Pole

X-710F, Splice

1шт.

9

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

X-710F

4шт.

9

87696954

TERMINAL,Female, Nickel, 0.35 - 1.50mm

X-710F, Contact

1шт.

10

87587623

CONTACT HOUSING

X-710M, 6W Splice Pack

1шт.

11

84146421

ELEC CONNECTOR

X-707M, Nav Diagnostic

1шт.

11

87696141

TERMINAL

X-707M, Contact, Male

3шт.

12

87516075

MULTIPOLE CONNECTOR,Male, 9 Pole

X-706M, Service Port

1шт.

12

87695623

ELEC. TERMINAL PIN

X-706M, Contact, Male

2шт.

12

223951A1

PIN

X-706M, Contact, Male, Gold

2шт.

13

87695592

CONTACT HOUSING,Female, 12 Pole

X-709F, Splice

1шт.

13

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

X-709F

5шт.

14

87269436

SOCKET/RECEPTACLE

X-709M, 12W Splice Pack

1шт.

15

87694112

ELEC CONNECTOR,Female, 6 Pole

X-702F, Splice

1шт.

15

87694150

LOCKING TAB,Wedge Lock

X-702F, Lock

1шт.

15

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

X-702F

3шт.

16

87587623

CONTACT HOUSING

X-702M, 6W Splice Pack

1шт.

17

87696138

ELEC CONNECTOR

X-708F, Female, Remote Engage

1шт.

17

87696149

ELEC CONNECTOR

X-708F, Wedge Lock

1шт.

17

87696954

TERMINAL,Female, Nickel, 0.35 - 1.50mm

X-708F, Contact

3шт.
