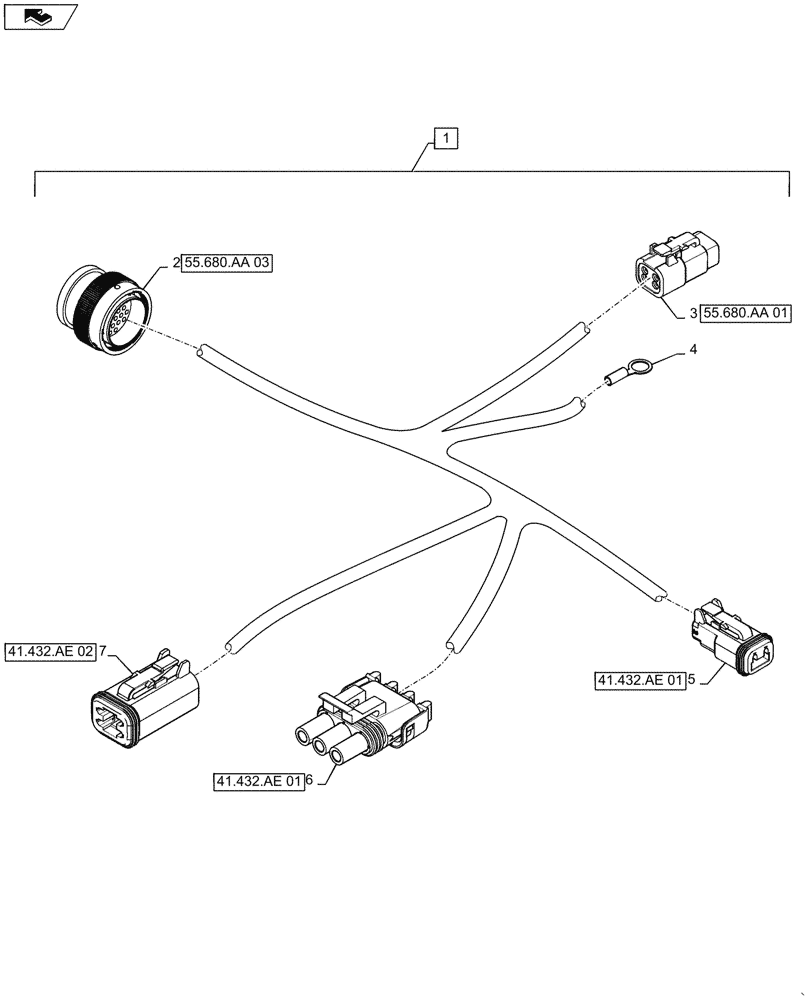

Запчасти Case IH PATRIOT 2250 (55.680.AA[02]) - AUTOGUIDANCE, FRAME HARNESS (55) - ELECTRICAL SYSTEMS

1

47566099

WIRE HARNESS

Assy, Autoguidance, Incl 2 - 7

1шт.

2

87696949

ELEC CONNECTOR

XB-007M, 31 Pin

1шт.

2

84068583

PLUG,12 - 16 Ga, White

XB-007M

19шт.

2

87695623

ELEC. TERMINAL PIN

XB-007M, Male Pin

10шт.

3

87696138

ELEC CONNECTOR

X-717F, 4 Way Receptical, Steering Sensor

1шт.

3

87696149

ELEC CONNECTOR

X-717F, Wedge Lock

1шт.

3

87696954

TERMINAL,Female, Nickel, 0.35 - 1.50mm

X-717F, Female Pin

4шт.

4

86982786

ELEC. TERMINAL PIN,14 - 16 SAE

C749F, Eyelet, Ground

1шт.

5

87695582

ELEC CONNECTOR,Female, 2 Pole

X-713F, Over Ride Valve

1шт.

5

84074638

LOCKING TAB,Locking Wedge, Green

X-713F, Wedge Lock

1шт.

5

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

X-713F, Female Pin

2шт.

6

87655394

WIRE CONNECTOR

X-715F, Over Ride Switch

1шт.

6

87692880

CABLE TERMINAL

X-715F, Female Pin

2шт.

6

87680701

SEAL

X-715F, Green Cavity

2шт.

7

87694153

CONTACT HOUSING,Female, 4 Cavities

X-714F, Steering Valve

1шт.

7

84074640

LOCKING TAB,Wedge Lock

X-714F, Wedge Lock

1шт.

7

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

X-714F, Female Pin

4шт.
