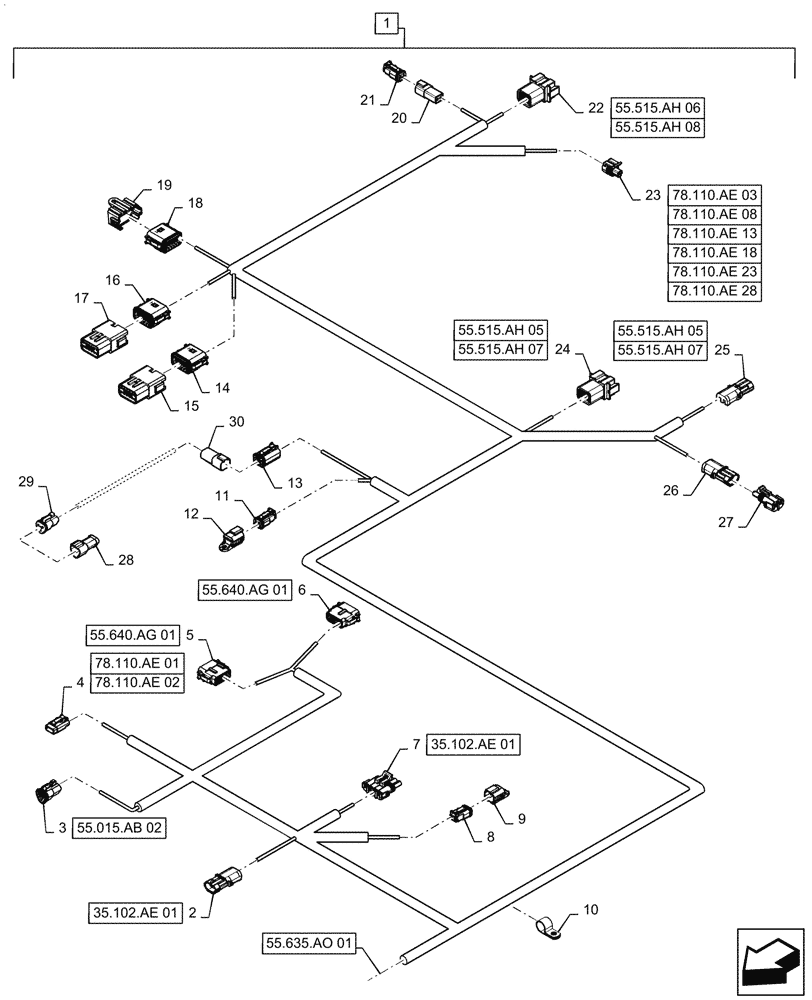

Запчасти Case IH PATRIOT 2250 (55.635.AO[02]) - PRODUCT CONTROL HARNESS, REAR (55) - ELECTRICAL SYSTEMS

1

47817188

WIRE HARNESS

Assy, Product Control, Incl 2 - 27

1шт.

2

87692877

MULTIPOLE CONNECTOR,Male, 2 Cavities

X-502M, Pump PSI On Switch

1шт.

2

87692880

CABLE TERMINAL

X-502M, Male, Tin, Pump PSI On Switch

2шт.

2

87680701

SEAL

X-502M, Cable, Green, Pump PSI On Switch

2шт.

3

87695580

ELEC CONNECTOR,Female, 3 Pole

X-505F, DX Product Interface

1шт.

3

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

X-505F, Stamped, DX Product Interface

3шт.

3

84074639

LOCKING TAB,Wedge Lock

X-505F, Wedge Lock, Green, DX Product Interface

1шт.

4

87696551

CONTACT HOUSING,Female, 3 Pole

X-506F, Flowmeter

1шт.

4

87696954

TERMINAL,Female, Nickel, 0.35 - 1.50mm

X-506F, Stamped, Flowmeter

3шт.

4

87705586

WEDGE

X-506F, Lock, Flowmeter

1шт.

5

87700156

CONTACT HOUSING,Female, 12 Pole

X-552F, Product Node A Keying

1шт.

5

87696954

TERMINAL,Female, Nickel, 0.35 - 1.50mm

X-552F, Stamped, Product Node A Keying

8шт.

5

223953A1

SOCKET/RECEPTACLE

X-552F, Female, Gold, Stamped, Product Node A Keying

1шт.

5

84807680

PLUG

X-552F, Sealing, Red, Product Node A Keying

4шт.

5

87705198

WEDGE

X-552F, Lock, Orange, Product Node A Keying

1шт.

6

87705101

MULTIPOLE CONNECTOR,Female, 12 Pole

X-553F, Product Node B Keying

1шт.

6

87697866

TERMINAL,Female, Nickel, 0.50 - 1.00mm

X-553F, Female, Nickel, Solid, Product Node B Keying

3шт.

6

87696954

TERMINAL,Female, Nickel, 0.35 - 1.50mm

X-553F, Stamped, Product Node B Keying

6шт.

6

84807680

PLUG

X-553F, Sealing, Red, Product Node B Keying

3шт.

6

87705198

WEDGE

X-553F, Lock, Orange, Product Node B Keying

1шт.

7

87692817

ELEC CONNECTOR

X-507F, 4 Cavity, Product Pump

1шт.

7

87692856

CABLE TERMINAL

X-507F, Female, Tin, Product Pump

4шт.

7

87680702

SEAL

X-507F, Cable, Violet, Product Pump

4шт.

8

87695582

ELEC CONNECTOR,Female, 2 Pole

X-504FA, Pump Clutch

1шт.

8

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

X-504FA, Female, Nickel, Stamped, Pump Clutch

1шт.

8

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

X-504FA, Stamped, Pump Clutch

1шт.

8

87695649

ELEC CONNECTOR,Locking, Green

X-504FA, Wedge, Pump Clutch

1шт.

9

84391159

WIRE CONNECTOR

X-504M

1шт.

10

87564736

CLAMP,14.3mm, Insul, M6 Bolt

Harness

1шт.

11

87695582

ELEC CONNECTOR,Female, 2 Pole

X-501F, Control Power

1шт.

11

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

X-501F, Stamped, Control Power

2шт.

11

87695649

ELEC CONNECTOR,Locking, Green

X-501F, Wedge, Control Power

1шт.

12

84391159

WIRE CONNECTOR

X-501M

1шт.

13

87694153

CONTACT HOUSING,Female, 4 Cavities

X-210F, Can Buss Interface

1шт.

13

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

X-210F, Stamped, Can Buss Interface

4шт.

13

87694146

ELEC CONNECTOR,Locking, Green

X-210F, Wedge, Can Buss Interface

1шт.

14

87696075

ELEC CONNECTOR

X-601F, Female, 12 Cavity, Boom Wire Splice Pack

1шт.

14

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

X-601F, Stamped, Boom Wire Splice Pack

12шт.

14

87695651

LOCKING TAB,Wedge Lock

X-601F, Lock, Green, Boom Wire Splice Pack

1шт.

15

87587629

ELEC CONNECTOR

X-601M, Buss Bar, Boom Wire Splice Pack

1шт.

16

87696075

ELEC CONNECTOR

X-607F, Female, 12 Cavity, Boom Wire Splice Pack

1шт.

16

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

X-607F, Stamped, Boom Wire Splice Pack

9шт.

16

84068583

PLUG,12 - 16 Ga, White

X-607F, Sealing, Boom Wire Splice Pack

3шт.

16

87695651

LOCKING TAB,Wedge Lock

X-607F, Lock, Green, Boom Wire Splice Pack

1шт.

17

87587629

ELEC CONNECTOR

X-607M, Buss Bar, Boom Wire Splice Pack

1шт.

18

87696075

ELEC CONNECTOR

X-522F, Female, 12 Cavity, Prod / Aim Interface

1шт.

18

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

X-522F, Stamped, Prod / Aim Interface

9шт.

18

84068583

PLUG,12 - 16 Ga, White

X-522F, Sealing, Prod / Aim Interface

3шт.

18

87695651

LOCKING TAB,Wedge Lock

X-522F, Lock, Green, Prod / Aim Interface

1шт.

19

84391169

CAP,Male, 2 Pins

X-522M, Cap, Prod / Aim Interface

1шт.

20

87695584

CONTACT HOUSING,Male, 2 Cavities

X-511M, RH, Boom Section #7

1шт.

20

87695623

ELEC. TERMINAL PIN

X-511M, Male, Nickel, Stamped, RH, Boom Section #7

1шт.

20

84068583

PLUG,12 - 16 Ga, White

X-511M, Sealing, RH, Boom Section #7

1шт.

20

87577731

CONTACT HOUSING,2 Pole

X-511M, Wedge Lock, Green, RH, Boom Section #7

1шт.

21

87695582

ELEC CONNECTOR,Female, 2 Pole

X-511F, Cap, RH, Boom Section #7

1шт.

21

84068583

PLUG,12 - 16 Ga, White

X-511F, Cap, RH, Boom Section #7

2шт.

22

225320C1

ELEC CONNECTOR

X-510M, Male, 8 Cavity, RH, Boom Interface

1шт.

22

87695623

ELEC. TERMINAL PIN

X-510M, Male, Nickel, Stamped, RH, Boom Interface

6шт.

22

84068583

PLUG,12 - 16 Ga, White

X-510M, Sealing, Stamped, RH, Boom Interface

1шт.

22

84806919

PLUG,Wedge Lock

X-510M, Wedge Lock, Green, RH, Boom Interface

1шт.

23

84078681

WIRE CONNECTOR,Female

X-515F, 3 Cavity, Boom PSI

1шт.

23

87688852

ELEC. TERMINAL PIN

X-515F, Female, Tin, Boom PSI

1шт.

23

87693328

TERMINAL

X-515F, Female, Tin, Boom PSI

2шт.

24

225320C1

ELEC CONNECTOR

X-509M, Male, 8 Cavity, LH, Boom Interface

1шт.

24

87695623

ELEC. TERMINAL PIN

X-509M, Male, Nickel, Stamped, LH, Boom Interface

6шт.

24

84068583

PLUG,12 - 16 Ga, White

X-509M, Sealing, LH, Boom Interface

1шт.

24

225322C1

WEDGE

X-509M, Lock, Green, LH, Boom Interface

1шт.

25

87692877

MULTIPOLE CONNECTOR,Male, 2 Cavities

X-514M, Boom PSI Switch

1шт.

25

87692882

ELEC. TERMINAL PIN

X-514M, Male, Tin, Boom PSI Switch

1шт.

25

87692880

CABLE TERMINAL

X-514M, Male, Tin, Boom PSI Switch

1шт.

25

87680701

SEAL

X-514M, Cable, Green, Boom PSI Switch

2шт.

26

87692877

MULTIPOLE CONNECTOR,Male, 2 Cavities

X-516M, Boom PSI Switch

1шт.

26

87692882

ELEC. TERMINAL PIN

X-516M, Male, Tin, Boom PSI Switch

2шт.

26

87680701

SEAL

X-516M, Cable, Green, Boom PSI Switch

2шт.

27

87692855

CONTACT HOUSING,Male, 2 Cavities

X-516F, Boom PSI Shorting Plug

1шт.

27

87692856

CABLE TERMINAL

X-516F, Female, Tin, Boom PSI Shorting Plug

2шт.

27

87680701

SEAL

X-516F, Cable, Green, Boom PSI Shorting Plug

2шт.

28

84058092

CONTACT HOUSING,120 Ohm Resistor

X-210B, Terminator, Adaptor Harness

1шт.

29

87695580

ELEC CONNECTOR,Female, 3 Pole

X-210A, Terminator Interface, Adaptor Harness

1шт.

29

84147090

LOCKING TAB,Wedge Lock

X-210A, Lock, Terminator Interface, Adaptor Harness

1шт.

30

87694154

CONTACT HOUSING,Male, 4 Pole

X-210M, Canbuss Interface, Adaptor Harness

1шт.

30

87694145

ELEC CONNECTOR

X-210M, Wedge Lock, Canbuss Interface, Adaptor Harness

1шт.
