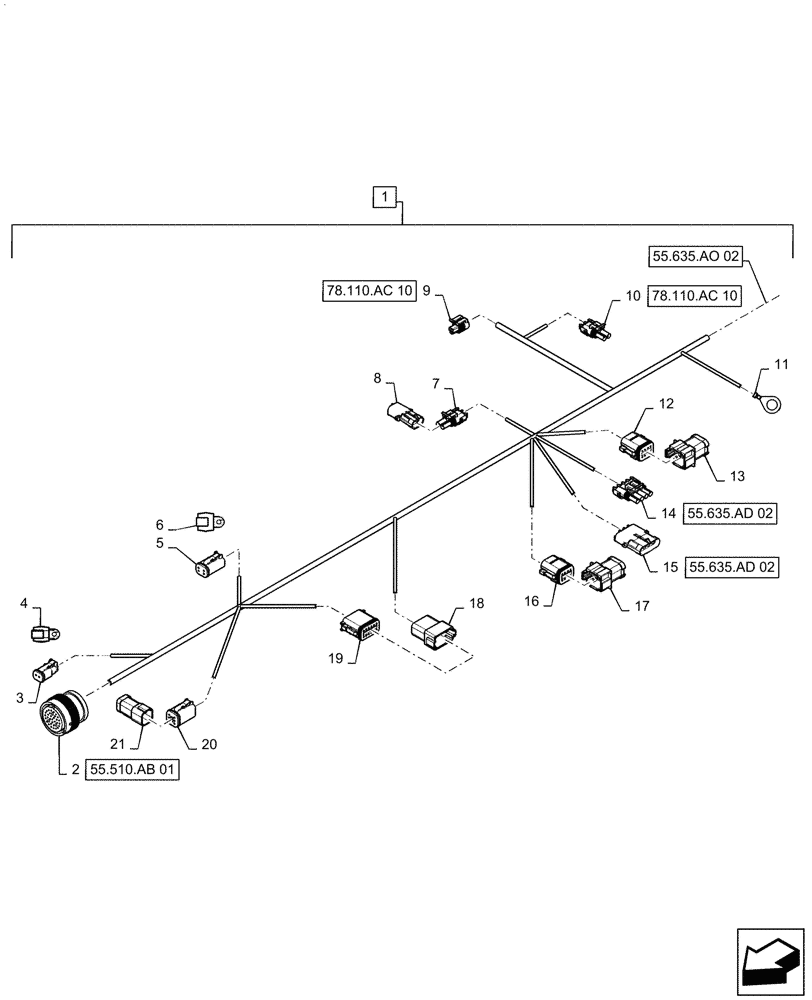

Запчасти Case IH PATRIOT 2250 (55.635.AO[01]) - PRODUCT CONTROL HARNESS, FRONT (55) - ELECTRICAL SYSTEMS

1

47817188

WIRE HARNESS

Complete, Product Control, Incl 2 - 21

1шт.

2

380841A1

TERMINAL CONNECTOR

XB-5F, Female, 35 Cavity, Bulkhead, Product to Cab

1шт.

2

87696954

TERMINAL,Female, Nickel, 0.35 - 1.50mm

XB-5F, Stamped, Bulkhead, Product to Cab

12шт.

2

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

XB-5F, Stamped, Bulkhead, Product to Cab

1шт.

2

84068583

PLUG,12 - 16 Ga, White

XB-5F, Sealing, Bulkhead, Product to Cab

1шт.

2

84807680

PLUG

XB-5F, Sealing, Red, Bulkhead, Product to Cab

13шт.

3

87695582

ELEC CONNECTOR,Female, 2 Pole

X-500F, Control Power

1шт.

3

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

X-500F, Stamped, Control Power

2шт.

3

87695649

ELEC CONNECTOR,Locking, Green

X-500F, Wedge, Control Power

1шт.

4

84391159

WIRE CONNECTOR

X-500M, Cap, Control Power

1шт.

5

87694153

CONTACT HOUSING,Female, 4 Cavities

X-209F, CAN Buss Interface

1шт.

5

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

X-209F, Stamped, CAN Buss Interface

4шт.

5

87694146

ELEC CONNECTOR,Locking, Green

X-209F, Wedge, CAN Buss Interface

1шт.

6

84391166

WIRE CONNECTOR,Male, 4 Pins

X-209M, CAN Buss Interface

1шт.

7

87692877

MULTIPOLE CONNECTOR,Male, 2 Cavities

X-503M, Acc Power

1шт.

7

87692882

ELEC. TERMINAL PIN

X-503M, Male, Tin, Acc Power

2шт.

7

87680701

SEAL

X-503M, Cable, Green, Acc Power

2шт.

8

87692855

CONTACT HOUSING,Male, 2 Cavities

X-503F, Cap, Acc Power

1шт.

8

87686742

PLUG

X-503F, Cavity, Green, Acc Power Cap

2шт.

9

84078681

WIRE CONNECTOR,Female

X-519F, 3 Cavity, Sparge PSI

1шт.

9

87688852

ELEC. TERMINAL PIN

X-519F, Female, Tin, Sparge PSI

1шт.

9

87693328

TERMINAL

X-519F, Female, Tin, Sparge PSI

2шт.

10

87692855

CONTACT HOUSING,Male, 2 Cavities

X-518F, Sparge Valve

1шт.

10

87692856

CABLE TERMINAL

X-518F, Female, Tin, Sparge Valve

1шт.

10

87680701

SEAL

X-518F, Cable, Green, Sparge Valve

2шт.

11

84301910

TERMINAL

G1-PF, M12, Chassis Ground

1шт.

12

87700325

ELEC CONNECTOR,Female, 8 Cavities

X-555F, Female, 8 Cavity, Splice Pack

1шт.

12

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

X-555F, Stamped, Splice Pack

4шт.

12

84068583

PLUG,12 - 16 Ga, White

X-555F, Sealing, Splice Pack

4шт.

12

84806312

LOCKING TAB,Wedge Lock

X-555F, Wedge Lock, Green, Splice Pack

1шт.

13

87587627

CONTACT HOUSING

X-555M, Buss Bar, 8 Cavity, Splice Pack

1шт.

14

87692817

ELEC CONNECTOR

X-517F, 4 Cavity, Remote / Aim

1шт.

14

87692856

CABLE TERMINAL

X-517F, Female, Tin, Remote / Aim

4шт.

14

87680701

SEAL

X-517F, Cable, Green, Remote / Aim

4шт.

15

245487C1

ELEC CONNECTOR,Male, 4 Pin

X-520M, Remote / Aim Out

1шт.

15

87692880

CABLE TERMINAL

X-520M, Male, Tin, Remote / Aim Out

4шт.

15

87680701

SEAL

X-520M, Cable, Green, Remote / Aim Out

4шт.

15

87686742

PLUG

X-520M, Cavity, Green, Remote / Aim Out

2шт.

16

87700325

ELEC CONNECTOR,Female, 8 Cavities

X-551F, Female, 8 Cavity, Splice Pack

1шт.

16

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

X-551F, Stamped, Splice Pack

6шт.

16

225321C1

WEDGE

X-551F, Wedge Lock, Green, Splice Pack

1шт.

17

87270259

ELEC CONNECTOR

X-551M, Buss Bar, 8 Cavity, Splice Pack

1шт.

18

87695724

ELEC CONNECTOR,Male, 12 Pole

X-523M, Boom Interface

1шт.

18

87695623

ELEC. TERMINAL PIN

X-523M, Male, Nickel, Stamped, Boom Interface

11шт.

18

84068583

PLUG,12 - 16 Ga, White

X-523M, Sealing, Boom Interface

1шт.

18

87698541

LOCKING TAB,Wedge Lock, 12-Pin

X-523M, Wedge Lock, Green, Boom Interface

1шт.

19

87695592

CONTACT HOUSING,Female, 12 Pole

X-523F, Boom Interface

1шт.

19

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

X-523F, Boom Interface

9шт.

19

84068583

PLUG,12 - 16 Ga, White

X-523F, Sealing, Boom Interface

3шт.

19

87695651

LOCKING TAB,Wedge Lock

X-523F, Lock, Boom Interface

1шт.

20

87694109

ELEC CONNECTOR

X-757F, Female, 6 Cavity, Splice Pack

1шт.

20

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

X-757F, Stamped, Splice Pack

6шт.

21

87587623

CONTACT HOUSING

X-757M, Cap, Buss Bar, Splice Pack

1шт.
