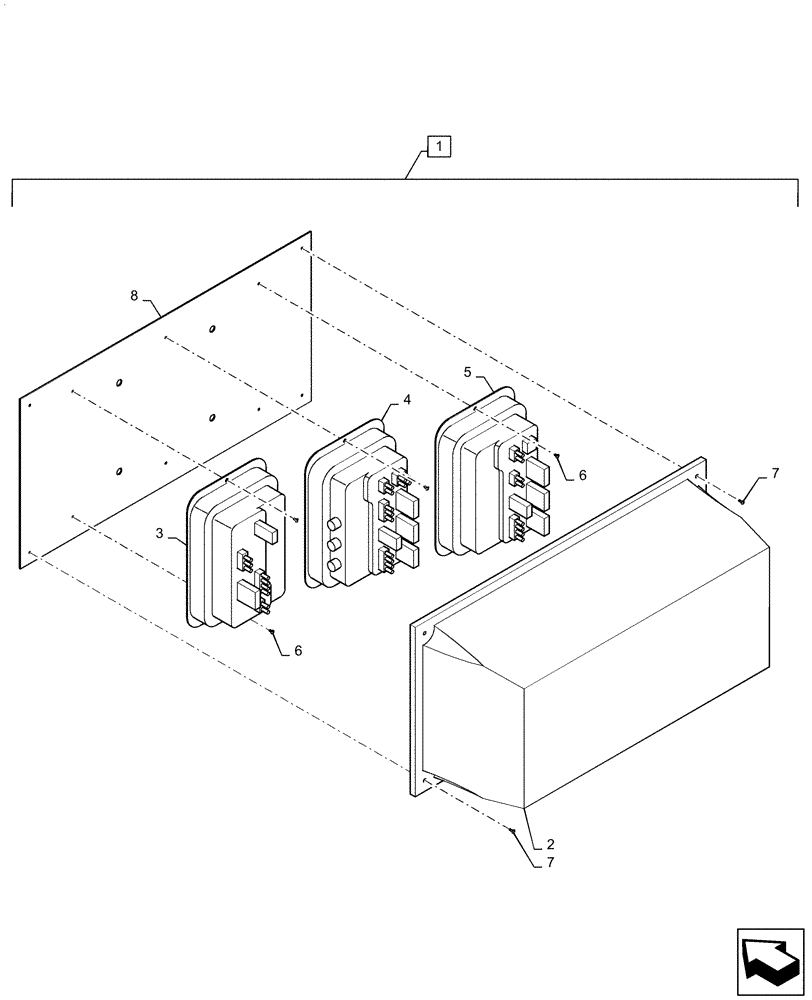

Запчасти Case IH PATRIOT 2250 (55.635.AN[02]) - AIM COMMAND, CONTROL MODULE (55) - ELECTRICAL SYSTEMS

1

84230046

MODULE

Assy, Aim Command, Incl 2 - 8

1шт.

2

87397540

COVER

Aim Command Modules, Rear Mount

1шт.

3

87271842

MODULE

Aim Command Master

1шт.

3

87271842R

REMAN-MODULE

Aim Command Master

1шт.

3

87271842C

CORE-MODULE

Return Number

1шт.

4

87271843

MODULE

Slave, Aim Command

1шт.

4

87271843R

REMAN ELECT CONTROL

Slave, Aim Command

1шт.

4

87271843C

CORE-ELECTRONIC CONT

Return Number

1шт.

5

84230038

MODULE

PWM Pressure Control

1шт.

5

84230038R

REMAN-MODULE

PWM Pressure Control Module

1шт.

5

84230038C

CORE-MODULE

Return Number

1шт.

6

BN314296

SCREW

M3 x 8mm, Module Mounting

6шт.

7

BN314297

SCREW

M3 x 8mm, Cover Mounting

4шт.

8

BN310936

MOUNTING PLATE

Aim Command Modules

1шт.
